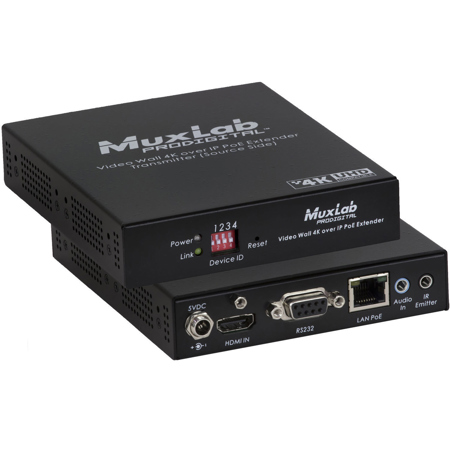

Muxlab 4K UHD HDMI Video Wall Over IP PoE Transmitter

SKU: ML500759TX MFR: 500759-TX
Earn VIP Reward Points

Key Features

  • Create stunning video walls with this 4K UHD HDMI over IP transmitter, perfect for digital signage.
  • Supports HDMI 1.4 protocol, ensuring compatibility with Blu-Ray players, PCs, and other devices.
  • Transmit high-quality video up to 330 feet using Cat5e/6 cable with this reliable HDMI transmitter.
  • Experience minimal latency (16-33ms) for seamless video wall performance with this Muxlab transmitter.
  • Power your video solution using PoE (IEEE 802.3af), simplifying installation and reducing cable clutter.
  • Manage your display setup with RS232 and IR control, offering flexibility in video wall configurations.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$32.99

2 Year

$69.99

3 Year

$94.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500759-TX Specifications

  • Environment

    HDMI 1.4

  • Devices

    Blu-Ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Bandwidth

    300MHz

  • Bandwidth

    300MHz

  • Signal

    HDMI 1.4 protocol

  • Connectors

    One (1) HDMI receptacle
    One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    Two (2) 3.5mm jacks for IR emitter (on TX)/sensor (on RX)
    Two (2) 3.5mm jacks for audio insert (on TX)/audio extract (on RX)
    One (1) DB9 for the RS232
    Four (4) DIP Switches for device ID addressing

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end
    Cat5e/6: 330' (100m) up to 4K @ 30Hz

  • Latency

    Typical one (1) Frame (16ms), maximum 2 frames (33ms)

  • Compression

    Proprietary Compression

  • Network Requirement

    1000BaseT with Jumbo Frame

  • IR Frequency

    38 to 56KHz (IR Emitter and IR Sensor sold separately)

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    One (1) Cat 5e/6 or better twisted pair cables required

  • Power Source

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    2.85Watt

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.40 x 5.08 x 1" (112 x 129 x 25mm)

  • Weight

    1.5 lbs (680.38g)

  • UPC Code

    00627699907597

About Muxlab 500759-TX

The Video Wall 4K over IP PoE Transmitter allows HDMI equipment supporting up to 4K @ 30Hz or 1080p at 60Hz resolution to be connected and extended to create a Video Wall of user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth. Each Transmitter (500759-TX) can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch.

The Transmitter support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch. Comes with one (1) Transmitter. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications. For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet switch must have Gigabit ports, DHCP server capability, IGMP communications protocol and support Jumbo Frames. Muxlab recommends using the Cisco SG300 Series Managed Switches.

The Muxlab Pro Digital Network Controller (500811) is available to simplify configuration and control and allows for third party smartphone and tablet management.

Muxlab 500759-TX Features

  • Configure a Video Wall array with 100's of displays, depending on network bandwidth
  • Supports up to 4K @ 30Hz and 1080p @ 60Hz
  • Visually lossless video (1 frame latency)
  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Transmission up to 330' (100m) over Cat5e/6
  • Supports audio insert (TX)
  • Supports RS232 and IR transmission for remote control
  • PoE powered
  • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Create stunning video walls with this 4K UHD HDMI over IP transmitter, perfect for digital signage.
  • Supports HDMI 1.4 protocol, ensuring compatibility with Blu-Ray players, PCs, and other devices.
  • Transmit high-quality video up to 330 feet using Cat5e/6 cable with this reliable HDMI transmitter.
  • Experience minimal latency (16-33ms) for seamless video wall performance with this Muxlab transmitter.
  • Power your video solution using PoE (IEEE 802.3af), simplifying installation and reducing cable clutter.
  • Manage your display setup with RS232 and IR control, offering flexibility in video wall configurations.

What's in the box:

  • Muxlab 4K UHD HDMI Video Wall Over IP PoE Transmitter
  • Muxlab 3 Year Limited Warranty
