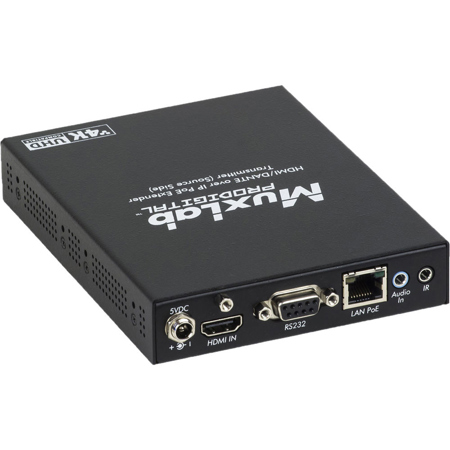

Muxlab 4K UHD HDMI/Dante Over IP PoE Transmitter

SKU: ML500759TXD MFR: 500759-TX-DANTE
Earn VIP Reward Points

Key Features

  • Transmit pristine 4K UHD HDMI video and 2CH Dante audio over IP networks using this transmitter.
  • Experience seamless connectivity with Blu-ray players, PCs, and Dante-supported audio equipment.
  • Utilize HDMI 2.0b and HDCP 2.2 support for high-quality signal transmission up to 330 feet.
  • Enjoy low latency (16-33ms) with JPG2000 compression, perfect for real-time applications.
  • Simplify setup with PoE (IEEE 802.3af) support; no external power supply is typically needed.
  • Manage devices easily via RS232, directional IR, and DIP switches for device ID addressing.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500759-TX-DANTE Specifications

  • Environment

    HDMI 2.0b and 2CH Dante Audio

  • Devices

    Blu-Ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI, and Dante supported audio gear

  • Bandwidth

    300MHz

  • Bandwidth

    300MHz

  • Signal

    HDMI 2.0b, HDCP 2.2, and 2CH Dante

  • Connectors

    One (1) HDMI receptacle
    One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    One (1) 3.5mm jack for Directional IR emitter
    One (1) 3.5mm jack for 2CH audio insert
    One (1) DB9 for the RS232
    Four (4) DIP Switches for device ID addressing

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end
    Cat5e/6: 330' (100m) up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)

  • Latency

    Typical one (1) Frame (16ms), maximum 2 frames (33ms)

  • Compression

    JPG2000

  • Network Requirement

    1 Gig Ethernet with IGMP, Jumbo Frames and PoE

  • IR Frequency

    38 to 56KHz (IR Emitter and IR Sensor sold separately)

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    One (1) Cat 5e/6 or better twisted pair cables required

  • Power Source

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    6 W

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.40 x 5.67 x 1" (112 x 144 x 25mm)

  • Weight

    1.7 lbs (771.1g)

  • UPC Code

    627699917596

About Muxlab 500759-TX-DANTE

The HDMI/Dante over IP PoE Transmitter, UHD-4K allows HDMI video equipment supporting up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0), plus Dante audio equipment to be connected and extended to create an independently distributed audio and video network. 100's of Single Displays and Video Wall Displays of user configurable size (X by Y) may be supported, depending on network bandwidth. Audio can be independently distributed to 100's of Dante supported audio devices. Supports HDR at up to 4K @ 30Hz (4:2:2).

The unit can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch, and supports PoE (PD) when powered by a PoE (PSE) Ethernet Switch. An IR Emitter or IR Sensor, if required, may be purchased separately for IR based remote control applications.

The Muxlab Pro Digital Network Controller (500811) and MuxControl App are available to simplify configuration and management of this and other Muxlab AV over IP networked devices via Smartphone and Tablet.

Muxlab 500759-TX-DANTE Features

  • Configure a Video Wall array with 100's of displays, depending on network bandwidth
  • Supports video up to 4K @ 30Hz (4:4:4), 4K @ 60Hz (4:2:0) and HDR at 4K @ 30Hz (4:2:2)
  • Visually lossless video (1 frame latency)
  • Distribute audio to 100's of Dante supported devices
  • Supports 2CH audio insert
  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Transmission up to 330' (100m) over Cat5e/6
  • RS232 and Directional IR for remote control of end-devices
  • PoE powered
  • HDMI AV managed via Pro Digital Network Controller (500811), MuxControl App and 3rd Party Control Apps
  • Dante Audio managed by Audinate software

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Transmit pristine 4K UHD HDMI video and 2CH Dante audio over IP networks using this transmitter.
  • Experience seamless connectivity with Blu-ray players, PCs, and Dante-supported audio equipment.
  • Utilize HDMI 2.0b and HDCP 2.2 support for high-quality signal transmission up to 330 feet.
  • Enjoy low latency (16-33ms) with JPG2000 compression, perfect for real-time applications.
  • Simplify setup with PoE (IEEE 802.3af) support; no external power supply is typically needed.
  • Manage devices easily via RS232, directional IR, and DIP switches for device ID addressing.

What's in the box:

  • Muxlab 4K UHD HDMI/Dante Over IP PoE Transmitter
  • Muxlab 3 Year Limited Warranty
