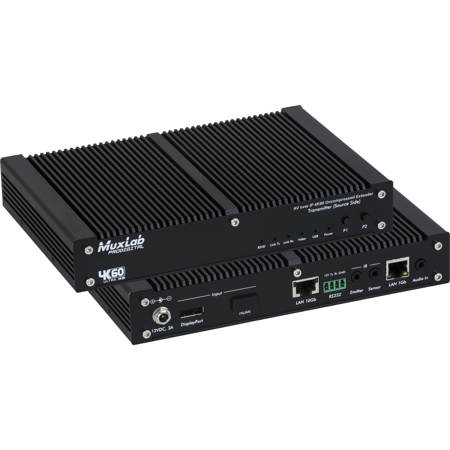

Muxlab 4K UHD AV Over IP Uncompressed UTP Transmitter, US

SKU: ML500760TXUS MFR: 500760-TX-US
Earn VIP Reward Points

Key Features

  • Experience zero latency with this 4K UHD AV Over IP Transmitter, ensuring real-time performance.
  • Achieve stunning video quality with uncompressed transmission up to 4K/60 (4:2:0) via this transmitter.
  • Extend HDMI signals up to 330ft using Cat5e/6 cable, perfect for large installations with this device.
  • This Muxlab transmitter supports HDMI 2.0 and DisplayPort 1.2a, offering broad device compatibility.
  • Easily integrate IR control using the included IR sensor and emitter for seamless remote operation.
  • Enjoy reliable connectivity with a 10Gig network, ensuring stable AV over IP transmission always.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500760 Specifications

  • Environment

    HDMI 2.0 and HDCP 2.2

  • Devices

    Blu-Ray, projectors, monitors, TV, PC, laptops, and media servers supporting HDMI

  • Bandwidth

    594MHz

  • Signals

    HDMI 2.0 and DisplayPort 1.2a protocol

  • Connectors

    Connectors:
    One (1) HDMI receptacle
    One (1) DisplayPort connector
    Two (2) RJ455 for Cat 5e/6 unshielded or shielded twisted pair (for 10GbE and 1GbE ports)
    Two (2) 3.5mm jacks for IR emitter and IR sensor
    One (1) 3.5mm jacks for audio insertion/extraction (insert on TX, and extract on RX)
    One (1) 4-pin terminal block connector for RS232
    One (1) 2.1mm power jack (for DC power)

  • Maximum Distance

    Cat5e/6: 330' (100m) up to 4K @ 60Hz

  • Latency

    No Compression (Zero Latency) up to 4K/60 (4:2:0), and less than one Frame (16ms) @ 4K/60 (4:4:4)

  • Compression

    Uncompressed up to 4K/60 (4:2:0), and light compression for 4K/60 (4:4:4) only

  • Network Bandwidth

    < 10Gbps

  • Network Requirement

    10Gig Network XFI, IEEE 802.3

  • IR Frequency

    38 to 56KHz

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    One (1) Cat 5e/6 or better twisted pair cables required

  • Power Source

    Input: 100-240V/1.5A (max) @ 50-60Hz
    Output: 12DC @ 3A
    Includes appropriate power cord for region (US, UK or Euro)

  • Power Consumption

    15.96Watt

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    8.25 x 16.14 x 1.37" (21 x 14 x 3.5cm)

  • Weight

    4.06 lbs (1.85kg)

  • UPC Code

    00627699907603

About Muxlab 500760

The AV over IP 4K/60 Uncompressed Extender, UTP allows HDMI and DisplayPort source equipment supporting up to 4K @ 60Hz resolution to be connected and extended to create a 4K/60 HDMI based Video Wall, Virtual Matrix Switch, and Virtual Splitter arrangements of user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth, utilizing one Receiver for each display in the array.

Each Transmitter (500760-TX) can be connected via Cat5e/6 cable up to 330ft (100m) from a 10Gig Ethernet Switch. The Transmitter supports 2CH audio insertion. The Transmitter come with a power supply, an IR Emitter and IR Sensor for IR based remote control applications, a wall mount bracket kit for securing the unit to a wall and a 4-pin terminal block connector for RS232 connectivity.

The MuxLab Pro Digital Network Controller (500811) is available to simplify centralized configuration and control, software updates and allows for third party smartphone and tablet management.

Muxlab 500760 Features

  • Supports HDMI up to 4K/60 on Transmitter
  • Support DisplayPort 1.2a up to 4K/60 on transmitter
  • Uncompressed up to 41<160 (4:2:0) (zero latency), and light compression visually lossless at (4:4:4) (1 frame latency)
  • Supports Video Wall, Virtual Switch & Splitter configurations
  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Transmission up to 330' (100m) over Cat5e/6
  • Supports audio insert
  • 1G Ethernet Switch port to connect network devices
  • Supports RS232 and IR transmission for remote control
  • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience zero latency with this 4K UHD AV Over IP Transmitter, ensuring real-time performance.
  • Achieve stunning video quality with uncompressed transmission up to 4K/60 (4:2:0) via this transmitter.
  • Extend HDMI signals up to 330ft using Cat5e/6 cable, perfect for large installations with this device.
  • This Muxlab transmitter supports HDMI 2.0 and DisplayPort 1.2a, offering broad device compatibility.
  • Easily integrate IR control using the included IR sensor and emitter for seamless remote operation.
  • Enjoy reliable connectivity with a 10Gig network, ensuring stable AV over IP transmission always.

What's in the box:

  • Muxlab 4K UHD AV Over IP Uncompressed UTP Transmitter
  • 110-240V Power Supply
  • Wall Mount Bracket
  • IR Sensor
  • IR Emitter
  • MuxLab 3 Year Limited Warranty
