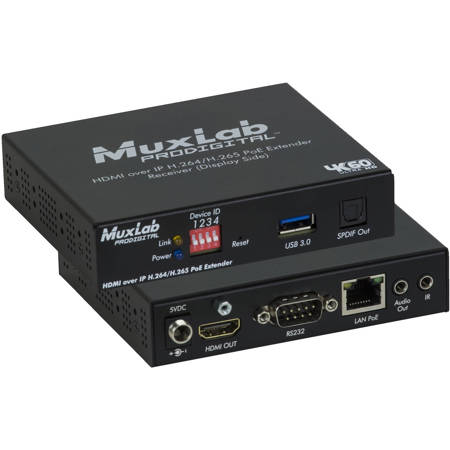

Muxlab 4K UHD HDMI Over IP H.264/H.265 PoE Receiver

SKU: ML500762RX MFR: 500762-RX
Earn VIP Reward Points

Key Features

  • Experience seamless 4K UHD HDMI video over IP with H.264/H.265 compression for optimal performance.
  • This HDMI over IP receiver supports PoE (IEEE 802.3af), simplifying installation and reducing clutter.
  • Enjoy unlimited distance HDMI extension over the internet, or up to 330ft via Cat5e/6 cable.
  • Achieve ultra-low latency (<200ms) in low latency mode, perfect for interactive applications.
  • This receiver supports multicast, RTSP, HLS, FLV & TS protocols for versatile connectivity options.
  • Compatible with Blu-Ray players, PCs, and more, this HDMI receiver enhances your viewing experience.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$30.99

2 Year

$69.99

3 Year

$94.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500762 Specifications

  • Environment

    HDMI 2.0 (RX)

  • Devices

    Blu-Ray, Set Top Boxes, Media Players/Streamers, projectors, monitors, TVs, PCs, supporting HDMI

  • Signal Protocol/Standard

    HDMI 2.0 and HDCP 2.2 (RX)

  • Video Bandwidth

    594MHz (RX)

  • Network Bandwidth

    32Mbps (max)

  • Latency

    <200ms (in low latency mode with H.265)

  • Protocols

    Supports Multicast, RTSP, HLS, FLV & TS

  • Maximum Distance

    Cat5e/6: 330' (100m) from Ethernet Switch. Unlimited over the Internet

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Power Source

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.

  • PoE

    IEEE 802.3af

  • Power Consumption

    4.5W

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.4 x 3.6 x 1.0" (111 x 92 x 25mm)

  • Weight

    14.1 oz (400g)

  • UPC Code

    00627699807620

About Muxlab 500762

The HDMI over IP H.264/H.265 PoE Extender Receiver combination allows HDMI source and display equipment to be extended locally up to 330ft (100m) at up to 4K @ 60Hz resolution via Cat5e/6 cable in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, and supports Video Wall and Multiview capabilities in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems.

The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe. The Receiver, where the signal is up-scaled up to 4K @ 60Hz to be displayed on a 4K monitor.

The Receiver also accepts H.264/H.265 video streams from other transmitting devices of up to 4K @ 60Hz. These devices support POE (PD) and may be powered by a POE (PSE) Ethernet Switch.

Applications:
• Audio/Video Streaming over LAN, Wifi and Internet
• Commercial and residential AV systems
• Classroom projector systems
• Digital signage
• Boardroom systems
• Medical information systems

Muxlab 500762 Features

  • Receiver supports up to 4K @ 60Hz (4:4:4) video streams
  • Receiver up-scales 1080p @ 60Hz video streams from Transmitter and other devices up to 4K @ 60Hz
  • Supports Video Wall and Multiview capabilities
  • Extends local audio/video transmission up to 330' (100m) over Cat5e/6
  • H.264/265 video codec, excellent for LAN, WiFi & Internet transmission
  • High image quality and <200ms latency in low latency mode with H.265
  • Supports 100's of RX devices depending on network bandwidth
  • Supports Multicast, RTSP, RTMP, HLS, FLV and TS
  • Supports SPDIF (TosLink) Audio Out (RX)
  • 2CH audio extract (RX)
  • RS232 and Directional IR for remote control of end-devices
  • PoE powered, via PoE (PSE) Ethernet Switch
  • Managed via Pro Digital Network Controller (500811), and MuxLab Control Smartphone & Tablet App

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience seamless 4K UHD HDMI video over IP with H.264/H.265 compression for optimal performance.
  • This HDMI over IP receiver supports PoE (IEEE 802.3af), simplifying installation and reducing clutter.
  • Enjoy unlimited distance HDMI extension over the internet, or up to 330ft via Cat5e/6 cable.
  • Achieve ultra-low latency (<200ms) in low latency mode, perfect for interactive applications.
  • This receiver supports multicast, RTSP, HLS, FLV & TS protocols for versatile connectivity options.
  • Compatible with Blu-Ray players, PCs, and more, this HDMI receiver enhances your viewing experience.

What's in the box:

  • Muxlab 4K UHD HDMI Over IP H.264/H.265 PoE Receiver
  • Muxlab 3 Year Limited Warranty
