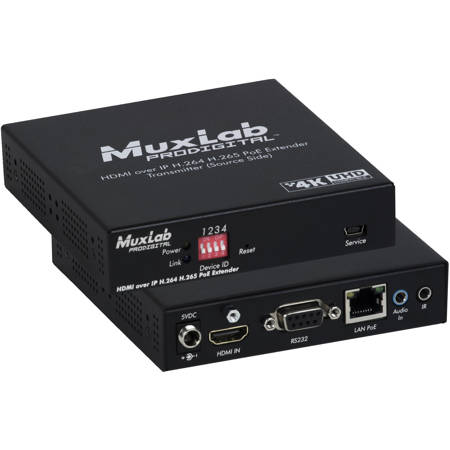

Muxlab 4K 30Hz UHD HDMI Over IP H.264/H.265 PoE Transmitter

SKU: ML500763TX MFR: 500763-TX
Be the first to review this itemAsk a Question
$939.00
OR
$79/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Transmit 4K HDMI over IP with this H.264/H.265 PoE transmitter, perfect for media streaming.
  • Supports HDMI 1.4 and HDCP 1.4 for seamless connectivity with Blu-Ray players and PCs.
  • Achieve low latency (<200ms) in H.265 mode, ideal for real-time video and interactive displays.
  • Control end devices via RS232, offering remote management of your AV setup over IP networks.
  • Power over Ethernet (PoE) support simplifies installation, reducing cable clutter & setup time.
  • Stream via Multicast, RTSP, RTMP, HLS, FLV & TS, ensuring compatibility with streaming platforms.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500763 Specifications

  • Environment

    HDMI 1.4

  • Devices

    Blu-Ray, Set Top Boxes, Media Players/Streamers, projectors, monitors, TVs, PCs, supporting HDMI

  • Signal Protocol/Standard

    HDMI 1.4 and HDCP 1.4

  • Video Bandwidth

    300MHz

  • Network Bandwidth

    40Mbps (max)

  • Latency

    <200ms (in low latency mode with H.265)

  • Protocols

    Supports Multicast, RTSP, RTMP (H.264), HLS, FLV (H.264) & TS

  • Connectors

    One (1) HDMI connector for AV input
    One (1) RJ45S for Ethernet connection
    One (1) 3.5mm connector for audio embedding
    One (1) 3.5mm connector for directional IR (direction controllable via software)
    One (1) RS232 DB9 connector for controlling end devices
    One (1) Mini USB connector for firmware updates (can also update firmware via 500811 controller)
    One (1) 2.1mm locking power connector

  • Maximum Distance

    Cat5e/6: 330' (100m) from Ethernet Switch. Unlimited over the Internet

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Power Source

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.

  • PoE

    IEEE 802.3af

  • Power Consumption

    4.5W

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.4 x 4.4 x 1.0" (111 x 111 x 25mm)

  • Weight

    14.1 oz (400g)

About Muxlab 500763

The HDMI over IP H.264/H.265 PoE Transmitter, 4K/30 allows HDMI source equipment to be extended locally up to 330ft (100m) at up to 4K @ 30Hz resolution via Cat5e/6 cable and is compatible with the Muxlab 500762-RX Receiver to support point-to-point, point-to-multipoint and multipoint-to-multipoint configurations, Video Wall and Multiview capabilities in a low bandwidth expandable and cost effective manner, without the need to install dedicated cabling systems.

The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread throughout the globe. The transmitter accepts a 4K video @ 30Hz and streams the content to an H.264/H.265 Receiver, such as the MuxLab 500762-RX, to be displayed on a 4K monitor. The Transmitter may also send H.264/H.265 video streams to other H.264/H.265 compatible Receiving devices. The device supports POE (PD) and may be powered by a PoE (PSE) Ethernet Switch.

Applications:
• Audio/Video Streaming over LAN, Wifi and Internet
• Commercial and residential AV systems
• Classroom projector systems
• Digital signage
• Boardroom systems
• Medical information systems

Muxlab 500763 Features

  • Supports up to 4K @ 30Hz video
  • Works with the 500762-RX Receiver to support Matrix connectivity, Video Wall and Multiview capabilities
  • Extends local audio/video transmission up to 330' (100m) over Cat5e/6
  • H.264/265 video codec, excellent for LAN, WiFi & Internet transmission
  • High image quality and <200ms latency in low latency mode with H.265
  • Supports 100's of TX & RX devices depending on network bandwidth
  • Supports Multicast, RTSP, RTMP, HLS, FLV and TS
  • Supports embedding of 2CH audio
  • RS232 and Directional IR for remote control of end-devices
  • POE powered, via POE (PSE) Ethernet Switch
  • Managed via Pro Digital Network Controller (500811), MuxControl Smartphone & Tablet App, and third party Apps

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Transmit 4K HDMI over IP with this H.264/H.265 PoE transmitter, perfect for media streaming.
  • Supports HDMI 1.4 and HDCP 1.4 for seamless connectivity with Blu-Ray players and PCs.
  • Achieve low latency (<200ms) in H.265 mode, ideal for real-time video and interactive displays.
  • Control end devices via RS232, offering remote management of your AV setup over IP networks.
  • Power over Ethernet (PoE) support simplifies installation, reducing cable clutter & setup time.
  • Stream via Multicast, RTSP, RTMP, HLS, FLV & TS, ensuring compatibility with streaming platforms.

What's in the box:

  • Muxlab 4K 30Hz UHD HDMI Over IP H.264/H.265 PoE Transmitter
  • Muxlab 3 Year Limited Warranty
