Muxlab HDMI 2.0 Digital Signage Media Player
See all Muxlab items
31% Off

Muxlab HDMI 2.0 Digital Signage Media Player

SKU: ML500769 MFR: 500769
Be the first to review this itemAsk a Question
$411.00
$599.00
Save: $188 (31%)
OR
$69/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience seamless digital signage with HDMI 2.0 for superior image clarity.
  • Connect to TVs, monitors, and projectors easily with this versatile media player.
  • Enjoy flexible content storage via USB for local AV files and presentations.
  • Remotely manage your displays with RS232 control for ultimate convenience.
  • Stream media reliably over Ethernet with multicast, RTSP, HLS, FLV & TS support.
  • Extract audio via TosLink or 3.5mm for customized sound quality options.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500769 Specifications

  • Environment

    HDMI 2.0

  • Devices

    TVs, monitors, projectors supporting HDMI

  • Signal

    Protocal/Standard HDMI 2.0 and HDCP 2.2

  • Video Bandwidth

    594MHz

  • Network Bandwidth

    32Mbps (max)

  • Latency

    300ms

  • Protocols

    Supports Multicast, RTSP, HLS, FLV & TS

  • Connectors

    One (1) HDMI output connector for AV
    One (1) RJ45S for Ethernet connection
    One (1) USB connector for local AV content storage via external USB drive
    One (1) TosLink optical connector for digital audio extraction
    One (1) 3.5mm output connector for audio extraction
    One (1) 3.5mm connector for directional IR (direction controllable via software)
    One (1) RS232 DB9 connector for controlling end devices

  • Connectors (Contd.)

    One (1) 2.1mm locking power connector

  • Maximum Distance

    Cat5e/6: 330' (100m) from Ethernet Switch. Unlimited over the Internet

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Power Source

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    4.5W

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    5.8 x 4.3 x 1.3" (148 x 108 x 33mm)

  • Weight

    12 oz (340.2g)

About Muxlab 500769

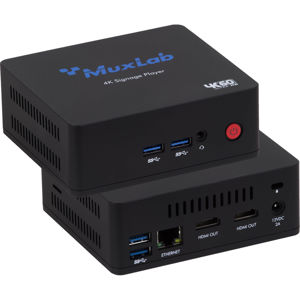

The HDMI 2.0 Digital Signage Media Player is capable of receiving multiple H.264/H.265 AV content simultaneously up to 4K/60 (4:4:4) from a local network, the Internet, internal memory or external USB memory devices, and supports multiview capability and scheduling to automatically deliver this customized windowed AV content based on a weekly schedule. Multiple video, audio and image file formats are supported. It is able to up-scale 1080p@60Hz video to 4K@60Hz (4:4:4) and delivers content to a display or to another transmitter to support virtual matrix and video wall configurations.

The exceptionally low bandwidth requirements of this device allows it to accept streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe.

The unit may be extended up to 100m from the Ethernet switch over CAT5/6 cable, and supports PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.

Applications
• Digital signage / Media player
• Audio/Video Streaming over LAN and Internet
• Commercial and residential AV systems
• Corporate lobbies, malls and boutiques, airports, subway/train/bus stations, etc.

Muxlab 500769 Features

  • Digital Signage Media player supporting playlists and weekly scheduler of multi-format video, image and audio files
  • Supports multiview layouts
  • Supports up to 4K @ 60Hz (4:4:4) video streams
  • Up-scales 1080p @ 60Hz video streams up to 4K @ 60Hz
  • Extends local audio/video transmission up to 330' (100m) over Cat5e/6
  • H.264/265 video codec, excellent for LAN, WiFi & Internet transmission
  • Supports Multicast, RTSP, HLS, FLV and TS
  • USB 3.0 port for playback of local content from external USB drive
  • Extracts digital audio via SPDIF (TosLink)
  • Extracts analog audio via 2CH 3.5 mm jack
  • RS232 and Directional IR for remote control of end-devices
  • PoE powered, via PoE (PSE) Ethernet Switch
  • Managed remotely via the unit web interface and soon via Content Management Software running on PC, tablet and smartphone

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience seamless digital signage with HDMI 2.0 for superior image clarity.
  • Connect to TVs, monitors, and projectors easily with this versatile media player.
  • Enjoy flexible content storage via USB for local AV files and presentations.
  • Remotely manage your displays with RS232 control for ultimate convenience.
  • Stream media reliably over Ethernet with multicast, RTSP, HLS, FLV & TS support.
  • Extract audio via TosLink or 3.5mm for customized sound quality options.

What's in the box:

  • Muxlab HDMI 2.0 Digital Signage Media Player
  • Muxlab 3 Year Limited Warranty
