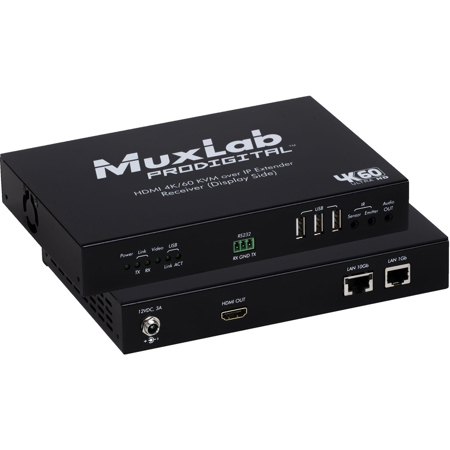

Muxlab 4K UHD HDMI KVM Over IP Extender Receiver
See all Muxlab items

Muxlab 4K UHD HDMI KVM Over IP Extender Receiver

SKU: ML50076RXKVM MFR: 500760-RX-KVM
Be the first to review this itemAsk a Question
$1,398.00
OR
$117/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your KVM setup with this 4K UHD HDMI over IP receiver, perfect for workstations.
  • Experience zero latency KVM extension, ensuring seamless control over your remote devices.
  • This HDMI KVM receiver supports uncompressed 4K/60 (4:2:0) for high-quality video output.
  • Connect your keyboard, mouse, and monitor easily with the USB 2.0 ports for KVM functionality.
  • Utilize the IR sensor and emitter for remote control, enhancing your KVM setup's flexibility.
  • Ensure reliable performance with HDMI 2.0 and HDCP 2.2 support for secure KVM connectivity.
See More Product Details
Special Order?Estimated to Ship: 09/12/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500760-KVM Specifications

  • Environment

    HDMI 2.0

  • Devices

    Servers/Workstations/PCs, Smart Whiteboards, Monitors, TVs, and Keyboard & Mouse Devices

  • Bandwidth

    594MHz

  • Signal

    HDMI 2.0 and HDCP 2.2

  • Connectors

    Connectors per TX and RX:
    One (1) HDMI receptacle
    Two (2) RJ45S for Cat 5e/6 unshielded or shielded twisted pair (for 10GbE and 1GbE ports)
    Two (2) 3.5mm jacks for IR emitter, IR sensor
    One (1) 3.5mm jack for line-level 2CH Audio -In (TX) and Audio-Out (RX)
    Three (3) USB 2.0 (480Mbps) Type A connectors for KVM (RX)
    One (1) USB 2.0 (480Mbps) Type B connector for KVM (TX)

  • Connectors (Contd.)

    One (1) 3-Pin Phoenix connector for RS232 (supports up to 115.2K baud rate)
    One (1) 2.1mm power jack (for DC power)

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end
    Cat5e/6: 330' (100m) up to 4K @ 60Hz

  • Latency

    Zero latency (undetectable in human terms)

  • Compression

    Uncompressed up to 4K/60 (4:2:0), and light compression for 4K/60 (4:4:4) only

  • Network Bandwidth

    < 10Gbps

  • Network Requirement

    10Gig Network XFI, IEEE 802.3

  • IR Frequency

    38 to 56KHz

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    One (1) Cat 5e/6 or better twisted pair cables required

  • Power Source

    Input: 100-240V/1.5A (max) @ 50-60Hz
    Output: 12DC @ 3A
    Includes appropriate AC multi-blades per region (US, UK and Euro)

  • Power Consumption

    16 Watts

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 158 Degree F (-20 Degree to 70 Degree C)
    Humidity: 10% to 90% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    7.7 x 5.2 x 1.3" (195 x 132 x 33mm), per unit

  • UPC Code

    00627699837603

About Muxlab 500760-KVM

The HDMI 4K/60 KVM over IP Receiver is based on SDVoE technology and allows HDMI based servers/workstations supporting up to 4K @ 60Hz resolution to be connected and extended to one or more operators that can connect with and manage any of the servers/workstations in a KVM application. The operator may connect a remote monitor, keyboard & mouse and powered audio speakers to any of the servers/workstations being managed. This system also supports Smart Whiteboard applications via the HDMI and USB ports. 100's of servers/workstations may be managed, depending on network bandwidth, utilizing one Receiver for each operator.

Each Receiver (500760-RX-KVM) can be connected via Cat5e/6 cable up to 330ft (100m) from a 10Gig Ethernet Switch. The HDMI 4K/60 KVM over IP Extender also supports RS232 and 2-way IR for remote management of end devices. Each unit comes with a 12VDC @ 3A power supply, with multiblades for North America, UK, Europe and Australia, and also includes a wall mount bracket kit, and IR sensor & emitter for remote management of end devices.

The Muxlab Pro Digital Network Controller is available to simplify centralized configuration and control, software updates and allows for connectivity management from MuxControl and other third party applications running on smartphones and tablets.

Muxlab 500760-KVM Features

  • Supports KVM and Smart Whiteboard applications
  • Supports HDMI resolutions up to 4K/60 (4:4:4)
  • SDVoE Technology
  • Uncompressed up to 4K/60 (4:2:0), and light compression visually lossless at (4:4:4) (with zero latency)
  • Transmission up to 330' (100m) over Cat5e/6
  • 1G Ethernet Switch port to connect network devices
  • Supports audio extract (RX)
  • Supports RS232 and 2-way IR transmission for remote control
  • Includes IR sensor & emitter, and wall mount bracket
  • Managed via Pro Digital Network Controller, MuxControl Smartphone & Tablet App, and third party Apps

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your KVM setup with this 4K UHD HDMI over IP receiver, perfect for workstations.
  • Experience zero latency KVM extension, ensuring seamless control over your remote devices.
  • This HDMI KVM receiver supports uncompressed 4K/60 (4:2:0) for high-quality video output.
  • Connect your keyboard, mouse, and monitor easily with the USB 2.0 ports for KVM functionality.
  • Utilize the IR sensor and emitter for remote control, enhancing your KVM setup's flexibility.
  • Ensure reliable performance with HDMI 2.0 and HDCP 2.2 support for secure KVM connectivity.

What's in the box:

  • Muxlab 4K UHD HDMI KVM Over IP Extender Receiver
  • 12 VDC / 3A Power Supply with US/UK & Euro Plug Adapters
  • Wall Mount Bracket Kit
  • IR Sensor
  • IR Emitter
  • Muxlab 3 Year Limited Warranty
