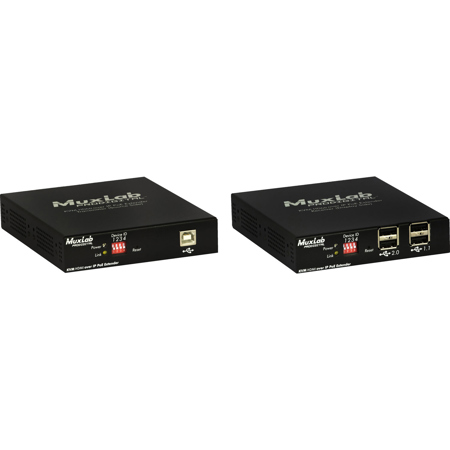

Muxlab KVM HDMI Over IP PoE Extender Transmitter
Muxlab 500770: Picture 1 thumbnail
Muxlab 500770: Picture 2 thumbnail
Muxlab 500770: Picture 3 thumbnail
Muxlab 500770: Picture 4 thumbnail
Muxlab 500770: Picture 5 thumbnail
See all Muxlab items

Muxlab KVM HDMI Over IP PoE Extender Transmitter

SKU: ML500770TX MFR: 500770-TX
Be the first to review this itemAsk a Question
$510.00
OR
$85/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your KVM HDMI signals over IP with this Muxlab transmitter, up to 330ft via Cat5e/6 cable.
  • Experience seamless KVM control with low latency (16-33ms) using JPEG 2000 compression technology.
  • This KVM over IP transmitter supports PoE (IEEE 802.3af), simplifying installation & reducing cable clutter.
  • Manage computers/servers remotely; this HDMI over IP KVM extender supports up to 1920x1200 resolution.
  • Enjoy transparent KVM HDMI transmission; users won't notice any difference in performance or quality.
  • Integrate audio easily; this KVM transmitter features 3.5mm jacks for audio insert, enhancing usability.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$69.99

3 Year

$94.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500770 Specifications

  • Environment

    HDMI 1.4

  • Devices

    Computers and servers with HDMI monitor ports

  • Transmission

    Transparent to the user

  • Bandwidth

    300MHz

  • Bandwidth

    300MHz

  • Signal

    HDMI 1.4 protocol, HDCP 1.4

  • Connectors

    One (1) HDMI receptacle
    One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    Two (2) 3.5mm jacks for audio insert (on TX)/audio extract (on RX)
    One (1) 2.1mm locking barrel jack for power
    One (1) or Four (4) USB Connector(s) for Host (on TX)/Client (on RX)
    Four (4) DIP Switches for device ID addressing

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end
    Cat5e/6: 330' (100m) up to 1920x1200 and 1080p @ 60Hz

  • Latency

    Typical one (1) Frame (16ms), maximum 2 frames (33ms)

  • Compression

    JPEG 2000

  • Network Requirement

    1000BaseT with PoE

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    One (1) Cat 5e/6 or better twisted pair cables required

  • Power Source

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately

  • PoE Standard

    IEEE 802.3af

  • Power Consumption

    2.85Watt

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.40 x 5.08 x 1" (112 x 129 x 25mm)

  • Weight

    1.5 lbs (680.38g)

About Muxlab 500770

The KVM HDMI over IP PoE Extender Transmitter allows HDMI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supporting 1920x1200 and 1080p resolution @ 60Hz via Cat5e/6 cable in multiple point-to-point and pointto-multipoint configurations. The Transmitter (500770-TX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.

The Transmitter terminates to a computer server/workstation via an HDMI & USB port. A single Receiver can be switched via hotkey sequences to any Transmitter on the network, allowing a single operator to manage numerous servers/workstations, in a distributed KVM application.

Applications
• Management of multi-server systems supporting HDMI
• displays in IT departments within corporations, educational
• institutions, CAD Design, Graphic Design, Media Servers, and Data Centers

Muxlab 500770 Features

  • One operator can manage multiple servers/workstations
  • Supports HDMI up to 1920x1200 and 1080p @ 60Hz
  • Up to 330' (100m) over Cat5e/6
  • Supports 100's of Transmitters depending on network bandwidth
  • Supports multiple point-to-point, and point-to-multipoint applications
  • Supports audio insert & mic-out (TX)

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your KVM HDMI signals over IP with this Muxlab transmitter, up to 330ft via Cat5e/6 cable.
  • Experience seamless KVM control with low latency (16-33ms) using JPEG 2000 compression technology.
  • This KVM over IP transmitter supports PoE (IEEE 802.3af), simplifying installation & reducing cable clutter.
  • Manage computers/servers remotely; this HDMI over IP KVM extender supports up to 1920x1200 resolution.
  • Enjoy transparent KVM HDMI transmission; users won't notice any difference in performance or quality.
  • Integrate audio easily; this KVM transmitter features 3.5mm jacks for audio insert, enhancing usability.

What's in the box:

  • Muxlab KVM HDMI Over IP PoE Extender Transmitter
  • Muxlab 3 Year Limited Warranty
