Muxlab 4K UHD HDMI/VGA Over IP PoE Wall Plate Transmitter for Select RX,Aluminum
Muxlab 500773-TX: Picture 1 thumbnail
Muxlab 500773-TX: Picture 2 thumbnail
See all Muxlab items

Muxlab 4K UHD HDMI/VGA Over IP PoE Wall Plate Transmitter for Select Receivers, Aluminum

SKU: ML500773TX MFR: 500773-TX
Be the first to review this itemAsk a Question
$758.00
OR
$127/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • This Muxlab transmitter supports HDMI/VGA over IP, perfect for delivering crystal-clear video.
  • Enjoy easy installation with this 2-gang wall plate transmitter, designed for seamless integration.
  • Stream 4K UHD video effortlessly using this power supply accessory, ensuring top-notch quality.
  • Built with durability in mind, this aluminum transmitter offers reliable, long-term performance.
  • Ensure compatibility with various devices like TVs and projectors using this versatile transmitter.
  • This compact design supports PoE for streamlined power, making it a safe and efficient choice.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500773-TX Specifications

  • Color

    Aluminum

  • Environment

    HDMI 2.0b

  • Devices

    TVs, monitors, projectors supporting HDMI

  • Signal

    Protocal/Standard HDMI 2.0b and HDCP 2.2

  • Video Resolution

    HDMI: Up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
    VGA: Up to 1920 x 1200 @ 60Hz

  • Video Bandwidth

    300MHz

  • Audio Bandwidth

    20Hz to 20KHz (2 CH)

  • Network Bandwidth

    500Mbps (Typ), up to 800Mbps (Max)

  • Network Requirement

    1G Network via PoE Ethernet Switch supporting IGMP and Jumbo Frames

  • Network Protocol

    Multicast

  • Compression

    JPEG2000

  • Latency

    16.7ms typ. (1 Frame), up to 33.4ms max. (2 frames )

  • Connectors

    One (1) HDMI input connector for Audio/Video
    One (1) VGA input 15-Pin DSUB connector for Video
    One (1) 3.5mm input jack for 2CH Audio
    One (1) RJ45S for Ethernet connection
    One (1) 2.1mm locking power connector, for optional use since this device supports PoE (PD)

  • Maximum Distance

    Cat5e/6: 330' (100m) from Ethernet Switch

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Power Source

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    3W

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Wall Plate Size

    2 Gang

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    5 x 4.53 x 1.65" (127 x 115 x 42mm)

  • Weight

    1.17 lbs (530.7g)

  • UPC Code

    00627699907733

About Muxlab 500773-TX

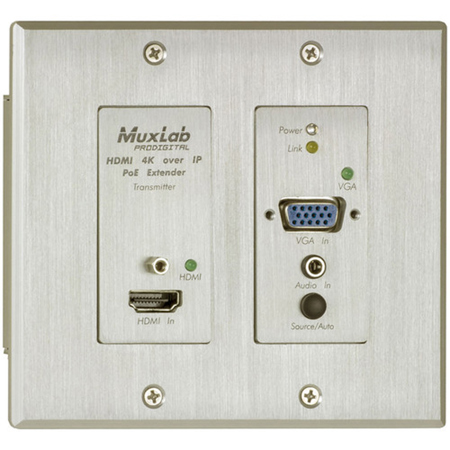

The HDMI/VGA over IP PoE Wall Plate Transmitter, UHD-4K is a two-gang wall plate transmitter which provides a convenient interface for HDMI and VGA input sources. It allows HDMI and VGA equipment to be extended up to 330ft (100m) from an Ethernet Switch via one (1) Cat5e/6 cable.

The unit supports one (1) HDMIIn, one (1) VGA-In and one 2CH Audio-In, and supports resolutions up to 4K (3840x2160) @ 30Hz for HDMI and 1920x1200 @ 60Hz for VGA. The input selection between HDMI and VGA inputs may be locally or remotely selected, and supports auto and manual switching modes with LED indicators. This device may be used with the Muxlab 500758-RX and 500759-RX over IP Receivers, all managed via the 500811 Network Controller. The device supports PoE (PD) for easy installation.

Applications
• Commercial and residential AV systems
• Classroom projector systems
• Digital signage
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Muxlab 500773-TX Features

  • Selectable HDMI and VGA inputs
  • HDMI 2.0b up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
  • VGA 1920x1200 @ 60Hz, with 2CH Audio-In
  • HDCP 2.2 compliant
  • Remotely managed over IP & locally managed via push button
  • Auto and manual switching modes, with LED indicators
  • Compatible with 500758-RX and 500759-RX over IP Receivers
  • PoE powered
  • Managed via Pro Digital Network Controller (500811), MuxLab Control Smartphone & Tablet App & 3rd Party Control Apps

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • This Muxlab transmitter supports HDMI/VGA over IP, perfect for delivering crystal-clear video.
  • Enjoy easy installation with this 2-gang wall plate transmitter, designed for seamless integration.
  • Stream 4K UHD video effortlessly using this power supply accessory, ensuring top-notch quality.
  • Built with durability in mind, this aluminum transmitter offers reliable, long-term performance.
  • Ensure compatibility with various devices like TVs and projectors using this versatile transmitter.
  • This compact design supports PoE for streamlined power, making it a safe and efficient choice.

What's in the box:

  • Muxlab 4K UHD HDMI/VGA Over IP PoE Wall Plate Transmitter (Aluminum)
  • Muxlab 3 Year Limited Warranty
