Muxlab 4K UHD HDMI/USB Over IP PoE Wall Plate Receiver, White
See all Muxlab items

Muxlab 4K UHD HDMI/USB Over IP PoE Wall Plate Receiver, White

SKU: ML500777RXWH MFR: 500777-RX-WH
Be the first to review this itemAsk a Question
$810.00
OR
$68/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience seamless connectivity with this Muxlab HDMI/USB over IP receiver wall plate.
  • Enjoy versatile use; connect Blu-Ray players, PCs, and smart boards using this receiver.
  • Achieve optimal performance with HDMI 2.0b, supporting 4K/30 4:4:4 & 4K/60 4:2:0 resolutions.
  • Extend your reach up to 330' (100m) over Cat5e/6 cable for flexible installation options.
  • Power your devices efficiently using PoE (IEEE 802.3af), simplifying setup and cable management.
  • Ensure compatibility with various devices through HDMI, USB, and audio connectivity options.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500777-RX Specifications

  • Environment

    HDMI and USB connectivity

  • Devices

    Blu-Ray, projectors, monitors, TV, PC, laptops, servers, and Smart White Boards

  • Bandwidth

    300MHz

  • Bandwidth

    300MHz

  • Signal

    HDMI 2.0b (4K/30 4:4:4 & 4K/60 4:2:0), USB 1.1 & 2.0 and HDCP 2.2

  • Connectors

    One (1) HDMI receptacle
    Four (1) USB type A connectors
    One (1) RJ45 for Ethernet connectivity
    One (1) 3.5mm jack for Audio-Out
    One (1) 3.5mm jack for Directional IR
    One (1) 2.1mm jack for power

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end
    Cat5e/6: 330' (100m)

  • Latency

    Typical one (1) frame (16ms)

  • Compression

    JPG2000

  • Network Requirement

    1 Gig Ethernet with IGMP, Jumbo Frames and PoE

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Power Source

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    3W

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    5.03 x 4.53 x 1.66 (128 x 115 x 42mm)

  • Weight

    1.35 lbs (612.3g)

About Muxlab 500777-RX

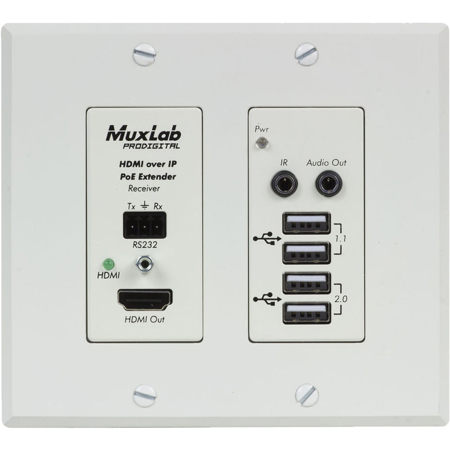

The HDMI/USB over IP PoE Wall Plate Receiver, UHD- 4K installs in a double-gang wall box to provide a convenient interface for HDMI display equipment and USB connectivity to manage Smart White Boards and other USB based devices. The unit has one (1) HDMI- Out, one (1) Audio-Out, two (2) USB 2.0 Type-A ports, two (2) USB 1.1 type-A ports, and one Ethernet Port. It supports video up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0).

The HDMI/USB over IP PoE Wall Plate Receiver, UHD-4K allows HDMI and USB equipment to be extended up to 330ft (100m). The unit supports an RS232 port plus a Directional IR port to manage remote devices. The device may be powered via a PoE enabled 1Gig Ethernet Switch.

Applications
• Commercial and residential AV systems K-6 and K-12 classroom AV systems
• Digital signage
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Muxlab 500777-RX Features

  • HDMI 2.0b up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
  • Audio-Out capability
  • Supports two (2) USB 2.0 and two (2) USB 1.1 Type-A ports
  • Extend HDMI, 2CH Audio, and USB up to 330' (100m) over Cat5e/6 cable
  • HDCP 2.2 compliant
  • Compatible with 500777-TX, 500759-TX, 500770-TX and 500771-TX over IP Transmitters
  • RS232 and Directional IR for remote control of end-devices
  • PoE powered
  • Managed via Pro Digital Network Controller (500811), MuxControl App & 3rd Party Control Apps

Warranty Information

This product has a limited warranty of 36 months.
