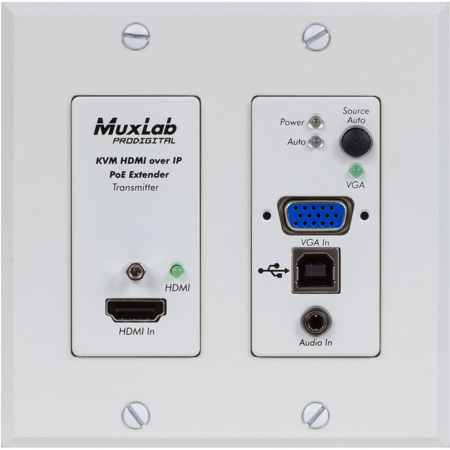

Muxlab 4K UHD HDMI/VGA/USB Over IP PoE Wall Plate Decora Transmitter, White
See all Muxlab items
31% Off

Muxlab 4K UHD HDMI/VGA/USB Over IP PoE Wall Plate Decora Transmitter, White

SKU: ML500777TXDO MFR: 500777-TX-DECO
Be the first to review this itemAsk a Question
$606.00
$883.00
Save: $277 (31%)
OR
$101/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Easily connect your HDMI, VGA, and USB devices with this versatile wall plate transmitter.
  • Experience reliable performance with this durable Muxlab transmitter, built for longevity.
  • Enjoy seamless integration with projectors, monitors, and smart boards using this unit.
  • This wall plate offers great value, combining multiple connectivity options in one device.
  • Ensure safe operation with a design compliant with FCC, CE, and RoHS regulatory standards.
  • This compact, easy-to-install transmitter delivers high-quality 4K UHD video over IP networks.
See More Product Details
Special Order?Estimated to Ship: 12/19/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$69.99
3-Year Adorama Protect$94.99
4-Year Adorama Protect$119.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of box does the UHD-4K HDMI/VGA/USB Over IP PoE Wall Plate DECO Transmitter fit into?

The DECO Transmitter is designed to fit into a standard Decora size 2-gang electrical box.

What is the maximum video resolution supported by the DECO Transmitter?

The DECO Transmitter supports HDMI video resolution up to 3840x2160 @ 30Hz and VGA video resolution up to 1920x1200@60Hz.

What is the maximum distance the DECO Transmitter can extend HDMI, VGA, and USB equipment?

The DECO Transmitter can extend HDMI, VGA, and USB equipment up to a distance of 330' (100m).

How is the UHD-4K HDMI/VGA/USB Over IP PoE Wall Plate DECO Transmitter powered?

The DECO Transmitter is PoE-enabled, meaning it can be powered via a PoE-enabled 1Gig Ethernet Switch.

Does the DECO Transmitter support auto-switching between inputs?

Yes, the DECO Transmitter features a push-button switch and auto-switching functionality for easy selection between HDMI and VGA inputs.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab 500777-TX-DECO Specifications

  • Color

    White

  • Environment

    HDMI, VGA and USB connectivity

  • Devices

    Blu-Ray, projectors, monitors, TV, PC, laptops, servers, and Smart White Boards

  • Bandwidth

    300MHz

  • Bandwidth

    300MHz

  • Signal

    HDMI 2.0b (4K/30 4:4:4 & 4K/60 4:2:0), VGA (1920x1200), USB 2.0 and HDCP 2.2

  • Connectors

    One (1) HDMI receptacle
    One (1) Female DB15 connector for VGA
    One (1) USB Type B connector
    One (1) RJ45S for Ethernet connectivity
    One (1) 3.5mm jack for Audio-In
    One (1) 2.1mm jack for power

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end
    Cat5e/6: 330' (100m)

  • Latency

    Typical one (1) frame (16ms)

  • Compression

    JPG2000

  • Network Requirement

    1 Gig Ethernet with IGMP, Jumbo Frames and PoE

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Power Source

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    6W

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.53 x 4.53 x 2.05 (115 x 115 x 52mm)

  • Weight

    1.35 lbs (612.3g)

About Muxlab 500777-TX-DECO

The HDMI/VGA/USB over IP PoE Wall Plate Transmitter, 4K/30, DECO installs in a standard Decora size 2-gang electrical box to provide a convenient interface for HDMI /VGA input sources to be extended to one or more displays, and USB 2.0 connectivity to manage Smart White Boards and other USB based devices. The unit has one HDMI-In, one VGA-In with Audio-In, one USB Type-B port, and one Ethernet Port. It supports video up to 3840x2160 @ 30Hz, and VGA up to 1920x1200 @ 60Hz. The HDMI/VGA/USB over IP PoE Wall Plate Transmitter, 4K/30, DECO allows HDMI, VGA and USB equipment to be extended up to 330ft (100m). The unit supports a push button switch and auto switching to select between the HDMI and VGA inputs. The device may be powered via a PoE enabled 1Gig Ethernet Switch

Applications
• Commercial and residential AV systems
• K6 and K12 classroom AV systems
• Digital signage
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Muxlab 500777-TX-DECO Features

  • HDMI 2.0b up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
  • VGA 1920x1200 @ 60Hz, with 2CH Audio-In
  • Selectable HDMI / VGA with Audio inputs, with auto switching capability
  • Fits in a standard 2-gang Decora size electrical box
  • Remotely managed over IP & locally managed via push button
  • Extend HDMI, VGA with 2CH Audio, and USB 2.0 up to 330' (100m) over Cat5e/6 cable
  • HDCP 2.2 compliant
  • Compatible with 500777-RX, 500759-RX, 500770-RX and 500771-RX over IP Receivers
  • PoE powered
  • Managed via Pro Digital Network Controller (500811), MuxControl App & 3rd Party Control Apps

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Easily connect your HDMI, VGA, and USB devices with this versatile wall plate transmitter.
  • Experience reliable performance with this durable Muxlab transmitter, built for longevity.
  • Enjoy seamless integration with projectors, monitors, and smart boards using this unit.
  • This wall plate offers great value, combining multiple connectivity options in one device.
  • Ensure safe operation with a design compliant with FCC, CE, and RoHS regulatory standards.
  • This compact, easy-to-install transmitter delivers high-quality 4K UHD video over IP networks.

What's in the box:

  • Muxlab 4K UHD HDMI/VGA/USB Over IP PoE Wall Plate Decora Transmitter (White)
  • Muxlab 3 Year Limited Warranty
