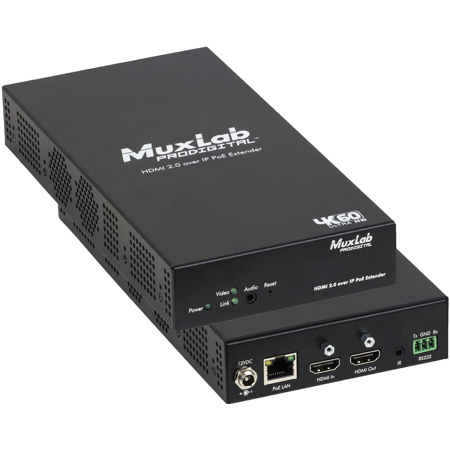

Muxlab 4K UHD HDMI 2.0 Over IP Extender with PoE
Muxlab 500779: Picture 1 thumbnail
Muxlab 500779: Picture 2 thumbnail
See all Muxlab items
31% Off

Muxlab 4K UHD HDMI 2.0 Over IP Extender with PoE

SKU: ML500779 MFR: 500779
Be the first to review this itemAsk a Question
$1,233.00
$1,799.00
Save: $566 (31%)
OR
$103/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your 4K UHD HDMI signals up to 100m with this reliable HDMI over IP extender kit.
  • Experience seamless video and audio transmission using this 4K HDMI extender over standard Cat 5e/6.
  • This HDMI KVM extender supports PoE, simplifying installation and reducing cable clutter.
  • Perfect for presentations: Extend HDMI signals to projectors and displays with ease using this extender.
  • Enjoy high-quality video with resolutions up to 4K @ 60Hz (4:4:4) using this HDMI extender.
  • Control your devices remotely with bidirectional IR and RS232 pass-through via this HDMI over IP.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500779 Specifications

  • Environment

    HDMI 2.0 and HDCP 2.2

  • Devices

    Blu-Ray, projectors, monitors, TV, PC, laptops, and media servers supporting HDMI

  • Bandwidth

    594MHz

  • Signals

    HDMI 2.0 protocol, up to 4K @ 60Hz (4:4:4)

  • Maximum Distance

    Supports up to 4K @ 60Hz (4:4:4) at 100m over Cat 5e/6

  • Latency

    16ms typ. (1 frame)

  • Connectors

    One (1) HDMI-In receptacle (TX mode)
    One (1) HDMI-Out receptacle (loop-out in TX mode, or HDMI-Out in RX mode)
    One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair (for LAN)
    One (1) 3.5mm jack for 2CH Audio (configured as Audio-In for TX mode, or Audio-Out for RX mode)

  • Connectors (Contd.)

    One (1) 3.5mm jack for bidirectional IR (for IR emitter or IR sensor)
    One (1) 3-pin terminal block connector for RS232
    One (1) 5V DC power jack connector

  • Compression

    JPG2000

  • Network Bandwidth

    Up to 900Mbps

  • Network Requirement

    1Gbps Network

  • IR Frequency

    38-56KHz

  • Cable

    One (1) Cat 5e/6 or better twisted pair cable required per device

  • Power Source

    This device supports PoE (PD); an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500988) may be purchased separately.

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 90% non-condensing

  • Compliance

    FCC, CE, RoHS Flammability: 94V0

  • Dimensions

    4.33 x 8.62 x 1.20" (110 x 220 x 33mm)

  • Weight

    1.23 lbs (560g)

About Muxlab 500779

The HDMI 2.0 over IP PoE Extender, 4K/60 allows HDMI source equipment supporting up to 4K (3840x2160) resolution @ 60Hz to be connected via Cat5e/6 cable up to 330ft (100m) from a 1Gbps Ethernet Switch, in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations.

The system consists of a Transmitter and Receiver that supports a Directional IR port and RS232 port for remote control of end devices, and an 2CH audio port with audio insert at the Transmitter and audio extract at the Receiver.

The MuxLab Pro Digital Network Controller is available to simplify centralized configuration and control, software updates, and allows for management from the MuxControl smartphone and tablet App, and 3rd Party Control Apps.

Applications:
• Commercial and residential AV systems
• Classroom projector systems
• Digital signage
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Muxlab 500779 Features

  • Supports HDMI 2.0 up to 4K/60 (4:4:4)
  • Latency of 16ms typ., (1 frame @ 60Hz)
  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Transmission up to 330' (100m) over Cat 5e/6
  • Supports a 1Gbps Ethernet network
  • RS232 and Directional IR transmission for remote control of end devices
  • 2CH Audio embedding (TX) and extraction (RX)
  • Supports PoE
  • Managed via Pro Digital Network Controller, MuxControl App & 3rd Party Control Apps

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your 4K UHD HDMI signals up to 100m with this reliable HDMI over IP extender kit.
  • Experience seamless video and audio transmission using this 4K HDMI extender over standard Cat 5e/6.
  • This HDMI KVM extender supports PoE, simplifying installation and reducing cable clutter.
  • Perfect for presentations: Extend HDMI signals to projectors and displays with ease using this extender.
  • Enjoy high-quality video with resolutions up to 4K @ 60Hz (4:4:4) using this HDMI extender.
  • Control your devices remotely with bidirectional IR and RS232 pass-through via this HDMI over IP.

What's in the box:

  • Transmitter
  • Receiver
  • Muxlab 2 Year Limited Warranty
