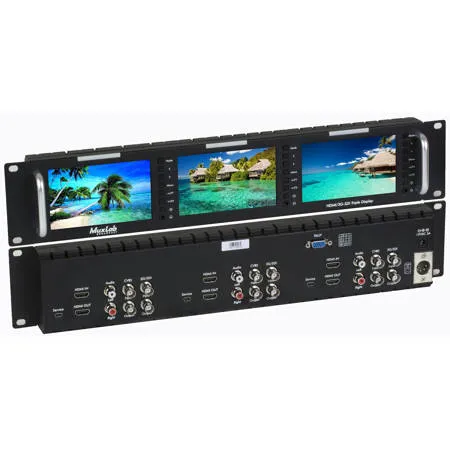

Muxlab 5" WVGA 2RU Rackmount Triple TFT LCD Display, Supports HDMI/3G-SDI
Muxlab 500840: Picture 1 thumbnail
Muxlab 500840: Picture 2 thumbnail
Muxlab 500840: Picture 3 thumbnail
Muxlab 500840: Picture 4 thumbnail
See all Muxlab items
31% Off

Muxlab 5" WVGA 2RU Rackmount Triple TFT LCD Display, Supports HDMI/3G-SDI

SKU: ML500840 MFR: 500840
Be the first to review this itemAsk a Question
$1,212.00
$1,769.00
Save: $557 (31%)
OR
$101/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Triple 5" TFT LCD display offers comprehensive video monitoring for broadcast and production.
  • Supports up to 1080p HDMI and 3G-SDI video inputs, ensuring high-quality video resolution.
  • Each screen features 800x480 resolution, ideal for detailed monitoring in control rooms.
  • Rackmount design saves space, perfect for studio environments needing efficient setups.
  • Features HDMI and SDI connectivity, offering versatile options for video input and output.
  • Experience accurate color video format with PAL/NTSC support for professional use.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500840 Specifications

  • Environment

    HDMI, SDI and Audio

  • Input Signal

    Up to 1080p HDMI and 3G-SDI Video, and Audio (L/R)

  • Output Signal

    Up to 1080p HDMI and 3G-SDI Video

  • HDMI Signal Support

    480i, 480p, 576i, 576p, 720p (60/59.94/50/30/29/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)

  • SDI Signal Support

    SD-SDI, HD-SDI and 3G-SDI including:
    480i, 576i, 720p (60/59.94/50/30/29/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)

  • Color Video Format

    PAL 4:4:3 / NTSC 3:58

  • Display type and size

    5" TFT LCD displays, with LED backlight

  • Individual Screen Resolution

    800x480 (RGB) per screen

  • Aspect Ratio

    16:9

  • Dot Pitch

    0.045 (W) x 0.135 (H) mm

  • Brightness

    500cd/sq. m

  • Contrast

    500:1

  • Response Time

    Turn On = 10ms, Turn Off = 15ms

  • Viewing Angle

    70 Degree /70 Degree (L/R) 50 Degree /70 Degree (U/D)

  • Headphone Output

    2CH headphone output via 3.5mm jack

  • Connectors

    Three (3) pairs of HDMI connectors (1 pair per monitor) for HDMI video-in and HDMI video-out
    Three (3) pairs of SDI (BNC) connectors (1 pair per monitor) for SDI video-in and SDI video-out
    Three (3) pairs of BNC connectors (1 pair per monitor) for CVBS-in and CVBS-out
    Three (3) pairs of RCA connectors (1 pair per monitor) for Audio-in Left and Right channels

  • Connectors (Contd.)

    Three (3) 3.5mm jacks (1 per monitor) for Audio Headphone-out Left and Right channels
    Three (3) mini USB connectors (1 per monitor) for firmware updates
    One (1) DB15 connector for Tally light indicators
    One (1) 2.1mm power connector
    One (1) 4-Pin XLR connector for power connector (alternate power connector option)

  • Input Voltage Range

    9.0 to 24 VDC

  • Power Source

    One (1) 100/240VAC to 12VDC @ 3A power supply

  • Power Consumption

    25W

  • Temperature

    Operating: -4 Degree to 131 Degree F (-20 Degree to 55 Degree C)
    Storage: -22 Degree to 149 Degree F (-30 Degree to 65 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS Flammability: 94V0

  • Dimensions

    19.00 x 3.46 x 1.34" (482.6 x 88 x 34mm)

  • Weight

    3.458 lbs (1.57kg)

About Muxlab 500840

The HDMI/3G-SDI Triple Display supports three independent 5 inch TFT LCD displays mounted conveniently and securely on a 2RU 19" rack. These devices save a significant amount of space in multi-display Pro AV and Broadcast applications.

The unit supports input and loop-out of HDMI signals up to 1080p/60, SDI signals up to 3G-SDI, and CVBS signals with Audio. The unit supports a tri-color Tally light indicator per display, customizable buttons allowing customers to tailor them to their needs, and advanced functions such as Center Marker, Safe Frames, Check Field, Focus Assist, Aspect Ratio, Image Flip, P2P, and Image Freeze.

Applications:
Convenient and flexible solution for commercial and industrial application such as broadcast studios, film and television studios, IT departments and datacentres, AV testing environments (may be paired with 500830 & 500831 signal generator & analyzer), and general multi-display applications.

Muxlab 500840 Features

  • Triple 5" TFT LCD displays
  • Supports HDMI (1080p), 3G-SDI and CVBS with Audio
  • Fits 19" rackmount @ 2 RU Tri-color Tally light indicator per display
  • Supports Center Marker, Safe Frames, Check Field, Focus Assist, Aspect Ratio, Image Flip, P2P & Image Freeze
  • Customizable buttons tailored to customer needs
  • Supports firmware update via mini USB

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Triple 5" TFT LCD display offers comprehensive video monitoring for broadcast and production.
  • Supports up to 1080p HDMI and 3G-SDI video inputs, ensuring high-quality video resolution.
  • Each screen features 800x480 resolution, ideal for detailed monitoring in control rooms.
  • Rackmount design saves space, perfect for studio environments needing efficient setups.
  • Features HDMI and SDI connectivity, offering versatile options for video input and output.
  • Experience accurate color video format with PAL/NTSC support for professional use.

What's in the box:

  • Muxlab 5" WVGA 2RU Rackmount Triple TFT LCD Display
  • Muxlab 2 Year Limited Warranty
