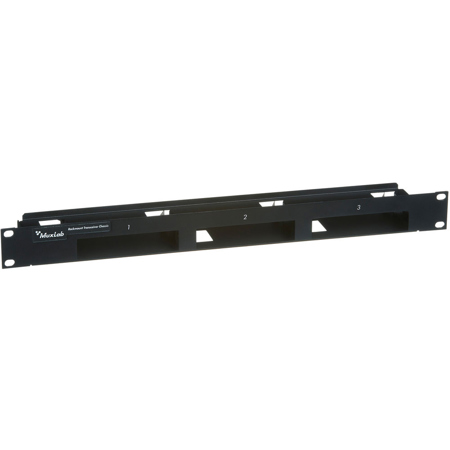

Muxlab 1U 3-Port Rackmount Transceiver Chassis

SKU: ML500905 MFR: 500905
$188.00
Earn VIP Reward Points

Key Features

  • Optimize your AV setup with this 1U rackmount transceiver chassis for custom installations.
  • This Muxlab chassis supports three transceivers, perfect for head-end audio-video systems.
  • Easily mount your transceivers; includes rack-mounting screws for a secure, stable setup.
  • Built with durable aluminum, this rackmount chassis ensures longevity and reliable performance.
  • Ideal for boardroom, surveillance, and digital signage systems using standard EIA/TIA.
  • Maximize space; this 19-inch rackmount chassis keeps your AV components organized and accessible.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Muxlab Transceiver Chassis Specifications

  • Environment

    Custom audio-video systems in a structured cabling environment

  • Applications

    Custom AV installations
    Head-end audio-video systems
    Home and commercial AV systems
    Boardroom systems
    Surveillance systems
    Digital signage systems
    Head-end installations
    Audio-video rooms,
    Telecom rooms

  • Capacity

    3 positions

  • Compatible Products

    MuxLab transceivers measuring 4.3 x 2.9 x 1.0" / 10.92 x 7.37 x 2.54cm

  • Snap-in Mechanism

    Baluns lock into position via spring latch mechanism

  • Rack Height

    1U: 1.75", 19" rack

  • Enclosure

    Black painted aluminum

  • Mounting Holes

    4x Rack-mounting holes

  • Mounting Hardware

    4x rack-mounting 10-32 screws and washers (included)

  • Slot Id

    Silkscreen on the front and rear. Slots numbered "1" to "3"

  • Standard

    EIA/TIA

  • Dimensions (W x H x D)

    19 x 1.7 x 3.8" / 48.26 x 4.32 x 9.65cm

  • Weight

    1.9lbs / 0.86kg

  • UPC Code

    627699009055

About Muxlab Transceiver Chassis

Designed for small commercial and residential applications, the Rack mount Transceiver Chassis allows several MuXLab desktop transceivers to be mounted in a 1U 19" relay rack for custom audio-video applications where the source equipment is installed in a central wiring room. Supports the line of Long Reach CCTV IP PoE extenders & the shorter distance CCTV IP PoE Extenders both over Coax cable. MuXLab's line of CCTV IP Extenders over Cat5e/6 cable are also designed to fit in the chassis.

Muxlab Transceiver Chassis Features

  • Space efficient - 1U height
  • One-piece design
  • Latching mechanism for secure installation
  • Supports up to three (3) transceivers
  • Snap-in design for ease of installation
  • Includes four (4) rackmount screws and washers
  • Slot number silkscreen on front and rear

Key Features

  • Optimize your AV setup with this 1U rackmount transceiver chassis for custom installations.
  • This Muxlab chassis supports three transceivers, perfect for head-end audio-video systems.
  • Easily mount your transceivers; includes rack-mounting screws for a secure, stable setup.
  • Built with durable aluminum, this rackmount chassis ensures longevity and reliable performance.
  • Ideal for boardroom, surveillance, and digital signage systems using standard EIA/TIA.
  • Maximize space; this 19-inch rackmount chassis keeps your AV components organized and accessible.

What's in the box:

  • Muxlab 1U 3-Port Rackmount Transceiver Chassis
  • 4x 10-32 Rackmount Screw & Washer
  • Muxlab Lifetime Warranty
