Muxlab 3.28' 12VDC IR Sensor Carrier Wave Cable
See all Muxlab items

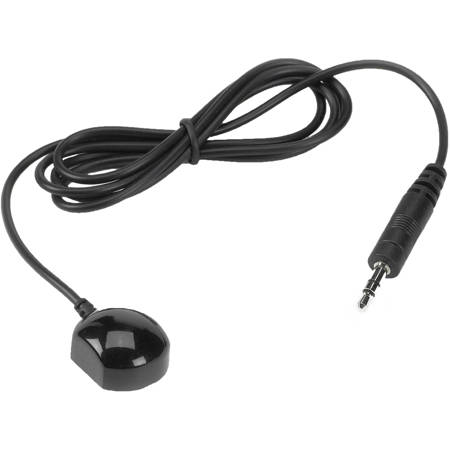

Muxlab 3.28' 12VDC IR Sensor Carrier Wave Cable

SKU: ML500994 MFR: 500994
Be the first to review this itemAsk a Question
$16.00
Earn VIP Reward Points

Key Features

  • Extend your IR control with this 3.28' Muxlab IR Sensor Carrier Wave Cable.
  • Universally compatible, this IR cable works with TVs, STBs, DVRs, and more!
  • Supports multiple IR data formats including NEC, RC5, RC6, and Sony 12-bit code.
  • Enjoy a wide carrier frequency range, from 38 to 56KHz, for reliable IR control.
  • With a receiving distance of 49.2', this IR sensor cable offers flexible setup.
  • Compact design at 0.79 x 0.95 x 0.51", easily integrates into any A/V setup.
See More Product Details
Special Order?Estimated to Ship: 12/18/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main function of the IR Sensor Carrier Wave 12VDC (500994)?

The IR Sensor Carrier Wave 12VDC (500994) is designed to support IR source control between your AV source and AV display. It works in conjunction with MuxLab products.

Is the IR Sensor Carrier Wave 12VDC (500994) easy to set up?

Yes, the IR Sensor Carrier Wave 12VDC (500994) is designed with a user-friendly, plug-and-play setup for easy use.

Which devices is the IR Sensor Carrier Wave 12VDC (500994) compatible with?

The IR Sensor Carrier Wave 12VDC (500994) is compatible with a wide range of MuxLab products and AV over IP Extenders, specifically the 500755, 500756, and 500757 models.

Is the handheld remote control included with the IR Sensor Carrier Wave 12VDC (500994)?

No, the handheld remote control is not included with the IR Sensor Carrier Wave 12VDC (500994).

What is the purpose of the IR Emitter (500998) in relation to the IR Sensor Carrier Wave 12VDC (500994)?

The IR Emitter (500998) is a complementary product that connects to the active transmitter, working in conjunction with the IR Sensor Carrier Wave 12VDC (500994) to provide a comprehensive solution for your IR source control needs.

Reviews about this item

Review Summary

Muxlab 500994 Specifications

  • Environment

    Infrared (IR) control

  • Devices

    TV Sets, STB, DVD, DVR, PVR, satellite receivers

  • Supported IR Data Formats

    NEC code, RC5 code, RC6 code, Grounding code, RCA Code, Zenith code and Sony 12-bit code

  • Carrier Frequency

    38 to 56KHz

  • IR Wavelength

    940nm

  • Receiving Distance

    49.2' (15m)

  • Connectors

    IR Sensor: 3.5mm (stereo) jack

  • Pin Configuration

    Tip: Data
    Ring: Ground
    Sleeve: +12VDC @ 2mA

  • Cable Length

    39" (1m)

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -13 Degree to 176 Degree F (-25 Degree to 80 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Dark purple epoxy resin

  • Dimensions

    0.79 x 0.95 x 0.51" (20 x 24 x 13mm)

  • Weight

    0.64 oz (18g)

About Muxlab 500994

The IR Sensor Carrier Wave 12VDC (500994) works in conjunction with MuxLab products to support IR source control between the AV source and the AV display. The 500994 connects to an active Receiver. The IR Emitter (500998) is the complementary product that connects to the active Transmitter. The handheld remote control is not included.

Muxlab 500994 Features

  • NEC code, RC5 code, RC6 code, Grounding code, RCA Code, Zenith code and Sony 12-bit code
  • Carrier Frequency: 38-56KHz

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your IR control with this 3.28' Muxlab IR Sensor Carrier Wave Cable.
  • Universally compatible, this IR cable works with TVs, STBs, DVRs, and more!
  • Supports multiple IR data formats including NEC, RC5, RC6, and Sony 12-bit code.
  • Enjoy a wide carrier frequency range, from 38 to 56KHz, for reliable IR control.
  • With a receiving distance of 49.2', this IR sensor cable offers flexible setup.
  • Compact design at 0.79 x 0.95 x 0.51", easily integrates into any A/V setup.

What's in the box:

  • Muxlab 3.28' 12VDC IR Sensor Carrier Wave Cable
  • Muxlab 2 Year Limited Warranty
