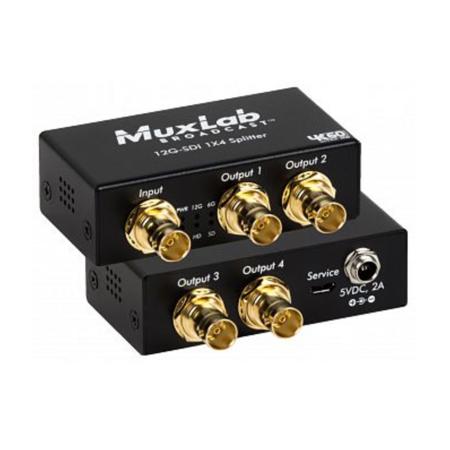

Muxlab 1x4 4K UHD 12G-SDI Splitter
Muxlab 5727: Picture 1 thumbnail
Muxlab 5727: Picture 2 thumbnail
Muxlab 5727: Picture 3 thumbnail
Muxlab 5727: Picture 4 thumbnail
See all Muxlab items

Muxlab 1x4 4K UHD 12G-SDI Splitter

SKU: ML5727 MFR: 500727
Be the first to review this itemAsk a Question
$256.00
OR
$43/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Distribute 4K UHD video easily with this 1x4 SDI splitter for crystal-clear visuals.
  • Supports up to 12G-SDI, ensuring compatibility with the latest high-definition cameras.
  • Use with cameras, monitors, and projectors; this display splitter supports multiple devices.
  • Achieve optimal signal clarity with auto signal detection for seamless presentations.
  • Enjoy transparent transmission; this splitter maintains original audio/video quality.
  • Extend your signal reach up to 230' with reliable cable equalization for 12G-SDI.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$24.99

2 Year

$34.99

3 Year

$49.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 5727 Specifications

  • Environment

    12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI

  • Devices

    Camera, projectors, monitors, TV

  • Transmission

    Transparent to the user

  • Detection

    Auto Detection of the 12G/6G/3G/HD/SD-SDI Signal

  • Bandwidth

    11.88Gbps & 11.88/1.001Gbps

  • Data Rates

    1.485, 2.97, 5.96 & 11.88 Gbps

  • Output Impedance

    75 Ohm

  • Signals

    SDI protocol

  • Supported Resolution

    12G-SDI: 2160p50/59.94/60Hz (4:2:2)
    6G-SDI: 2160p23.98/24/25/29.97/30Hz (4:2:2)
    3G-SDI: 1080p50/59.94/60Hz (4:2:2)
    HD-SDI: 1080p23.98/24/25/29.97/30Hz
    720p50/59.94/60Hz
    1080i50/59.94/60Hz

    SD-SDI: NTSC (59.94Hz), PAL (50Hz)

  • Audio

    Up to 8 Audio Channels

  • Ancillary Data

    Supported

  • Input Signal

    12G-SDI: SMPTE ST2082
    6G-SDI: SMPTE ST2081
    3G-SDI: SMPTE 424M, 425M
    HD-SDI: SMPTE 292M, 296M
    SD-SDI: SMPTE 259M, 344M

  • Connectors

    One (1) BNC Female 75 Ohms, Gold Plated for input
    Four (4) BNC Female 75 Ohms, Gold Plated for outputs
    One (1) Locking Barrel Jack 2.1mm Power Connector

  • Cable Equalization

    12G-SDI up to 230' (70m)
    6G-SDI up to 330' (100m)
    3G-SDI up to 594' (180m)

  • Cable

    RG-59 or better cable required

  • Power Supply

    One (1) 110-240V/5VDC power supply with interchangeable blades

  • Power Consumption

    3.0 Watt (Max)

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
    Humidity: Up to 90% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    3.19 x 1.61 x 0.95" (81 x 41 x 24mm)

  • Weight

    5.64 oz (160g)

  • UPC Code

    627699007273

About Muxlab 5727

The 12G-SDI 1x4 Splitter, 4K/60 (500727) allows one (1) 12G/6G/3G/HD/SD-SDI source to be distributed and amplified to up to four (4) 12G/6G/3G/HD/SD-SDI displays. The splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-SDI), 720p/1080i (HD-SDI), 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 (12G-SDI). The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and regenerates the signal at the output for extending. distances between source and displays.

Applications:
• Video production
• Post production
• Broadcasting
• Studio to Studio
• Live event
• Mobile video
• Medical imaging display

Muxlab 5727 Features

  • Distribute one 12G-SDI source to four displays
  • Supports up to 4K @ 60Hz, including 12G/6G/3G/HD/SD-SDI
  • Automatically detects re-clocks and regenerates the 12G/6G/3G/HD/SD-SDI signal
  • LED diagnostic

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Distribute 4K UHD video easily with this 1x4 SDI splitter for crystal-clear visuals.
  • Supports up to 12G-SDI, ensuring compatibility with the latest high-definition cameras.
  • Use with cameras, monitors, and projectors; this display splitter supports multiple devices.
  • Achieve optimal signal clarity with auto signal detection for seamless presentations.
  • Enjoy transparent transmission; this splitter maintains original audio/video quality.
  • Extend your signal reach up to 230' with reliable cable equalization for 12G-SDI.

What's in the box:

  • Muxlab 1x4 4K UHD 12G-SDI Splitter
  • Muxlab 2 Year Limited Warranty
