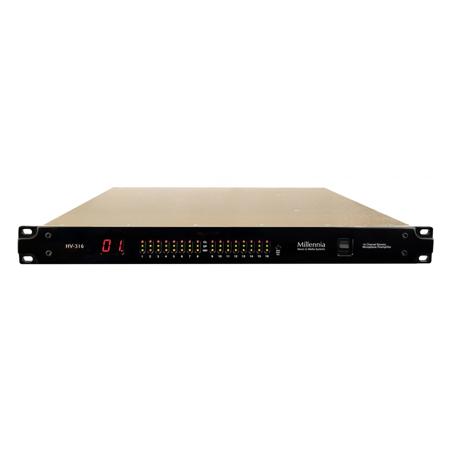

Millennia HV-316 16-Channel Remote Dante Network Microphone Preamplifier
See all Millennia items

Millennia HV-316 16-Channel Remote Dante Network Microphone Preamplifier

SKU: MLHV31616 MFR: HV-316/16
Be the first to review this itemAsk a Question
$5,829.00
OR
$486/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine audio with the Millennia HV-316's ultra-low noise microphone preamplifier.
  • Experience exceptional clarity with a wide frequency response from sub 8 Hz to beyond 200 kHz.
  • Achieve precise gain staging with 1 dB steps, up to 64 dB, for optimal recording levels.
  • Integrate seamlessly into your Dante network for remote control and flexible audio routing.
  • Ensure reliable performance with high common mode rejection, minimizing unwanted interference.
  • Record confidently with +48V phantom power, supporting a variety of condenser microphones.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Millennia HV-316 Specifications

General

General

Jump to...

  • Minimum Gain

    1 dB

  • Maximum Gain (1 dB per step)

    64 dB

  • Attenuator Pad

    -20 dB

  • Frequency Response

    Sub 8 Hz to beyond 200 kHz (analog)
    (analog output option)

  • Noise

    -130 dB EIN
    (60 dB Gain, 10 Hz - 30 kHz, Inputs common)

  • Total Harmonic Distortion + Noise

    < .005%, (<.001% Typ.)
    (35 dB Gain)

  • Intermodulation Distortion

    < .0009%
    (50 Hz & 7 kHz), 35 dB Gain, 0 dBFS

  • Phase Response

    < 2 degrees deviation
    (35 dB Gain, 50 Hz - 20 kHz bandwidth, 0 dBFS)

  • Common Mode Rejection Ratio

    > 65 dB, Typ > 85 dB
    (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.)

  • Slew Rate (35 dB Gain)

    > 25 Volts per microsecond

  • Maximum Input Level (20 Hz - 40 kHz)

    +34 dBu (pad in)

  • Maximum Output Level (20 Hz - 40 kHz)

    +22 dBu (analog output option)

  • Phantom Input Impedance (1 kHz)

    6,750 ohms

  • Output Impedance

    24.3 Ohms (analog output option)

  • Phantom Powering

    +48 V dc, +/- 2 V dc, 15 ma per channel in reserve

  • Power Consumption

    100 watts maximum
    AC: Universal 80-264V, 47-63 Hz
    DC: 12V

Dante

Jump to...

  • Physical Layer

    Ethernet

  • Connectors

    Dual RJ-45 (Primary / Secondary)

  • Cable Quality

    CAT-5e or better

  • Transmission Speed

    1Gbps

  • Supported Sample Rates

    44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

  • Minimum Dante Latency

    250 microS
    Supported Modes Redundant / Switched

  • AES67 Support

    Planned (Dante embedded)

  • Certifications

    FCC CFR 47 Part 15 Subpart B, Class A
    ICES-03 Issue 6 (Canada)
    ANSI C63.4-2014
    EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013

  • Compliance

    RoHS 2011/65/EU (and delegated directive (EU) 2015/863)
    WEEE 2012/19/EU + REACH

  • Environmental

    -10o to +65oC / +15o to +150oF (fans enabled)
    -10o to +45oC / +15o to +115oF (fans disabled)
    10% to 80% RH
    Maximum Altitude: 5,000 meters

About Millennia HV-316

Based on years of pro client suggestions, the HV316 is designed for harsh environments and mission critical applications: live touring racks, scoring stages, remote recording trucks, large studio complexes, sampler houses, hotrack installs, concert halls, outdoor facilities, schools and networked music venues, and environmental recording (12V battery operation).

Millennia HV-316 Features

  • 16 channels of pristine Millennia HV-3 microphone preamplifiers in a road-hardened 1U chassis
  • Effortless, vividly realistic, dynamically uniform HV-3 musical performance
  • Dante network output standard -- analog output option.
  • Both 12VDC (battery) and 80-264VAC worldwide powering
  • Redundant power supply for fail-safe, glitch-free operation
  • Paralleled next-generation AKM A-to-D conversion assuring >120db dynamic range
  • Designed for ultra-high-temperature continuous operation (65C/150F)
  • RF "pi filter" shielding provided on analog and digital feeds, destroys mobile interference
  • Control up to 256 channels at once via conventional Ethernet.
  • +34dbu input headroom for use in the most extreme audio environments
  • Matched discrete-octet transistor gain topology, the classic Millennia HV-3 double-balanced circuit
  • Elogic Windows third-generation software offers total control for both HV-316 and HV-3R on the same network
  • High-definition meters, grouping, linking, scene management, temperature monitoring
  • Entirely balanced audio path with precision components maintains signal integrity: THD under 10 PPM (< .001%)
  • Laser-trimmed FET-based output stage (analog output option) drives 1000-foot (300m) cable runs with ease
  • All channels matched to 0.08 db
  • Advanced power supply rated for 650,000 hours MTBF operation
  • Aluminum 16-gauge rack chassis, ultra-lightweight, just 10 pounds
  • Gorgeous NC-machined and hand-polished front panel billet aluminum
  • Lovingly hand-built and quality-assured in Northern California USA

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Capture pristine audio with the Millennia HV-316's ultra-low noise microphone preamplifier.
  • Experience exceptional clarity with a wide frequency response from sub 8 Hz to beyond 200 kHz.
  • Achieve precise gain staging with 1 dB steps, up to 64 dB, for optimal recording levels.
  • Integrate seamlessly into your Dante network for remote control and flexible audio routing.
  • Ensure reliable performance with high common mode rejection, minimizing unwanted interference.
  • Record confidently with +48V phantom power, supporting a variety of condenser microphones.

What's in the box:

  • Millennia HV-316 16-Channel Remote Dante Network Microphone Preamplifier
  • UL Approved Power Cord
  • Quick Start Guide
  • Millennia 1 Year Limited Warranty
