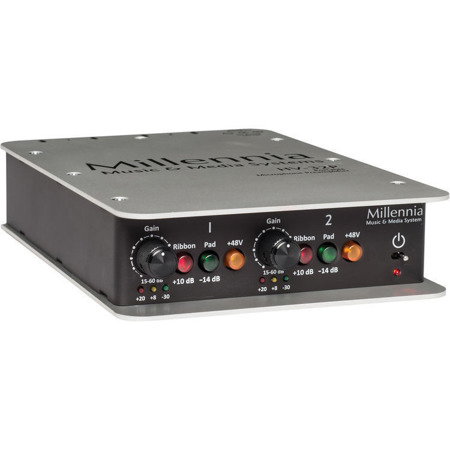

Millennia HV-32P Portable Two Channel Microphone Preamplifier

SKU: MLHV32P MFR: HV-32P
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Millennia preamp's ultra-low noise circuitry.
  • Achieve versatile sound shaping with a wide 60dB gain range on this preamp.
  • Experience exceptional clarity using this microphone preamplifier for studio recording.
  • Ensure optimal signal transfer with precise impedance matching for dynamic mics.
  • Enjoy reliable performance with the robust build quality of this preamp for years.
  • Utilize the HV-32P in ribbon mode to get 70dB of gain for quiet sound sources.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CAMERON F : QuietJIM M : It's top of the line - no color - just the actual beautiful sound you heard.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Millennia HV-32P Specifications

  • Number of Channels

    2

  • Gain

    Minimum Gain: 14.5dB, 1dB with pad
    Maximum Gain (Continuously Variable): 60dB (70dB in Ribbon Mode)

  • Frequency Response

    At -3dB: <10Hz to >200kHz
    Typical -1.0dB at 10Hz
    Typical -1.5dB at 200kHz

  • Noise

    At 60dB Gain, 10Hz to 30kHz, Inputs Common: -130dB EIN

  • Total Harmonic Distortion/Noise

    At 35dB Gain, 10Hz to 20kHz bandwidth, +24dBu Out: <0.003%, Typical <0.001%

  • Intermodulation Distortion

    At (50Hz & 7kHz) 35dB Gain: <0.0006% +12dBu Out
    <0.001% +20dBu Out

  • Phase Response

    At 35dB Gain, 50Hz to 20kHz bandwidth, +27dBu Out: <2 degrees deviation

  • Common Mode Rejection Ratio

    At 35dB Gain, 10Hz to 20kHz bandwidth, 100 mV C.M.: >65dB, Typical >85dB

  • Slew Rate

    At 35dB Gain, +24dBu Out: >25 V per Musecond

  • Maximum Input Level

    At 20Hz to 40kHz: +12dBu at 0.02% THD+N
    +18dBu at 0.02% THD+N with pad

  • Maximum Output Level

    At 1kHz at 35dB of Gain, THD+N is: <0.001% at +26dBu output
    <0.05% at +28dBu output

  • Input Impedance

    Phantom Input Impedance (at 1kHz): 2,210Ohms

  • Output Impedance

    2x 24.3Ohms

  • Phantom Power

    48 VDC +/-2 VDC

  • Dimensions (W x H x D)

    5.67 x 1.69 x 8.19" (144.02 x 42.93 x 208.03mm)

  • Weight

    2lbs (0.91kg)

About Millennia HV-32P

Experience the superior audio quality with the HV-32P Portable Two Channel Microphone Preamplifier, a must-have for audio professionals and enthusiasts alike. This device features a continuously variable gain control, designed to provide a high gain jump near full clockwise for low-level signals, ensuring optimal sound quality under varying conditions.

The HV-32P is equipped with a DC-coupled ribbon mic that comes with a 10dB gain boost setting, making it ideal for use with any Ribbon or Dynamic mic, such as an SM-57. Please note that mics requiring phantom power will not operate in this mode.

This preamplifier also offers a 14dB Pad that attenuates the input signal after the gain stage, enhancing the overall sound control. It also comes with a 48V phantom power supply, further expanding its compatibility with various microphones.

The HV-32P is powered by a 12V DC, 5 amp, universal voltage (100-240 VAC) line lump power supply, which is included with the unit. It can also be powered by Li-Ion battery packs that produce 14.8V DC and automatically cut off at 12V DC, ensuring the unit's safety and longevity.

For mounting, the HV-32P can be fitted onto a rack tray, with a maximum MidAtlantic screw length of 3/16" (flathead 6-32). Please be cautious not to use a longer screw as it may damage the circuit board.

As with all electronic devices, the HV-32P should not be used near water or in unusually moist environments to prevent damage. It's also crucial to prevent liquids or any other materials from spilling or falling into the unit.

For your safety, the grounding pin of the 3-wire power cable (included with 110 Volt units) should be inserted into a grounding type 3-pin power outlet. If you are unable to insert the plug into an existing outlet, we recommend contacting an electrician to install a properly grounded 3-pin power outlet, preferably one with OFI / CFI protection, if available.

In conclusion, the HV-32P Portable Two Channel Microphone Preamplifier is a versatile and reliable choice for those seeking to enhance their audio recording and broadcasting experiences.

Millennia HV-32P Features

  • High-quality HV-32P Portable Two Channel Microphone Preamplifier for superior audio recording
  • Features continuously variable gain control for optimal sound quality
  • Equipped with DC-coupled ribbon mic with 10dB gain boost setting, ideal for any Ribbon or Dynamic mic
  • Includes 14dB Pad and 48V phantom power supply for enhanced sound control and microphone compatibility
  • Powered by a universal voltage line lump power supply or Li-Ion battery packs for flexibility and convenience
  • Designed with safety features including grounding pin for 3-pin power outlets and automatic cut-off circuit for battery packs

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Millennia preamp's ultra-low noise circuitry.
  • Achieve versatile sound shaping with a wide 60dB gain range on this preamp.
  • Experience exceptional clarity using this microphone preamplifier for studio recording.
  • Ensure optimal signal transfer with precise impedance matching for dynamic mics.
  • Enjoy reliable performance with the robust build quality of this preamp for years.
  • Utilize the HV-32P in ribbon mode to get 70dB of gain for quiet sound sources.

What's in the box:

  • Millennia HV-32P Portable Two Channel Microphone Preamplifier
  • Power Cable
  • Millennia 1 Year Limited Warranty
