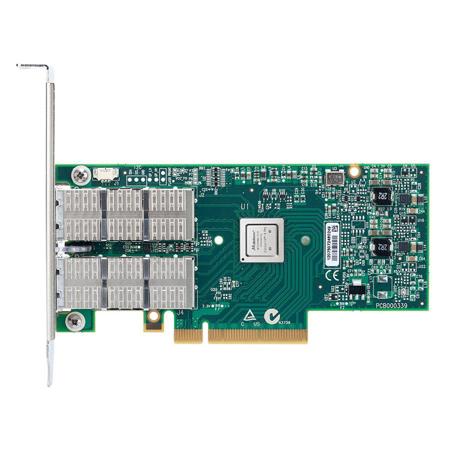

Mellanox ConnectX-3 Pro Dual-Port VPI Adapter Card

Mellanox ConnectX-3 Pro Dual-Port VPI Adapter Card, 56GB/s QSFP FDR IB and 40/56GBE PCIE3.0 Ports

SKU: MLMCX354AFCC
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Mellanox ConnectX-3 Pro Specifications

  • Interfaces/Ports: Host Interface

    PCI Express x8

  • Interfaces/Ports: Network (RJ-45)

    No

  • Interfaces/Ports: USB

    No

  • Interfaces/Ports: Serial Port

    No

  • Interfaces/Ports: Ethernet AUI

    No

  • Interfaces/Ports: XJACK

    No

  • Interfaces/Ports: PoE (RJ-45) Port

    No

  • No. of I/O Expansion Slots

    2

  • I/O Expansion Slot Type

    QSFP

  • Number of QSFP Slots

    2

  • Network Technology

    10GBase-X

  • Form Factor

    Plug-in Card

  • Device Supported

    Switch

  • Platform Supported

    PC

  • Connector

    QSFP+ InfiniBand (Copper and optical)

  • Protocol Support: InfiniBand

    IBTA v1.2.1

  • Protocol Support: Auto-Negotiationa

    1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane) port

  • Protocol Support: Ethernet

    10GBASE-CX4, 10GBASE-R, and 1000BASE-R, 40GBASE-R4

  • Protocol Support: Data Rate

    Up to 56Gb/s FDR InfiniBand
    1/10/40/56Gb/s Ethernet

  • Protocol Support: Voltage

    12V, 3.3V

  • Typ Power

    Passive Cables 8.24W

  • Max Power

    Passive Cables 8.99W
    1.5W (available through QSFP+ port)

  • Temperature

    Operational 0 to 55 deg. C / 32 to 122 deg. F
    Non-operational 0 to 70 deg. C / 32 to 158 deg. F

  • Humidity

    90% relative humidity

  • Air Flow

    200LFM

  • Safety

    IEC/EN 60950-1
    ETSI EN 300 019-2-2
    IEC 60068-2- 64, 29, 32

  • RoHS

    RoHS-R6

  • Certifications & Standards

    IEEE Standards, 802.3ae, 802.3ba, 802.3ad, 802.3az, 802.1Q, .1P, 802.1Qau, 802.1Qbg, P802.1Qaz, P802.1Qbb

  • Green Compliant

    Yes

  • Dimensions

    2.71 x 5.6" / 68.83 x 142.24mm

About Mellanox ConnectX-3 Pro

Connectx-3 Pro adapter cards with 10/40/56 Gigabit Ethernet connectivity with hardware offload engines to Overlay Networks ("Tunneling"), provide the highest performing and most flexible interconnect solution for PCI Express Gen3 servers used in public and private clouds, enterprise data centers and high performance computing. Public and private cloud clustered databases, parallel processing, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Mellanox ConnectX-3 Pro Dual-Port VPI Adapter Card
  • Mellanox 1 Year Hardware Limited Warranty
