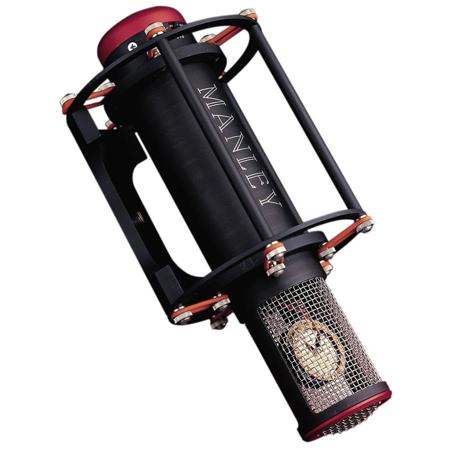

Manley Labs Reference Cardioid Tube Microphone

SKU: MLREFCARD MFR: REFCARD
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Manley Labs tube microphone, ideal for vocals.
  • Experience low noise and high sensitivity with this condenser microphone's design.
  • Achieve professional studio quality recordings with its fixed cardioid polar pattern.
  • Enjoy robust build quality and lasting performance from this reference microphone.
  • Utilize balanced XLR connectivity for seamless integration into your recording setup.
  • Get premium sound without compromise, offering exceptional value in its price range.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Manley Labs Reference Cardioid Specifications

  • Capsule

    Center-fixed large diaphragm capacitor

  • Polar Pattern

    Fixed cardioid

  • Diaphragm

    Diaphragm Size: 1"; 1.25" overall
    Diaphragm Thickness: 6 micron; gold sputtered

  • Frequency Response

    10Hz to 30kHz

  • Maximum Input Sound Level

    150dB SPL at capsule

  • Actual output impedance

    200Ohms

  • Sensitivity

    17mV/Pa

  • Amplifier Type

    2x Triode gain block Lo Z output

  • Tube Type

    1x 12AT7

  • Output Type

    Transformer coupled

  • Output Polarity

    Balanced XLR, pin 2 hot, pin 3 low

  • Amplifier Distortion

    < .05%

  • Amplifier Noise

    -120dB EIN (tube dependent)

  • Body Material

    Black anodized aluminum

  • Power Supply

    70mA at 120VAC (8.4W)
    60Hz

  • Fuse:

    250mA at 100 to 120V
    125mA at 220 to 240V operation

  • Dimensions (W x H x D)

    Mic: 4.5 x 9.7 x 4.5" / 11.43 x 24.64 x 11.43cm
    PSU: 5.0 x 8.2 x 3.4" / 12.70 x 20.83 x 8.64cm

  • Weight

    Mic: 2.25lbs / 1.02kg
    PSU: 2.5lbs / 1.13kg

  • UPC Code

    890833000298

About Manley Labs Reference Cardioid

What sets the Manley Reference Cardioid Tube Microphone apart is its unparalleled ability to deliver a polished, professional sound straight from the box. Esteemed by leading producers and voiceover professionals, this microphone is a staple in modern pop music production, offering a sound that is both flattering and commanding, with a presence that feels larger than life.

Crafted with meticulous attention to detail, the Manley Reference Cardioid Tube Microphone boasts an all-tube triode design featuring a 12AT7 vacuum tube, ensuring high-quality, warm sound reproduction that tube microphones are renowned for. The microphone comes with a -10 dB switchable pad, providing versatility and control over the input level, making it suitable for a wide range of recording situations.

For those seeking exceptional sonic matching, selected matched pairs are available, perfect for stereo recording applications. The outboard power supply can be configured for various voltages (100V, 120V, or 220-240VAC), ensuring compatibility with the electrical standards of the original destination country. Additionally, the mains voltage can be adjusted to suit different regions through internal jumpers and fuse value changes.

Sharing electronic characteristics with the esteemed Gold Reference Series, the Reference Cardioid Tube Microphone features a fixed cardioid-only capsule with a robust 6-micron gold sputtered diaphragm. This design choice results in a sound that echoes the revered qualities of vintage European tube microphones, such as the iconic U47, when they were first introduced.

The microphone's rich tonal balance and smooth character make it an excellent choice for a variety of instruments, including guitars, drum overheads, saxophones, and particularly vocals. Its design effectively counters plosives and sibilance, while the proximity effect adds warmth and depth to the sound.

If your current microphone setup requires heavy compression or significant EQ adjustments to achieve a robust and clear sound, the Manley Reference Cardioid Tube Microphone may be the solution you've been searching for. It's designed to deliver a sound that's both intimate and clean without the need for excessive post-processing.

For those who aspire to the legendary vocal presence of Don LaFontaine, the Manley Reference Cardioid Tube Microphone is the same tool used by the voiceover icon. It's not just about having a powerful voice; it's also about having the right microphone to capture it with precision and grace.

Manley Labs Reference Cardioid Features

  • All-Tube triode design utilizes 12AX7 or 7025EH (Previous versions used 12AT7 and 6072.)
  • -10 dB switchable pad
  • Outboard Power Supply is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
  • Operating Mains Voltage changeable with power transformer re-wiring via internal jumpers and fuse value change.

Key Features

  • Capture pristine audio with this Manley Labs tube microphone, ideal for vocals.
  • Experience low noise and high sensitivity with this condenser microphone's design.
  • Achieve professional studio quality recordings with its fixed cardioid polar pattern.
  • Enjoy robust build quality and lasting performance from this reference microphone.
  • Utilize balanced XLR connectivity for seamless integration into your recording setup.
  • Get premium sound without compromise, offering exceptional value in its price range.

What's in the box:

  • Manley Labs Reference Cardioid Tube Microphone
  • Power Supply
  • 30' Power Cable (Mic to Power Supply)
  • IEC Power Cable
  • Suspension Shock Mount
  • Leather Capsule Protector
  • Locking Carrying Case
  • Manley Labs 90 Day Limited Warranty
