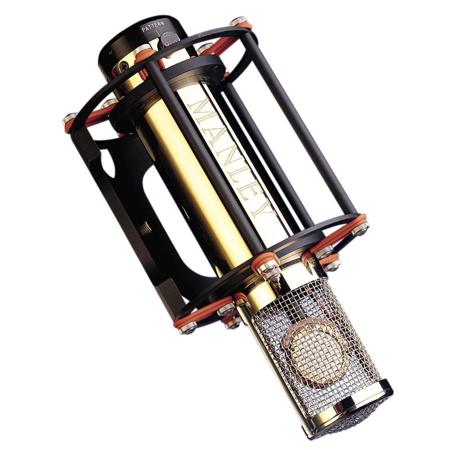

Manley Labs Reference Mono Gold Multi-Pattern Microphone

SKU: MLREFGOLD MFR: REFGOLD
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this gold multi-pattern condenser microphone, perfect for vocals.
  • Achieve professional studio sound with extremely low noise, enhancing your recordings' clarity.
  • Enjoy versatile recording options using continuously variable polar patterns from omni to figure 8.
  • Experience unmatched durability with its 24 karat gold-plated brass body, built to last for years.
  • This reference microphone ensures high connectivity with balanced XLR output for seamless integration.
  • The large diaphragm condenser captures every nuance, offering exceptional sound quality for instruments.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Manley Labs Reference Mono Gold Specifications

  • Capsule

    Dual large diaphragm capacitor

  • Polar Pattern

    Continuously Variable: Omni to Cardioid to Figure 8

  • Diaphragm

    Diaphragm Size: 1"; 1.25" overall
    Diaphragm Thickness: 5 micron; gold sputtered

  • Frequency Response

    Mic: 10Hz to 30kHz
    Amplifier: 10Hz to 60kHz

  • Maximum Input Sound Level

    150dB SPL at capsule

  • Sensitivity

    17mV/Pa

  • Amplifier Type

    Dual Triode gain block Lo Z output

  • Tube Type

    1x 12AT7

  • Output Type

    Transformer coupled

  • Output Polarity

    Balanced XLR, pin 2 hot, pin 3 low

  • Actual Output Impedance

    200Ohms

  • Amplifier Distortion

    < .05%

  • Amplifier Noise

    -120dB EIN (tube dependent)

  • Body Material

    24 karat gold over machined brass

  • Power Supply

    70mA at 120VAC (8.4W)
    60Hz

  • Mains Voltage Frequency

    50 to 60Hz

  • Fuse

    250mA at 100 to 120V
    125mA at 220 to 240V operation

  • Dimensions (W x H x D)

    Mic: 4.5 x 9.7 x 4.5" / 11.43 x 24.64 x 11.43cm
    PSU: 5.0 x 8.2 x 3.4" / 12.70 x 20.83 x 8.64cm

  • Weight

    Mic: 2.25lbs / 1.02kg
    PSU: 2.5lbs / 1.13kg

  • UPC Code

    890833000304

About Manley Labs Reference Mono Gold

When it comes to capturing the true essence of sound, the Manley Reference Gold Multi-Pattern Microphone stands as an unrivaled choice. This high-quality, professional-grade microphone is designed with a nimble CK12-style American-made capsule and an open grille, allowing it to delve deep into the heart of any room and pick up the finest nuances and subtleties that other microphones might overlook.

This versatile microphone is equipped with a continually adjustable pickup pattern design, making it adaptable to a wide range of recording situations. The all-tube triode design 12AT7, coupled with a -10 dB switchable pad, ensures the delivery of authentic, unaltered sound.

The Manley Gold Reference Multi-Pattern Microphones are a testament to the pinnacle of audio recording technology. These microphones feature a unique design of large capsules (1.25 inch overall, 1 inch diaphragm diameter), precision-engineered using state-of-the-art micro-milling machinery in California. The capsule rings and back-plates are crafted from solid brass, while the gold diaphragm film is sourced from Germany and tensioned using proprietary techniques by David Josephson. This meticulous process guarantees capsule-to-capsule consistency, along with a superb ultra-high frequency response.

The electronics in the Manley Reference Series Microphones are built around two triodes in cascade, forming an entire gain-block. The output is coupled through a top-tier Manley output transformer, featuring nickel laminations with "hum bucking" bi-filar windings, encased in mu-metal.

The polar pattern control is continuously variable between OMNI, CARDIOID, and FIGURE 8 positions, significantly enhancing the microphone's versatility. The open weave stainless-steel grille for the capsule window ensures that all the highs reach the capsule unimpaired, allowing the engineer to control the proximity effect and achieve the desired character.

The microphone body, machined from brass for excellent shielding properties, is polished to a high lustre and plated with 24 karat gold for a striking finish. The proprietary precision suspension system, provided with each Reference Microphone, ensures the capsule is mounted onto a neoprene-rubber shock-mount for optimal performance.

The Manley Reference Gold Multi-Pattern Microphone is a reliable, durable, and versatile choice for professional recording studios, live performances, and any application where superior audio quality is paramount.

Manley Labs Reference Mono Gold Features

  • High-quality, professional-grade microphone with CK12-style American-made capsule
  • Versatile recording capabilities with continuously adjustable pickup pattern design
  • Large capsules precision-engineered using state-of-the-art micro-milling machinery
  • All-tube triode design 12AT7 and -10 dB switchable pad for authentic sound reproduction
  • Polished brass body plated with 24 karat gold for optimal shielding and impressive finish
  • Proprietary precision suspension system with neoprene-rubber shock-mount for optimal performance

Key Features

  • Capture pristine audio with this gold multi-pattern condenser microphone, perfect for vocals.
  • Achieve professional studio sound with extremely low noise, enhancing your recordings' clarity.
  • Enjoy versatile recording options using continuously variable polar patterns from omni to figure 8.
  • Experience unmatched durability with its 24 karat gold-plated brass body, built to last for years.
  • This reference microphone ensures high connectivity with balanced XLR output for seamless integration.
  • The large diaphragm condenser captures every nuance, offering exceptional sound quality for instruments.

What's in the box:

  • Manley Labs Reference Mono Gold Multi-Pattern Microphone
  • Power Supply
  • 30' Power Cable (Mic to Power Supply)
  • IEC Power Cable
  • Suspension Shock Mount
  • Leather Capsule Protector
  • Locking Carrying Case
  • Manley Labs 90 Day Limited Warranty
