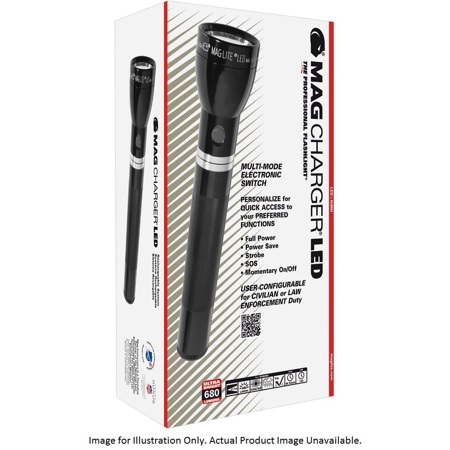

MagLite Mag Charger 643 Lumen LED Rechargeable Flashlight System #5

You have just made an investment in one of the most highly-advanced precision instruments in illumination technology. The Mag Charger LED Rechargeable Flashlight System was formulated on precision and quality. Derived from many years of experience in the precise world of fine machine tools, their flashlights quickly became recognized for form and function and most importantly to you, the consumer, for quality and dependability. Taking a few moments to read this manual and familiarizing yourself with the Mag Charger LED Rechargeable Flashlight System will help to insure years of superior service and satisfaction.

• Tempered aluminum alloy external components
• Permanently engraved serial number for registration and identification
• O-ring sealed throughout
• Polycarbonate Lens
• Highly polished reflector delivers superior optical performance
• Corrosion resistant metal springs throughout
• Flashlight can be charged in almost any position
• Reverse voltage protected (batteries in backwards) Input and Output
• Multi-color LED charge indicator
• Mounts in almost any position

Face Cap Assembly (lens and reflector)
The Face Cap Assembly is removable. The reflector assembly is factory sealed and should not be removed from face cap.

• Lens: The polycarbonate lens on the Mag Charger LED Rechargeable Flashlight System is an integral part of the optical system.
• Reflector: Scientifically designed metalized reflector.

Head
The head is not removable; any attempt to do so will only damage its function.

• Focusing Beam: Quick focusing spot-to-flood beam. Operates with a simple quarter turn of the flashlight head assembly

Switch
Sealed, flush-with-the-barrel electronic switch provides access to five different functions - Full Power, Low Power, Strobe (12x/sec), Eco and Momentary On/Off.

Serial Number
Permanently engraved serial number for registration and identification.

Durable Finish
The barrel and head assembly are of Hard Type III anodized aircraft aluminum inside and out. With minimum care, your flashlight will help maintain its rich black appearance. (Direct constant exposure to sunlight will fade any color.)

Charging Cradle
Constructed of engineering grade thermoplastics, this Charging Cradle unit has many features. Input can be from 12-14 volts (automotive installations) or 120-240 volts AC, when used with a converter for charging indoors.
