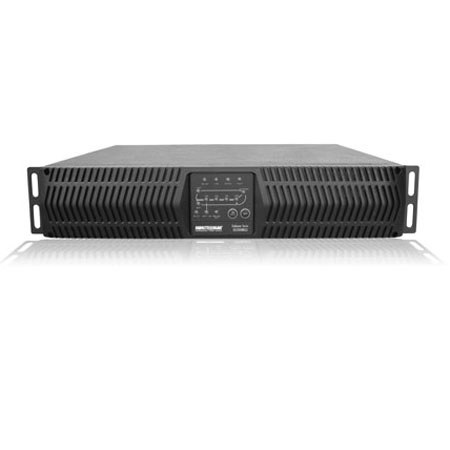

Minuteman Endeavor ED1000RM(T)2U - 1000VA/800W On-line UPS
See all Minuteman items

Minuteman Endeavor ED1000RM(T)2U - 1000VA/800W On-line UPS, 6 Outlets, 2U Rack/Tower

SKU: MNED1000RM2U

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Minuteman ED1000RMT2U Specifications

  • Maximum Power Capacity (VA/Watts)

    1000/800

  • Topology

    On-line Uninterruptible Power Supply

  • Power Factor

    0.8

  • Battery and Surge Protected Receptacles

    [6]5-15R ([4] 6-15R)

  • Input Connection (with 10 ft power cord)

    5-15P (6-15P)

  • Mounting/Installation

    Rackmount, tower and wallmount

  • Input: Nominal Voltage

    120VAC (208VAC)

  • Input: Voltage Range

    80-138VAC (160-280VAC)

  • Input: Frequency Range

    50/60Hz +/-6Hz Auto-sensing

  • Input: Power Factor Correction

    =97% at full load

  • Output: Voltage /Frequency Range

    Non-battery Operation: 117.6 - 122.4VAC (204 - 212VAC) / 50/60Hz +/-6Hz

  • Output: Wave Form

    Non-battery Operation: True sine wave

  • Output: Efficiency (Line Mode)

    Non-battery Operation: >87% (full load)

  • Output: Nominal Voltage

    Battery Operation: 120VAC (208VAC), User selectable: 110VAC (240VAC)

  • Output: Voltage Regulation

    Battery Operation: Nominal +/-2% until low battery warning

  • Output: Frequency

    Battery Operation: 50/60Hz +/-0.1Hz unless synchronized to line

  • Output: Voltage T.H.D

    Battery Operation: =3% at full rated linear load

  • Output: Dynamic Response

    Battery Operation: +/-5% at 100% load change in 30ms

  • Output: Transfer Time

    Battery Operation: 0ms

  • Output: Runtime

    Battery Operation: 13/4 (Half Load/Full Load in minutes)

  • Battery Type

    Sealed, non-spillable, maintenance free, value regulated lead acid

  • Typical Recharge Time

    8 hours from total discharge

  • 8 hours from total discharge

    3-5 years, depending on discharge cycles and ambient temperature

  • System Voltage

    24VDC

  • Surge Energy Rating (Joules)

    800J

  • Surge Current Capability

    6500Amps total

  • Surge Response time

    0ns (instantaneous) normal mode; 5ns common mode

  • Noise Filter

    Normal and common mode EMI/RFI suppression

  • Audible Noise at 1 m (3 ft.)

    <45dBA

  • Operating (max)/Storage Temperature

    +32 to +104 Deg.F (0 to 40 Deg.C) / +5 to +113 Deg.F (-15 to +45 Deg.C)

  • Operating/Storage Humidity

    95% non-condensing

  • Operating/Storage Elevation

    0 to 10,000 ft (0 to 3,000 m) / 0 to 50,000 ft (0 to 15,000 m)

  • Safety and Approvals

    RoHS Compliant, UL, cUL, CE, FCC Class B for 1000KVA, Class A for 1500, 2000, 3000KVA and Battery Packs

  • Dimensions (H x W x D)

    3.5 x 17.3 x 13.1" / 89 x 440 x 335 mm

  • Weight

    28.6 lbs / 12.9 kg

  • UPC Code

    784755152459

About Minuteman ED1000RMT2U

The Minuteman ED1000RM2U is a 1000 VA On-line Rack/Wall/Tower UPS with 6 outlets that combines double conversion technology with industry-leading features in a versatile case design which allows the unit to be installed in many different formats and operating environments. The ED1000RM2U produces an electrical signal that does not vary from nominal voltage by more than 2%. Tightly regulating the output voltage increases the quality of power to connected equipment adding to its life expectancy, which lowers the total cost of ownership to users.

The ED1000RM2U provides users with the ability to communicate with the UPS simultaneously through three separate protocols: RS-232, USB and Ethernet/SNMP. The ED1000RM2U is designed to proactively notify users of any impending faults or failures with the UPS. This allows for preemptive repair or replacement of components or batteries preventing unexpected downtime caused by the UPS.

Minuteman ED1000RMT2U Features

  • Floor-standing tower, 19-inch rack and cabinet installation kits included
  • 23-inch rack or cabinet installation kit optional
  • Wallmount installation kit optional
  • 3.5-inch (2U) rack/tower case style
  • Up to a 0.8 power factor (in watts) for larger capacities
  • Output receptacle control for non-critical load shedding capability
  • Extended runtime using external battery packs
  • Independent battery pack chargers to reduce battery recharge times
  • Simultaneous RS-232, USB and SNMP communications
  • Minuteman SentryPlus UPS monitoring and control software
  • Front panel display with load/battery meter and status indicators
  • Dedicated remote Emergency Power Off (EPO) port
  • Hot-swappable batteries
  • RoHS compliant

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Floor-standing tower, 19-inch rack & cabinet installation kits included
  • 23-inch rack or cabinet installation kit optional
  • Wallmount installation kit optional
  • 3.5-inch (2U) rack/tower case style
  • Up to a 0.8 power factor (in watts) for larger capacities
  • Output receptacle control for non-critical load shedding capability

What's in the box:

  • Minuteman Endeavor 1000VA On-line 2U Rack/Wall/Tower UPS
  • Cabinet Installation Kits
  • Free SentryPlus Software
  • Quick Installation Guide
  • Minuteman 3 Year Warranty
