Minuteman Endeavor ED1500RM(T)2U - 1500VA/1200W On-line UPS
See all Minuteman items

Minuteman Endeavor ED1500RM(T)2U - 1500VA/1200W On-line UPS, 6 Outlets, 2U Rack/Tower

SKU: MNED1500RM2U

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Minuteman ED1500RMT2U Specifications

  • Maximum Power Capacity (VA/Watts)

    1500/1200

  • Topology

    On-line Uninterruptible Power Supply

  • Power Factor

    0.8

  • Battery and Surge Protected Receptacles

    [6]5-15R ([4] 6-15R)

  • Input Connection (with 10 ft power cord)

    5-15P (6-15P)

  • Mounting/Installation

    Rackmount, tower and wallmount

  • Input: Nominal Voltage

    120VAC (208VAC)

  • Input: Voltage Range

    90-138VAC (160-280VAC)

  • Input: Frequency Range

    50/60Hz +/-6Hz Auto-sensing

  • Input: Power Factor Correction

    =97% at full load

  • Output: Voltage /Frequency Range

    Non-battery Operation: 117.6 - 122.4VAC (204 - 212VAC) / 50/60Hz +/-6Hz

  • Output: Wave Form

    Non-battery Operation: True sine wave

  • Output: Efficiency (Line Mode)

    Non-battery Operation: >87% (full load)

  • Output: Nominal Voltage

    Battery Operation: 120VAC (208VAC), User selectable: 110VAC (240VAC)

  • Output: Voltage Regulation

    Battery Operation: Nominal +/-2% until low battery warning

  • Output: Frequency

    Battery Operation: 50/60Hz +/-0.1Hz unless synchronized to line

  • Output: Voltage T.H.D

    Battery Operation: =3% at full rated linear load

  • Output: Dynamic Response

    Battery Operation: +/-5% at 100% load change in 30ms

  • Output: Transfer Time

    Battery Operation: 0ms

  • Output: Runtime

    Battery Operation: 13/4 (Half Load/Full Load in minutes)

  • Battery Type

    Sealed, non-spillable, maintenance free, value regulated lead acid

  • Typical Recharge Time

    8 hours from total discharge

  • 8 hours from total discharge

    3-5 years, depending on discharge cycles and ambient temperature

  • System Voltage

    48VDC

  • Surge Energy Rating (Joules)

    800J

  • Surge Current Capability

    6500Amps total

  • Surge Response time

    0ns (instantaneous) normal mode; 5ns common mode

  • Noise Filter

    Normal and common mode EMI/RFI suppression

  • Audible Noise at 1 m (3 ft.)

    <45dBA

  • Operating (max)/Storage Temperature

    +32 to +104 Deg.F (0 to 40 Deg.C) / +5 to +113 Deg.F (-15 to +45 Deg.C)

  • Operating/Storage Humidity

    95% non-condensing

  • Operating/Storage Elevation

    0 to 10,000 ft (0 to 3,000 m) / 0 to 50,000 ft (0 to 15,000 m)

  • Safety and Approvals

    RoHS Compliant, UL, cUL, CE, FCC Class B for 1000KVA, Class A for 1500, 2000, 3000KVA and Battery Packs

  • Dimensions (H x W x D)

    3.5 x 17.3 x 17 " / 89 x 440 x 432 mm

  • Weight

    46.2 lbs / 21 kg

  • UPC Code

    784755152466

About Minuteman ED1500RMT2U

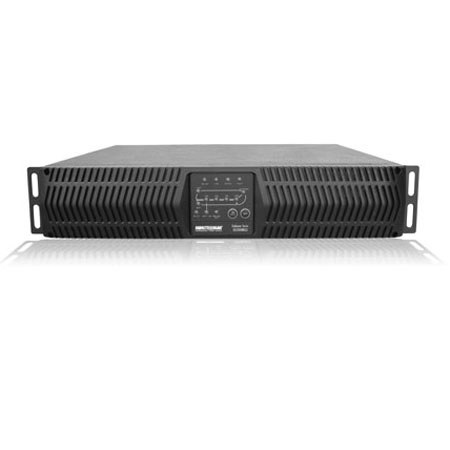

The Minuteman ED1500RM2U is a 1500 VA On-line Rack/Wall/Tower UPS with 6 outlets that combines double conversion technology with industry-leading features in a versatile case design which allows the unit to be installed in many different formats and operating environments. The ED1500RM2U produces an electrical signal that does not vary from nominal voltage by more than 2%. Tightly regulating the output voltage increases the quality of power to connected equipment adding to its life expectancy, which lowers the total cost of ownership to users.

The ED1500RM2U provides users with the ability to communicate with the UPS simultaneously through three separate protocols: RS-232, USB and Ethernet/SNMP. The ED1500RM2U is designed to proactively notify users of any impending faults or failures with the UPS. This allows for preemptive repair or replacement of components or batteries preventing unexpected downtime caused by the UPS.

Minuteman ED1500RMT2U Features

  • Floor-standing tower, 19-inch rack and cabinet installation kits included
  • 23-inch rack or cabinet installation kit optional
  • Wallmount installation kit optional
  • 3.5-inch (2U) rack/tower case style
  • Up to a 0.8 power factor (in watts) for larger capacities
  • Output receptacle control for non-critical load shedding capability
  • Extended runtime using external battery packs
  • Independent battery pack chargers to reduce battery recharge times
  • Simultaneous RS-232, USB and SNMP communications
  • Minuteman SentryPlus UPS monitoring and control software
  • Front panel display with load/battery meter and status indicators
  • Dedicated remote Emergency Power Off (EPO) port
  • Hot-swappable batteries
  • RoHS compliant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Floor-standing tower, 19-inch rack & cabinet installation kits included
  • 23-inch rack or cabinet installation kit optional
  • Wallmount installation kit optional
  • 3.5-inch (2U) rack/tower case style
  • Up to a 0.8 power factor (in watts) for larger capacities
  • Output receptacle control for non-critical load shedding capability

What's in the box:

  • Minuteman Endeavor 1500VA On-line 2U Rack/Wall/Tower UPS
  • Cabinet Installation Kits
  • Free SentryPlus Software
  • Quick Installation Guide
  • Minuteman 3 Year Warranty
