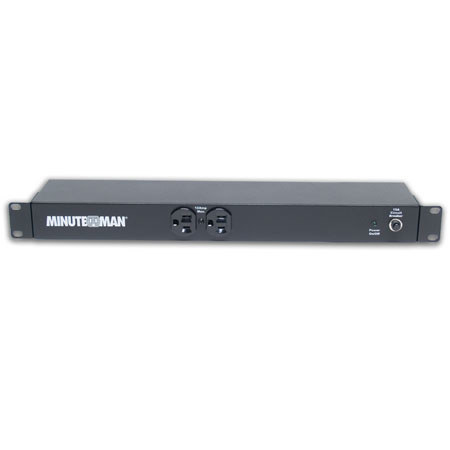

Minuteman MMPD815HV PDU with Amp-Meter, 8-Outlet, 15 Amp, 1U/0U Horizontal/Vertical Mounting, Black

SKU: MNMMPD815HV

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Minuteman MMPD815HV PDU Specifications

  • Mounting orientation

    1U,0U

  • Maximum capacity

    12 Amp

  • Power cord length

    15 ft (4.6 m)

  • Total outlets

    8

  • Outlets (type): Front

    6 x (5-15R)

  • Outlets (type): Rear

    2 x (5-15R)

  • Power ON/OFF LED

    Yes

  • Circuit breaker UL 1077

    One 15-Amp

  • Circuit quantity

    One

  • Built-in Amp-meter

    No

  • Audible overload alarm

    No

  • Input/Output voltage

    120V/120V

  • Frequency

    50/60Hz

  • Safety approvals

    UL 60950-1, cUL, CE

  • Dimensions (H x W x D)

    1.7 x 17.0 x 3.5" / 44 x 432 x 90 mm

  • UPC Code

    784755152206

About Minuteman MMPD815HV PDU

The Minuteman MMPD815HB s a 15 amp Capacity Power Distribution Units. The Minuteman PDU is housed in a sturdy, black, metal case with heavy-duty 8 outlets. The power cords are all strain-relieved with molded plugs and use heavy-gauged cables.

Minuteman MMPD815HV PDU Features

  • Longer power cords: The Minuteman MMPD815HV PDU unit have 15-ft power cords, eliminating the need for 6-, 8-, or 10-ft alternatives
  • More standard outlets: Minuteman PDU unit have 8 outlets
  • Configuration versatility: Minuteman PDU MMPD815HV unit have a multi-form factor with 0U/1U configuration allowing for either horizontal or vertical placement
  • High standards: PDU with higher UL 60950-1 standards. The MMPD815HV is compatible with any data center or network installation
  • Cost effective: Longer cords and more features are what make the MMPD815HV best value today
  • Higher reliability: Designed for higher reliability, Minuteman MMPD815HV PDU switchless design and on/off LEDs provide greater MTBF
  • Load-metering: Amp-metered unit is available to display connected equipment loads

Key Features

  • Longer power cords
  • More standard outlets
  • Configuration versatility
  • High standards: PDU with higher UL 60950-1 standards
  • MMPD815HV is compatible with any data center or network installation
  • Cost effective: Longer cords & more features are what make the MMPD815HV best value today

What's in the box:

  • Minuteman MMPD815HB 8-Outlet 1U/0U Horizontal/Vertical PDU
  • Rackmount & 0U Brackets
  • Minuteman Limited Lifetime Warranty
