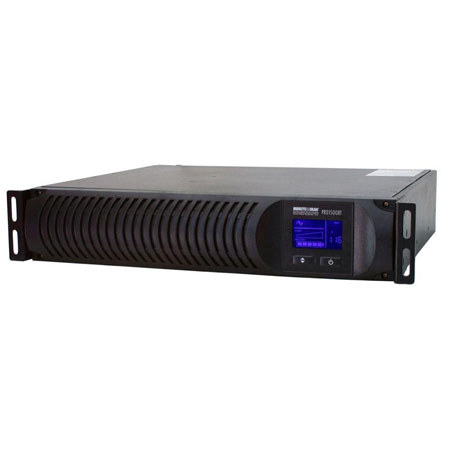

Minuteman PRO1500RT 1500VA/1050W Line Interactive UPS with 8-Outlets, LCD Display

SKU: MNPRO1500RT

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Minuteman PRO1500RT Specifications

  • Output rating

    1500VA

  • Max Output Power

    1050Watts

  • Output Receptacles

    (6) NEMA 5-15R Battery & surge
    (2) NEMA 5-15R Surge only

  • Input Connection

    10 ft. Power cord with NEMA 5-15P

  • Input Voltage Range

    90 to 150VAC

  • Input Frequency Range

    50/60Hz +/-5Hz, auto-sensing

  • Input AC Leakage Current

    <1.0mA at full rated non-linear load

  • Input Protection

    Resettable circuit breaker

  • Output Voltage Range

    104 to 132VAC

  • Output Frequency

    50/60Hz +/-5Hz

  • Output Efficiency (AC-AC)

    >90% at full rated non-linear load

  • Output Voltage (battery operation)

    120VAC

  • Output Voltage Regulation (battery)

    Nominal +/-5% until low battery warning

  • Output Frequency (battery operation)

    50/60Hz, +/-0.5Hz (unless synchronized to utility)

  • Wave Form (battery operation)

    Simulated sine wave

  • Typical Transfer Time

    6-10 ms (max 10ms)

  • Overload Capacity

    110% for 10 seconds, 120% shutdown immediately

  • Output Protection (battery operation)

    Over-current, short-circuit protected and latching shutdown

  • Estimated Runtimes - Full /Half Load

    5 min. / 17 min.

  • Hot Swappable Battery

    Yes

  • Internal Battery Module

    BM0044

  • DC Leakage Current

    < 30uA (+/-10uA) with no AC applied and the unit in the off position

  • Battery Type

    Sealed, non-spillable, maintenance-free, valve-regulated lead acid

  • Surge Energy rating

    1140 joules

  • Surge Current Capacity

    6500 Amps total

  • Surge Response Time

    0-ns (instantaneous) normal mode; <5ns common mode

  • Agency Approvals

    cTUVus (conforms to UL1778, CSA 22.2 standards), CE

  • EMI/RFI Filtering

    FCC Part 15 Class B, EN5022, EN61000-6-1, EN61000-6-3, EN61000-4-5

  • Temperature: Operating (Storage)

    0 to +40 Deg. C / 32 to 104 Deg. F (-15 to 45 Deg. C / 5 to 113 Deg.F)

  • Humidity: Operating & Storage

    0 to 95% non condensing

  • Elevation: Operating (Storage)

    0 to +3,000 m / 0 to +10,000 ft (0 to +15,000 m / 0 to +50,000 ft)

  • Dimensions (H x W x D)

    3.5 x 17.3 x 15.7" / 89 x 440 x 398mm

  • Weight

    43.0lbs / 19.5kgs

  • UPC Code

    784755154156

About Minuteman PRO1500RT

The Minuteman PRO1500RT features UPS incorporating line-interactive technology that preserves battery power by providing voltage regulation during brownouts or voltage sags. ThePRO1500RT can be used to support servers, telecom or VoIP systems, security systems, plus many other applications. An LCD display provides visual notification of power status, including input voltage, frequency, percent of battery charge, estimated runtime, plus many other conditions. It includes Minuteman's SentryPlus power management and diagnostic software.

When installed on a workstation or server, the user gains complete control over monitoring and managing the UPS using a convenient web browserbased interface. The SentryPlus software communicates via a built-in USB port or through a RS-232 connector on the UPS.

In addition, managing the UPS within a Network Management System (NMS) is easy with the installation of an optional SNMP card. Designed for versatility, the PRO1500RT can be mounted in a standard rack using the included rackmount ears. These ears can also be attached to the unit to allow it to stand as a tower.

Minuteman PRO1500RT Features

  • LCD Display - Shows UPS operating status
  • Rack/tower installation - (2U rack height) or wall mounting with optional kit
  • Minuteman SentryPlus Software - SentryPlus auto-shutdown and monitoring software is included
  • RS-232 and USB Communications - No special USB drivers are required for USB communications as unit is automatically recognized by Microsoft Windows as HID-compliant device - similar to a mouse or a keyboard
  • SNMP compatible - Each PRO-RT unit can be managed on a network with the addition of an optional SNMP management card
  • Fax/Modem/Network Line Protection - The PRO-RT UPS protects fax/modem/network lines
  • RoHS Compliant - All PRO-RT products are manufactured using non-hazardous materials making them safer for the environment and a green-friendly addition to any data center (Excludes lead acid batteries)

Key Features

  • LCD Display
  • Shows UPS operating status
  • Rack/tower installation
  • (2U rack height) or wall mounting
  • Minuteman SentryPlus Software
  • SentryPlus auto-shutdown & monitoring software is included

What's in the box:

  • Minuteman 1500VA/1050W Line Interactive UPS Uninterruptible Power Supply
  • Minuteman SentryPlus Power Management & Diagnostic Software
  • Minuteman 3 Year Parts & Labor Warranty
