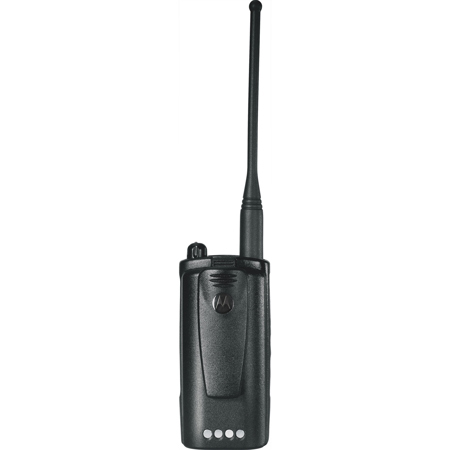

Motorola RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio with Display

SKU: MORDU4160D

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the five programmable buttons on the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio?

The five programmable buttons on the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio are designed for easy access to the radio's features and settings. They can be customized using the customer programming software included with the radio.

Can the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio be used hands-free?

Yes, the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio supports voice activation, which enables hands-free operation when used with an accessory.

What makes the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio durable?

The RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio is designed to meet military specifications for resistance against dust, wind, shock, and vibration, making it highly durable for various working conditions.

What is the benefit of the radio's lithium-ion battery?

The lithium-ion battery in the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio offers enhanced performance. It lasts longer and avoids the risk of memory 'over-charge' side effects, providing reliable power for extended use.

How does the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio ensure clear communication?

The RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio operates on 89 business-exclusive UHF frequencies and is set to operate in 12.5kHz mode by default. This ensures clear and secure signals for effective communication.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Motorola RDU4160D Specifications

  • Frequency Range

    UHF (438 - 470MHz)

  • Audio Output

    2000mW

  • Channels Capacity

    16 Channels

  • Channel Bandwidth

    12.5kHz

  • Average Battery Life at 5/5/90

    With Standard 1100 mAH Li-Ion Battery: Up to 8.5 hours
    With High Capacity 2400 mAH Li-Ion Battery: Up to 18.5 hours (with Battery Save On)

  • Power Supply Voltage

    7.2 Volts DC (Li-Ion Battery Pack or Alkaline)

  • Transmitter: RF Output

    High: 4W
    Low: 2W

  • Transmitter: Frequency Stability

    < 2 ppm

  • Transmitter: Spurs & Harmonics

    < -50dBc

  • Transmitter: FM Hum & Noise

    40 dB at 12.5kHz / -45 dB at 25.0kHz

  • Transmitter: Modulation Limiting

    +-2.5kHz at 12.5 kHz / +-5.0 kHz at 25.0kHz

  • Transmitter: Adjacent Channel Power

    60dBc

  • Transmitter: Radiated Spurious Emissions

    < -20 dBm at 12.5kHz / < -13 dBm at 25kHz

  • Transmitter: Audio Frequency Response

    +1 to -3dB (0.3 - 3.0 kHz)

  • Transmitter: Audio Distortion

    < 2%

  • Receiver: Sensitivity (12 dB SINAD)

    -122dBm (0.18 MuV)

  • Receiver: Adjacent Channel Selectivity

    60dB at 12.5kHz / 65dB at 25.0kHz

  • Receiver: Intermodulation rejection

    60dB

  • Receiver: Spurious response Rejection

    80dB (blocking 1MHz)

  • Receiver: Audio Distortion

    < 5%

  • Receiver: CSQ Hum & Noise at 12.5kHz

    -50dB

  • Receiver: PL Hum & Noise at 12.5kHz

    -50dB

  • Receiver: DPL Hum & Noise at 12.5kHz

    -45 dB

  • Receiver: Radiated Spurious Emissions

    < -54 dBm (< 1GHz)
    < -52 dBm (> 1GHz)

  • Receivier:Audio Output at <5% Distortion

    1.5W at 8Ohms

  • Operating Temperature

    -30 to 60 deg. C / -22 to 140 deg. F(Radio)

  • Sealing

    IP55

  • Shock & Vibration

    Polycarbonate Housing passes EIA 603

  • Dust & Humidity

    Satisfied EIA 603

  • Military Standards

    MIL-STD-810-C, MIL-STD-810-D, MIL-STD-810-E, MIL-STD-810-F

  • Dimensions (H x W x D)

    With Standard Li-Ion Battery: 4.5 x 2.2 x 1.6" / 114.30 x 55.88 x 40.64mm
    with High Capacity Li-Ion Battery: 4.5 x 2.2 x 1.8" / 114.30 x 55.88 x 45.72mm

  • Weight

    With Standard Li-Ion Battery: 8.5oz / 240.97g
    with High Capacity Li-Ion Battery: 10.3oz / 292.00g

  • UPC Code

    723755540309

About Motorola RDU4160D

Overcome workplace noise and enhance communication with the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio with Display. This high-tech, user-friendly, and portable device is designed by Motorola, a brand renowned for its durable and reliable electronics.

Engineered specifically for noisy environments, this two-way radio boasts a 30% increase in volume compared to previous Motorola XTN and Ax models, thanks to innovative design enhancements. The RDU4160D operates on a unique set of 89 business-exclusive UHF frequencies and is fully compliant with the 2013 FCC Narrowband mandate.

The radio's default factory programming is set to operate in 12.5kHz mode, ensuring clear and secure signals. With an easy-to-read display and five programmable buttons, users can quickly access the radio's features and settings.

The RDU4160D is not just about excellent audio quality; it's also built to last. Meeting military specifications for resistance against dust, wind, shock, and vibration, this radio is as rugged as it is functional.

The device comes with customer programming software, allowing users to customize settings and access new features. Its tricolor LED indicator provides clear feedback on calling or monitoring features.

The radio's lithium-ion battery offers enhanced performance, lasting longer without the risk of memory "over-charge" side effects. For convenience, the radio also supports simplified cloning, enabling quick copying of settings from one radio to another when used with an accessory.

Voice activation allows for hands-free operation, while the Disable Channel feature lets users skip undesirable channels via the customer programming software. The radio also supports channel annunciation and is compatible with duplex repeaters, significantly extending your radio coverage area.

Whether you're operating in a warehouse, construction site, or any other professional setting, the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio with Display is your perfect partner for clear, reliable, and efficient communication.

Motorola RDU4160D Features

  • High-tech Motorola two-way UHF radio designed for professional use in noisy environments
  • Features 16 channels and operates on 89 business-exclusive UHF frequencies for secure and clear communication
  • Rugged design meeting military specifications for resistance against dust, wind, shock, and vibration
  • User-friendly with an easy-to-read display, five programmable buttons, and customer programming software
  • Enhanced battery performance with a long-lasting lithium-ion battery that avoids memory "over-charge" side effects
  • Supports voice activation for hands-free operation, simplified cloning, and is compatible with duplex repeaters for extended coverage

Key Features

  • High-tech Motorola two-way UHF radio designed for professional use in noisy environments

What's in the box:

  • Motorola RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio with Display
  • 2400mAh Lithium Ion Rechargeable Battery
  • 10-Hour Plug-in Charger
  • Spring Belt Clip
  • Antenna
  • Power Supply
  • Users Guide and Brochure
  • Motorola 1 Year Warranty
