The RDV5100 is designed with innovative enhancements that allow it to be 30% louder than previous Motorola XTN and Ax models. This ensures your communication is clear and audible even in noisy environments.
Absolutely. The RDV5100 is built to military specifications, making it resistant to dust, wind, shock, and vibration. It's also water-resistant, making it ideal for use in various weather conditions.
The customer programming software in the RDV5100 allows for customization of the radio's operation to meet your specific needs. You can perform programming functions and access new features easily.
Yes, the RDV5100 has a voice activation feature that enables hands-free operation when used with compatible accessories.
The repeater capability in the RDV5100 allows you to significantly extend your radio coverage area. This is especially useful in large working environments.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
VHF (146 - 174MHz)
2000mW
10 Channels
12.5kHz
With Standard 1100 mAH Li-Ion Battery: Up to 8.5 hours
With High Capacity 2400 mAH Li-Ion Battery: Up to 18.5 hours (with Battery Save On)
7.2 Volts DC (Li-Ion Battery Pack or Alkaline)
High: 5W
Low: 2W
< 2 ppm
< -50dBc
40dB at 12.5kHz / -45 dB at 25.0kHz
+-2.5kHz at 12.5 kHz / +-5.0 kHz at 25.0kHz
60dBc
< -20 dBm at 12.5kHz / < -13 dBm at 25kHz
+1 to -3dB (0.3 - 3.0 kHz)
< 2%
-122dBm (0.18 MuV)
60dB at 12.5kHz / 65dB at 25.0kHz
60dB
80dB (blocking 1Mhz)
< 5%
-50dB
-50dB
-45dB
< -54dBm (< 1GHz)
< -52 dBm (> 1GHz)
1.5W at 8Ohms
-30 to 60 deg. C / -22 to 140 deg. F(Radio)
IP55
Polycarbonate Housing passes EIA 603
Satisfied EIA 603
MIL-STD-810-C, MIL-STD-810-D, MIL-STD-810-E, MIL-STD-810-F
With Standard Li-Ion Battery: 4.5 x 2.2 x 1.6" / 114.30 x 55.88 x 40.64mm
with High Capacity Li-Ion Battery: 4.5 x 2.2 x 1.8" / 114.30 x 55.88 x 45.72mm
With Standard Li-Ion Battery: 8.5oz / 240.97g
with High Capacity Li-Ion Battery: 10.3oz / 292.00g
723755540286

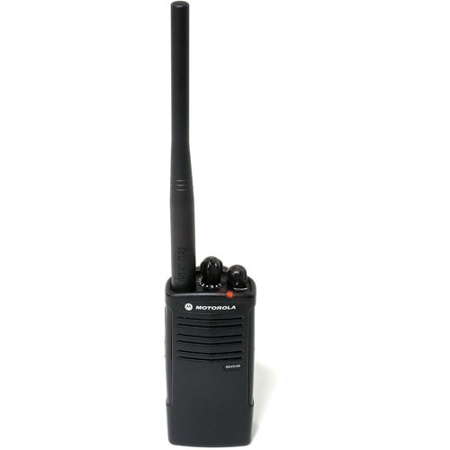

Are you in need of a robust communication solution that thrives in the most demanding environments Look no further than the Motorola RDX Business Series RDV5100 10 Channel Two-Way VHF Radio. Engineered for clarity and volume, this powerhouse is 30% louder than its predecessors, the Motorola XTN and Ax models, thanks to innovative design enhancements.
The RDV5100 is not just about volume; it's about crystal-clear audio quality that cuts through the noise of bustling construction sites, busy warehouses, and other high-decibel workplaces. With an advanced wind-noise reduction feature, every message is delivered with exceptional voice quality.
Durability is at the core of the RDV5100, which is built to military specifications. It stands up to the toughest conditions, including dust, wind, shock, and vibration, and is water-resistant, ensuring reliable performance no matter where your work takes you.
Operating on 27 business-exclusive VHF frequencies, the RDV5100 ensures secure and clear signal transmission with 219 codes, including customizable PL and DPL codes. This radio is also 2013 FCC Narrowband compliant and comes factory programmed to operate in 12.5kHz mode for enhanced communication precision.
The radio's customer programming software is a standout feature, allowing for easy access to programming functions and new features, ensuring your radio meets your specific needs. The tricolor LED indicator provides instant visual feedback on calling or monitoring status, while the high-performance lithium-ion battery offers extended usage times without the drawbacks of memory "over-charge" effects.
For businesses that require hands-free operation, the RDV5100's voice activation capability is compatible with various accessories for seamless use. Additionally, the simplified cloning feature makes it quick and easy to copy settings from one radio to another, enhancing team coordination.
Channel management is a breeze with the Disable Channel feature, which allows you to eliminate unwanted channels, and the Channel Annunciation provides vocal confirmation of channel selection. The repeater capability extends your coverage area significantly, and the Dynamic Talkaround Scan ensures your radio automatically selects the best mode for communication.
Choose the Motorola RDX Business Series RDV5100 for a portable, high-quality, and user-friendly two-way VHF radio that stands up to the challenges of your work environment while delivering reliable and secure communication.
