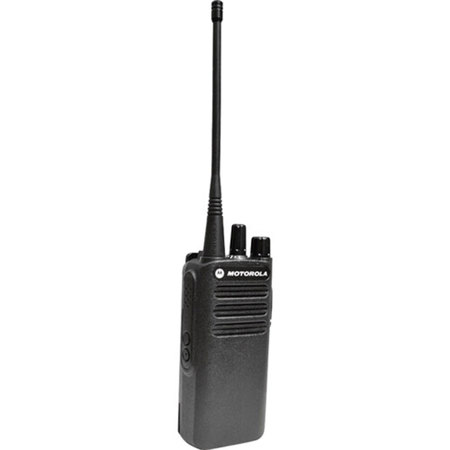

Motorola CP100D 5W 16-Channel Two-Way Non-Display VHF Analog/Digital Radio, 136-174MHz

SKU: MOTAH87JA2AN MFR: CP100D-V
Earn VIP Reward Points

Key Features

  • Stay connected with this Motorola two-way radio, perfect for reliable communication.
  • Experience crystal-clear audio with this two-way radio, ensuring messages are heard.
  • This affordable two-way radio provides a cost-effective communication solution.
  • Enjoy a long-lasting battery life with our 1700 mAh battery for extended radio use.
  • Operate in extreme conditions; this two-way radio is built to MIL-STD environmental standards.
  • The Motorola CP100D radio offers both analog and digital modes for versatile use.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$54.99

2 Year

$69.99

3 Year

$86.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Motorola CP100D Specifications

General

General

Jump to...
  • Channel Capacity

    16

  • Typical RF Output

    Low Power: 1W
    High Power: 5W

  • Frequency

    136-174MHz

  • Power Supply

    7.5V (Nominal)

Receiver

Jump to...
  • Frequency

    136-174MHz

  • Channel Spacing

    12.5 kHz / 25 kHz3

  • Frequency Stability

    +/- 0.5 ppm (-30 Degree C, +60 Degree C, +25 Degree C Ref)

  • Analog Sensitivity (12 dB SINAD)

    0.3 uV / 0.22 uV (typical)

  • Digital Sensitivity (5% BER)

    0.25 uV / 0.19 uV (typical)

  • Intermodulation (TIA603D)

    70 dB

  • Adjacent Channel Selectivity (TIA603D)

    45 dB @ 12.5 kHz / 70 dB @ 25 kHz

  • Spurious Rejection (TIA603D)

    70 dB

  • Rated Audio

    0.5 W (Internal)

  • Audio Distortion @ Rated Audio

    5% (3% typical)

  • Hum and Noise

    -40 dB @ 12.5 kHz / -45 dB @ 25 kHz

  • Audio Response

    TIA603D

  • Conducted Spurious Emissions (TIA603D)

    -57 dBm

Transmitter

Jump to...
  • Frequency

    136-174MHz

  • Channel Spacing

    12.5 kHz / 25 kHz3

  • Frequency Stability

    +/- 1.5 ppm (-30 Degree C, +60 Degree C, +25 Degree C Ref)

  • Low Power Output

    1W

  • High Power

    5W

  • Modulation Limiting

    +/- 2.5 kHz @ 12.5 kHz / +/- 5.0 kHz @ 25 kHz

  • FM Hum and Noise

    -40 dB @ 12.5 kHz / -45 dB @ 25 kHz

  • Conducted / Radiated Emission

    -36 dBm < 1 GHz / -30 dBm > 1 GHz

  • Adjacent Channel Power

    60 dB @ 12.5 kHz / 70 dB @ 25 kHz

  • Audio Response

    TIA603D

  • Audio Distortion

    3% (typical)

  • 4FSK Digital Modulation

    12.5 kHz Data: 7K60F1D and 7K60FXD
    12.5 kHz Voice: 7K60F1E and 7K60FXE
    Combination of 12.5 kHz Voice and Data: 7K60F1W

  • Digital Vocoder Type

    AMBE +2

  • Digital Protocol

    ETSI TS 102 361-1, -2, -3

Environmental

Jump to...
  • Operating Temperature

    -30 Degree C - +60 Degree C (-22 - 140 Degree F)

  • Storage Temperature

    -40 Degree C - +85 Degree C (-40 - 185 Degree F)

  • Thermal Shock

    Per MIL-STD

  • Humidity

    Per MIL-STD

  • ESD

    IEC 61000-4-2 Level 3

  • Dust and Water Intrusion

    IP54, MIL-STD

  • Packaging Test

    MIL-STD 810D and E

Battery

Jump to...
  • Li-Ion 1700 mAh

    Analog: 10.7 hrs
    Digital: 14.4 hrs

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (H x W x D)

    With battery: 4.7 x 2.2 x 1.4" (120 x 55 x 34.7mm)

  • Weight

    With battery: 9.7 oz (276g)

About Motorola CP100D

The CP100D 5W 16-Channel Two-Way Non-Display VHF Analog/Digital Radio, operating within the 136-174MHz frequency range, is a user-friendly and efficient communication solution designed for professionals who value simplicity and effectiveness. This entry-level digital radio offers a seamless transition from analog to MOTOTRBO digital communications, paving the way for a smooth digital migration at your own pace.

The CP100D series is a practical range of digital radios that provide enhanced communication capabilities. With the benefits of digital technology, these affordable radios offer up to 35% longer talk-time, double the voice capacity in a 12.5 kHz licensed channel, extended radio coverage, and superior audio quality.

Offering between 16 and 160 channels, the CP100D series caters to a variety of communication needs with models featuring limited keypads and non-keypads, as well as display and non-display options. The dual-mode operation allows these radios to function in both analog and digital modes, making it a cost-effective solution for integrating new digital radios with your existing analog system.

Powered by Time Division Multiple Access (TDMA) digital technology, the CP100D radios offer double the calling capacity compared to analog radios, all within a single frequency license. The series also features the Dual Capacity Direct Mode, which maximizes your digital radio system's capacity by doubling your channels without the need for a costly repeater and its associated infrastructure.

When it comes to audio clarity, the CP100D series stands out with its digital audio performance that ensures clear and reliable calls throughout your coverage area. The digital voice processing with enhanced call signaling provides faster, more reliable calls. For situations where distractions are not an option, the voice announcement feature provides audible confirmation of channel changes, and programmable buttons eliminate the need to check the radio display.

In summary, the CP100D 5W 16-Channel Two-Way Non-Display VHF Analog/Digital Radio is a versatile, efficient, and cost-effective solution for your professional communication needs.

Motorola CP100D Features

  • Analog / Digital Voice Communications
  • Dual Capacity Direct Mode
  • Transmit Interrupt (Decode Only)
  • Pre-Programmed Text Messaging
  • Voice Announcement
  • Digital Mobile Radio (DMR) Standards Compliant
  • IP54 Rated

Key Features

  • Stay connected with this Motorola two-way radio, perfect for reliable communication.
  • Experience crystal-clear audio with this two-way radio, ensuring messages are heard.
  • This affordable two-way radio provides a cost-effective communication solution.
  • Enjoy a long-lasting battery life with our 1700 mAh battery for extended radio use.
  • Operate in extreme conditions; this two-way radio is built to MIL-STD environmental standards.
  • The Motorola CP100D radio offers both analog and digital modes for versatile use.

What's in the box:

  • Motorola CP100D 5W 16-Channel Two-Way Non-Display VHF Analog/Digital Radio
  • Antenna (NAD6502)
  • 1700 mAh Battery (PMNN4476)
  • Belt Clip (HLN9844)
  • Charger (PMPN4132)
  • Motorola 3 Year Limited Warranty
