Movcam Base Kit for Sony FS7 / FS7 II, Gold Mount

SKU: MOV3032700AB MFR: MOV-303-2700-AB
Earn VIP Reward Points

Key Features

  • Enhance your Sony FS7/FS7 II with this Movcam base kit for stable, professional shooting.
  • Achieve perfect balance with the adjustable multi BP base plate, enhancing camera stability.
  • Utilize the included 15mm rods for mounting accessories, expanding your rig's capabilities.
  • The durable FS7 riser plate ensures optimal height adjustment for comfortable operation.
  • Secure your setup with the robust FS7 side bracket and top clamp for added stability.
  • Power up your gear using the A/B Mount distribution box, streamlining your power solutions.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Movcam Base Kit Specifications

Riser Plate

Riser Plate

Jump to...
  • Dimensions

    6.8 x 2.6 x 1.7" (174.5 x 67.7 x 43.7mm)

  • Weight

    0.3 lb (0.15kg)

Multi BP Base Plate

Jump to...
  • Dimensions

    10.2 x 3.8 x 1.4" (260.0 x 98.0 x 37.5mm)

  • Weight

    1.3 lb (0.6kg)

Side Bracket

Jump to...
  • Dimensions

    4.2 x 5.9 x 2.3" (107.5 x 150.5 x 60.5mm)

  • Weight

    0.3 lb (0.15kg)

Top Clamp

Jump to...
  • Dimensions

    3.1 x 1.5 x 1.4" (80 x 39 x 37.5mm)

  • Weight

    0.1 lb (0.05kg)

FS7 Top 15mm Clamp

Jump to...
  • Dimensions

    3.1 x 1.6 x 0.8" (80 x 43 x 22mm)

  • Weight

    0.1 lb (0.05kg)

15mm Rods (8")

Jump to...
  • Material

    Aluminum

  • Rod Diameter

    15mm

  • Rod Length

    8" (203.2mm)

Designed For Use With:

  • Sony Camcorder

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Movcam Base Kit

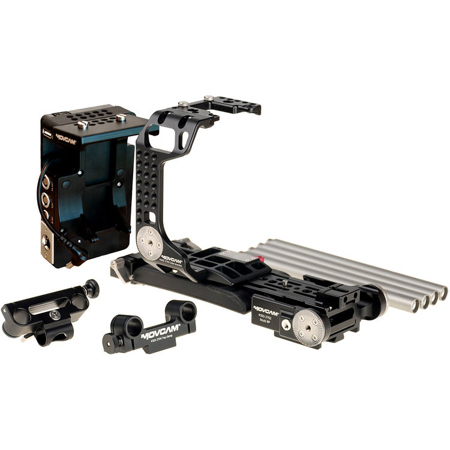

Movcam FS7 Base Kit Includes FS7 Riser Plate, Multi BP Base Plate, FS7 Side Bracket, Top Clamp, FS7 Top 15mm Clamp, FS7 Distribution Box (A/B Mount), 4x 15mm Rods (8").


FS7 Riser Plate
To be used with the Movcam Multi-BP

The two piece design allows for repositioning of the camera on the shoulder for weight distribution on the fly. The new FS7 Riser expands the bearing surface on the bottom of the camera to ensure safe load and is compatible with Arca Swiss.


Multi Base Plate
The new Multi BP is VCT Tripod adaptor ready and can be mounted directly onto Movcam's industry standard dovetail [MOV-303-1129] or studio 15mm/19mm bridge plates.

Movcam has anticipated different use cases for the FS7 and has created complete kits for anyone from student to studio including the FS7 Base Kit, FS7 15mm Standard Kit, FS7 19mm Standard Kit and the FS7 19mm Cine Kit. All kits come with the VCT Shoulder Multi-BP that provides standard 85mm distance between the 15mm rods and optical center.

Multi Base Plate - Future Ready
The bottom of the VCT Multi-BP can mount directly onto a 15mm/19mm studio bridge plate providing a standard optical center to 15mm or 19mm studio standards. The new Multi BP is VCT Tripod Adapter ready and can be mounted directly onto Movcam's industry standard dovetail or studio standard 15mm/19mm bridge plates.


FS7 Side Bracket
The Movcam FS7 Side Bracket is designed to use with Movcam FS7 Riser Block.


FS7 Top 15mm Clamp
The Movcam Top 15mm Clamp is specially designed for use with Sony FS7.


15mm Aluminum Rod (8")
The Movcam MOV-206-0003-5 0.59" (15mm) Aluminum Rod is single and it is made of aluminum and is 8" (203.2mm) in length.

Key Features

  • Enhance your Sony FS7/FS7 II with this Movcam base kit for stable, professional shooting.
  • Achieve perfect balance with the adjustable multi BP base plate, enhancing camera stability.
  • Utilize the included 15mm rods for mounting accessories, expanding your rig's capabilities.
  • The durable FS7 riser plate ensures optimal height adjustment for comfortable operation.
  • Secure your setup with the robust FS7 side bracket and top clamp for added stability.
  • Power up your gear using the A/B Mount distribution box, streamlining your power solutions.

What's in the box:

  • FS7 Riser Plate
  • Multi BP Base Plate
  • FS7 Side Bracket
  • Top Clamp
  • FS7 Top 15mm Clamp
  • FS7 Distribution Box (A/B Mount)
  • 4x 15mm Rods (8 ")
  • Movcam 1 Year Limited Warranty
