Movcam V-Mount Base Kit for Sony FX9

SKU: MOV339 MFR: MOV-303-3900
Earn VIP Reward Points

Key Features

  • Enhance your Sony FX9 with this Movcam V-Mount Base Kit for stable shooting.
  • Get versatile accessory mounting with multiple 1/4"-20 & 3/8"-16 threads on top plate.
  • Power your camera via the V-Mount distribution box with D-Tap & 2-Pin LEMO outputs.
  • Achieve precise balance using the 9" dovetail plate compatible with Arri BP8/BP9.
  • Utilize 15mm LWS rod support for adding follow focus & matte box systems easily.
  • Mount accessories securely with ARRI-style rosettes on side bracket & base plate.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Movcam Base Kit Specifications

Base Plate

Base Plate

Jump to...
  • Support Type

    Baseplate, Shoulder Support

  • Grip Type

    None

  • Rod Standard

    15mm LWS / 60mm Spacing

  • Battery Plate Type

    None

  • Rod Ports

    Front: 2x 15mm Rod Port
    Rear: 2x 15mm Rod Port

  • Shoe Mounting

    None

  • Rosettes

    1x ARRI Rosette with M6 Thread

Distribution Box

Jump to...
  • Material

    Aluminum

  • Plate Front / Battery Mount

    V-Mount

  • Power Input

    4-Pin XLR: 19.5 VDC
    V-Mount: 19.5 VDC

  • Power Output

    D-Tap: 12 VDC
    2-Pin LEMO: 14.4 VDC

  • Camera Power Method

    Battery Plate Mount Type, Connector

  • Connectors

    2x D-Tap
    2x 2-Pin LEMO
    1x 4-Pin XLR

Side Bracket

Jump to...
  • Mounting

    Multiple 1/4"-20 Threads
    Multiple 3/8"-16 ARRI-Style Accessory Mounts
    1x ARRI-Style Rosette

Top Plate

Jump to...
  • Accessory Mounting Threads

    9x 1/4"-20
    4x 3/8"-16 with ARRI Anti-Twist Divots

  • Rod Clamp Type

    15mm

Universal LWS 9" Dovetail Plate

Jump to...
  • Compatibility

    Arri BP8 and Arri BP9 Bridgeplates

  • Dimensions

    10 x 2.6 x 0.5" (256 x 68 x 14mm)

  • Weight

    0.5 lbs (0.25kg)

About Movcam Base Kit

For professional videographers and photographers seeking a reliable and robust mounting solution for their Sony FX9 camera, the V-Mount Base Kit offers an unparalleled combination of stability and versatility. This high-quality kit is engineered to seamlessly integrate with the Sony FX9, providing a secure and sturdy platform that is tailor-made for the camera's dimensions and weight distribution.

The centerpiece of the kit is the durable Movcam FX9 Base Plate, which features a VCT-14 adapter plate compatible with Sony VCT-14 mounting plates. This allows for quick and easy transitions between tripod and shoulder-mounted shooting. When the VCT-14 adapter plate and toe plate are detached, the base plate can effortlessly slide onto the Movcam Universal Dovetail Plate or other industry-standard dovetail plates, ensuring compatibility with a wide range of support systems.

Designed with flexibility in mind, the base plate supports both front and rear 15mm LWS rod setups, enabling the attachment of additional camera accessories such as a follow focus or a matte box. It also offers compatibility with ARRI 19mm BP-8 mounting options for even greater customization. A removable rosette block on the left side allows for the addition of a handgrip, while the front features a lens mount support with 1/4"-20 threaded adapters.

The integrated rubber shoulder pad of the Movcam FX9 Base Plate is crafted for comfort and durability, ensuring a no-play fit that remains comfortable during extended shooting sessions. The top plate and side bracket are replete with 1/4"-20 threaded mounting points and ARRI-compatible 3/8" key pin mounting points, providing ample space for securing third-party accessories.

For those requiring additional power options, the Movcam FX9 Distribution Box delivers. It provides power to the camera via a V-Mount battery or the Sony standard 4-pin XLR DC Port. With four 12V power out ports, including two D-tap and two Lemo 2-pin connectors, this distribution box is designed to fit snugly against the camera body, maintaining a streamlined profile.

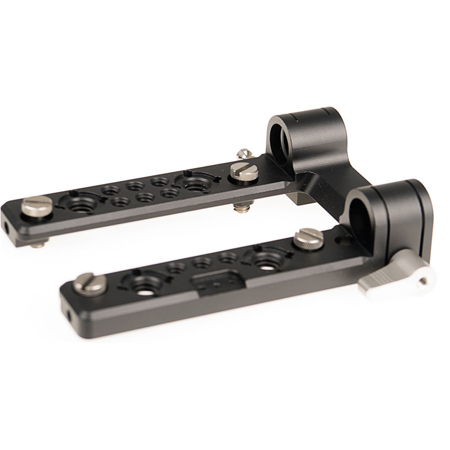

The side bracket enhances the rig's functionality, offering a rosette adapter for mounting the stock Sony handle in a more rearward position, which is ideal for tripod use. It also protects the EVF connector port, ensuring the camera's delicate components are safeguarded during rigorous use.

Lastly, the top plate's design accommodates upper 15mm rod mounting options, perfect for attaching an EVF, monitor, or other accessories. It is designed to work with the original Sony top handle, maintaining the camera's original ergonomics and functionality.

The V-Mount Base Kit for Sony FX9 is the ultimate choice for professionals who demand a durable, reliable, and high-quality mounting solution that enhances their camera's capabilities without compromising on design or functionality.

Movcam Base Kit Features

  • 4 pin XLR DC in Port
  • 2 D-tap 12V
  • 2 Lemo 2 pin 12V

Key Features

  • Enhance your Sony FX9 with this Movcam V-Mount Base Kit for stable shooting.
  • Get versatile accessory mounting with multiple 1/4"-20 & 3/8"-16 threads on top plate.
  • Power your camera via the V-Mount distribution box with D-Tap & 2-Pin LEMO outputs.
  • Achieve precise balance using the 9" dovetail plate compatible with Arri BP8/BP9.
  • Utilize 15mm LWS rod support for adding follow focus & matte box systems easily.
  • Mount accessories securely with ARRI-style rosettes on side bracket & base plate.

What's in the box:

  • 1x Movcam Base Plate (MOV-303-3901)
  • 1x Distribution Box (MOV-303-3902)
  • 1x Side Bracket (MOV-303-3903)
  • 1x Top Plate (MOV-303-3904)
  • 1x Universal LWS 9" Dovetail Plate (MOV-303-1129)
  • 1x VCT-14 Adapter Plate
  • 2x Attachment Screws
  • 1x Mounting Screw Set
  • Movcam 1 Year Limited Warranty
