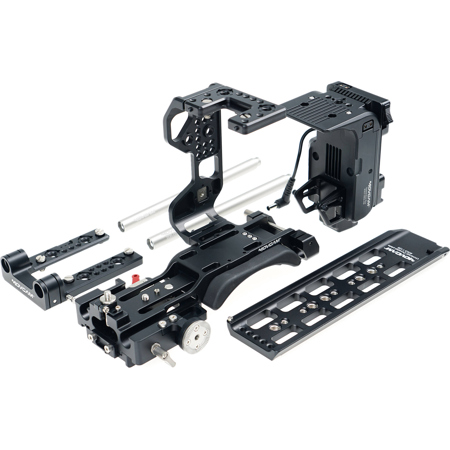

Movcam AB-Mount Base Kit for Sony FX9

Become a professional videographer with the AB-Mount Base Kit for Sony FX9, a robust and reliable mounting solution specifically designed for your Sony FX9 camera. This high-quality kit is packed with a variety of components, including a base plate, handles, and a top plate, providing you with the versatility you need for different shooting scenarios.

The centerpiece of this kit is the Movcam FX9 Base Plate, featuring a VCT-14 adapter plate for seamless use with Sony VCT-14 mounting plates. With the VCT-14 adapter plate and toe plate removed, the base plate can effortlessly slide onto the Movcam Universal Dovetail Plate or other industry-standard dovetail plates. The base plate is compatible with both 15mm rods and ARRI 19mm BP-8 mounting options, offering you a wide range of mounting possibilities.

The left side of the base plate includes a removable rosette block, perfect for adding a handgrip for enhanced stability. The front of the base plate features a lens mount support for 1/4"-20 threaded adapters, ensuring your lens is securely attached. The integrated design of the base plate includes a no-play rubber shoulder pad, providing a comfortable and secure fit when attached to the camera.

The Movcam FX9 A/B Distribution Box, included in the kit, provides power to your camera via a 3 stud Gold Mount battery or the standard 4 pin XLR DC Port. With 6 12V power out ports, including 4 D-tap and 2 Lemo 2 pin connectors, you'll never run out of power options.

The kit also includes a side bracket with plenty of 1/4"-20 threaded mounting points and ARRI compatible 3/8" key pin mounting points for attaching third-party accessories. The rosette adapter on the side bracket offers tripod users a choice for mounting the stock Sony handle closer to the rear of the rig.

The top plate of the kit provides additional 1/4"-20 threaded mounting points and ARRI compatible 3/8" key pin mounting points. It also offers upper 15mm rod mounting options for mounting an EVF, monitor, or other accessories.

The AB-Mount Base Kit for Sony FX9 is your ultimate solution for a stable and secure mounting experience, allowing you to easily position and adjust your camera as needed.
