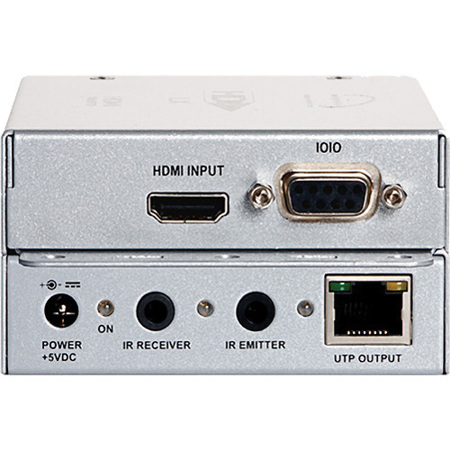

About Magenta Research HD-One LX HDMI, IR and RS-232 Extender Kit
The Magenta Research HD-One LX HDMI, IR and RS-232 Extender Kit delivers reliable, uncompressed, high-definition video over a single CAT5e/6/6e/7 cable to a distance of up to 328' (100m). It consists of a transmitter and an extender unit.
This LX series extender offers additional support for bi-directional RS-232 and 2-way IR signals. For ease of use, the LX kit comes with a set of IR emitter/receiver cables. The LX receiver is also tunable to 3 different IR bands (36.7, 38.0, or 58.8 kHz). This extender kit is fully HDCP compliant and features plug-and-play functionality.
HDMI cables are difficult to terminate. UTP cables, meanwhile, are both cost-effective and easy to terminate in the field, making it easy for extending and HDMI or DVI source to almost any display.
Magenta Research HD-One LX HDMI, IR and RS-232 Extender Kit Features
- Extends HDMI or DVI, serial and IR signals over Category 5e/6/6a/6e/7 UTP, STP, or FTP cable
- Single UTP cable (sold separately) transfers video, audio and HDCP signals
- An external switch lets you easily select from the following IR operating modes: 36.7, 38, or 56.8 kHz
- Extends uncompressed HD video (1920x1200 at 60Hz) up to 328' (100m)
- Audio transmission supports Dolby TrueHD and DTS-HD Master Audio
- HDMI 1.4 and HDCP compliant
- No adjustments or tuning required
- Bi-directional RS-232 interface
- Two-way IR support (two IR dongles included)
- Integrated mounting flange
- Tolerances designed for commercial environments
- Typical applications include museums; large retail environments; high-end security, education and residential environments; digital signage, wayfinding installations; and home theater
