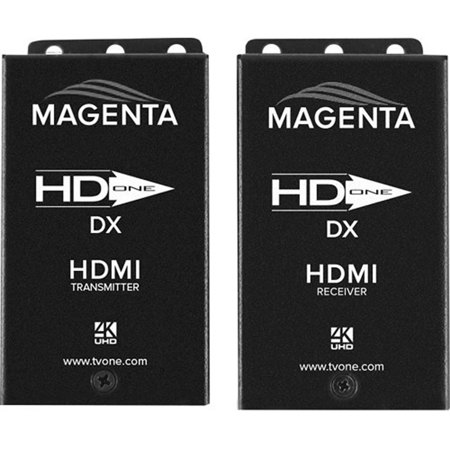

Magenta Research HD-One DX 4K UHD HDMI HDBaseT Video and Audio Extension Kit

SKU: MR221107903 MFR: 2211079-03
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal with this 4K UHD HDMI HDBaseT video and audio extension kit.
  • Enjoy reliable video transmission with HDBaseT tech, perfect for digital signage setups.
  • Experience high-quality video with HDMI 1.4 & HDCP compliance for crystal-clear images.
  • Achieve long-range connectivity using CAT6/6a/7 UTP cables for robust video signals.
  • This affordable video extension kit supports up to 4K UHD at 30Hz for stunning visuals.
  • Easy setup for museums, retail, education, and home theaters with low latency.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magenta Research HD-One DX Specifications

  • Typical Installation Types

    Museums
    Large Retail Environments
    High-end Security, Education and Residential
    Digital Signage
    Wayfinding Installations
    Home Theatre

  • CORIOmax Compatibility

    CORIOmaster:
    CORIOmaster C3-540
    CORIOmaster mini C3-510
    CORIOmaster micro C3-503
    HDBT output module for CORIOmaster (CM-HDBT-SC-2OUT-1ETH)
    HDBT input module for CORIOmaster (CM-HDBT-SC-2IN-1ETH)

    CORIOmatrix:
    CORIOmatrix C3 340
    CORIOmatrix mini C3-310
    HDBT output module for CORIOmatrix (CM-HDBT-XSC-2OUT-1ETH)

  • Supported Video

    HDMI/DVI Video Modes, HDMI 1.4, HDCP Compliant including standard formats at 60Hz:640x480, 800x600, 1024x768, 1152x864,1280x768, 1280x960,1280x1024, 1360x760, 1366x768, 1600x1200,1680x1050, 1920x1080, 1920x1200 & HDTV: 480p,720p,1080i, & 1080p. 4k: 3840x2160p30 & 4096x2160p24 (DX/LX only up to 60m)

  • Video In

    HDMI Type A (Transmitter)

  • Video Out

    HDMI Type A (Receiver)

  • Audio In/Out

    Embedded with video signal

  • UTP In/Out

    RJ45 Connector, HDBaseT format

  • Required UTP

    CAT5e, CAT6, CAT6a, CAT6e, CAT7 UTP/STP/FTP (CAT6 or better is recommended)

  • Bandwidth

    3.4Gbps

  • Power

    +5VDC at 2.6A max each unit

  • Consumption

    1200mA (max)

  • Humidity Tolerance

    Up to 95% non-condensing

  • Operating Temperature

    0 to 55 deg. C (32 to 131 deg. F)

  • Storage Temperature

    -20 to 85 deg. C (-4 to 185 deg. F)

  • Dimensions (DX)

    3.2 x 1.9 x 1.0" (81.28 x 48.26 x 25.40mm)

  • Weight

    0.3 lbs (0.14kg) (Each)

  • UPC Code

    5029882091895

About Magenta Research HD-One DX

An advanced solution for high-definition audio and video transmission, the HD-One DX 4K UHD HDMI HDBaseT Video and Audio Extension Kit from Magenta Research offers unparalleled quality and reliability. This high-performance kit is designed to transmit uncompressed 4K UHD video over a single Cat5e/6/6e/7 cable, reaching distances of up to 328 feet.

Unlike conventional HDMI extenders that are limited to 150 feet and often compromise video quality, the HD-One DX stands out with its superior performance and extended reach. This kit is fully HDCP-compliant and features a user-friendly, plug-and-play design that requires no adjustments for optimal operation.

The HD-One DX goes beyond video transmission, extending embedded HDMI audio with support for high-definition audio formats, including Dolby TrueHD and DTS-HD Master Audio. This ensures a comprehensive audio-visual experience that enhances your home theater or conference room setup.

Compliant with HDMI 1.4, the HD-One DX delivers 1080p resolution video at 60Hz and supports 3D capable devices, catering to the demands of today's high-tech environments. The impressive 328-foot reach of the HD-One DX outperforms HDMI cables, which can be challenging to terminate, expensive, and may degrade picture quality over short distances.

The use of UTP cable, which is cost-effective and easy to terminate in the field, makes the HD-One DX a practical choice for extending HDMI or DVI sources to any display. With its robust construction and advanced features, the HD-One DX 4K UHD HDMI HDBaseT Video and Audio Extension Kit is a testament to Magenta Research's commitment to high-quality, efficient, and reliable audio-visual solutions.

Magenta Research HD-One DX Features

  • 1920x1080, 1080P/60, Resolution, 4K UHD (LX,DX)
  • Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
  • Supports Embedded HDMI Audio, Including Dolby TrueHD and DTS-HD Master Audio
  • No Adjustments or Tuning Required
  • 328' (100m) Reach
  • 200' (60m)Reach 4k Resolutions
  • HDMI 1.4 Compliant, HDBaseT
  • HDCP Compliant
  • Bi-Directional RS-232 Interface (HD-One LX/LX500)
  • Two-Way IR Support (HD-One LX/LX500)
  • Tolerances Designed for Commercial Environments
  • Compatible with CORIOmax HDBaseT input and output modules

Key Features

  • Extend your HDMI signal with this 4K UHD HDMI HDBaseT video and audio extension kit.
  • Enjoy reliable video transmission with HDBaseT tech, perfect for digital signage setups.
  • Experience high-quality video with HDMI 1.4 & HDCP compliance for crystal-clear images.
  • Achieve long-range connectivity using CAT6/6a/7 UTP cables for robust video signals.
  • This affordable video extension kit supports up to 4K UHD at 30Hz for stunning visuals.
  • Easy setup for museums, retail, education, and home theaters with low latency.

What's in the box:

  • Magenta Research HD-One DX Transmitter
  • Receiver
  • Magenta 3 Year Warranty
