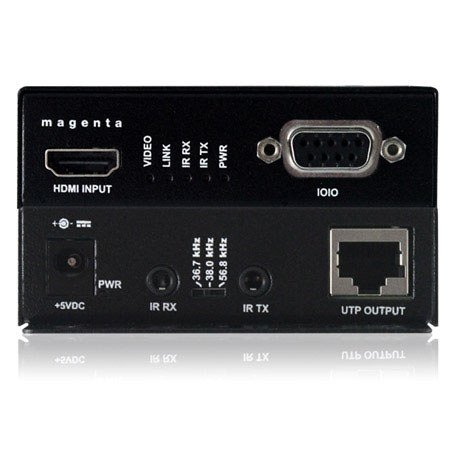

Magenta Research HD-One LX500 HDMI, IR and RS-232 Extender Kit
See all Magenta Research items

Magenta Research HD-One LX500 HDMI, IR & RS-232 Extender Kit, Includes Transmitter/Emitter, Receiver, 2x IR Dongle, 2x Universal Power Supply

SKU: MR221111301

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Magenta Research HD-One LX500 Specifications

  • Connectors Required

    Transmitter:
    Video In: HDMI type A
    Audio In: Embedded with video signal
    UTP Out: RJ-45 (1)
    Receiver:
    Video Out: HDMI type A
    Audio Out: Embedded with video signal
    UTP In: RJ-45 (1)

  • Video Supported

    HDMI/DVI Video Modes, including standard formats at 60Hz:640x480, 800x600, 1024x768, 1152x864,1280x768, 1280x960, 1280x1024, 1360x760, 1366x768, 1600x1200,1680x1050, 1920x1080, 1920x1200
    HDTV: 480p,720p,1080i and 1080p

  • Resolution

    1920x1200 at 60Hz

  • Bandwidth

    3.4 Gbps

  • Audio Support

    HDMI 1.3 audio: SPDIF two channel PCM or 5.1, 6,1 Dolby Digital or DTS)

  • Serial Baud Rate:

    Up to 115200 bps; Full Duplex

  • IR Support:

    36.7, 38.0 or 56.8 kHz modulated emitter output; Bi-directional

  • Cable Supported

    High quality CAT5e, Cat6, CAT6e, CAT7, UTP / STP or FTP

  • Daisy Chain Capability

    None

  • Power

    +5 VDC at 2.6A max each unit

  • Power Consumption

    1200 mA maximum

  • Temperature Tolerance

    Operating Temp: 0 to 55deg. C
    Storage Temp: -20 to 85deg. C

  • Humidity Tolerance

    Up to 95% Non-Condensing

  • Enclosure

    Metal

  • Size

    Each unit: 5.1 x 3.5 x 1.2" (12.95 x 8.89 x 3.04cm)

  • Weight

    Each: 0.60lbs (0.27kg)

  • UPC Code

    840014181995

About Magenta Research HD-One LX500

The Magenta Research HD-One LX500 HDMI, IR and RS-232 Extender Kit delivers reliable, uncompressed, high-definition video over a single CAT5e/6/6e/7 cable to a distance of up to 500' (152m). It consists of a transmitter and an extender unit. It uses less power, dissipates less heat and provides significantly better resistance to environmental emissions and interference.

This LX series extender offers additional support for bi-directional RS-232 and 2-way IR signals. For ease of use, the LX kit comes with a set of IR emitter/receiver cables. The LX receiver is also tunable to 3 different IR bands (36.7, 38.0, or 58.8 kHz). This extender kit is fully HDCP compliant and features plug-and-play functionality.

HDMI cables are difficult to terminate. UTP cables, meanwhile, are both cost-effective and easy to terminate in the field, making it easy for extending and HDMI or DVI source to almost any display.

Magenta Research HD-One LX500 Features

  • Extends HDMI or DVI, serial and IR signals over Category 5e/6/6a/6e/7 UTP, STP, or FTP cable
  • Single UTP cable (sold separately) transfers video, audio and HDCP signals
  • An external switch lets you easily select from the following IR operating modes: 36.7, 38, or 56.8 kHz
  • Extends uncompressed HD video (1920x1200 at 60Hz) up to 500' (152m)
  • Audio transmission supports Dolby TrueHD and DTS-HD Master Audio
  • HDMI 1.4 and HDCP compliant
  • No adjustments or tuning required
  • Bi-directional RS-232 interface
  • Two-way IR support (two IR dongles included)
  • Integrated mounting flange
  • Tolerances designed for commercial environments
  • Typical applications include museums; large retail environments; high-end security, education and residential environments; digital signage, wayfinding installations; and home theater

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • External switch to select IR operating modes
  • HDMI 1.4 and HDCP compliant
  • No adjustments or tuning required
  • Bi-directional RS-232 interface
  • Two-way IR support (two IR dongles included)
  • Integrated mounting flange

What's in the box:

  • Magenta Research Transmitter/Emitter
  • Receiver Unit
  • 2 x IR Dongle
  • 2 x Universal Power Supply
  • Magenta Research 3 Year Warranty
