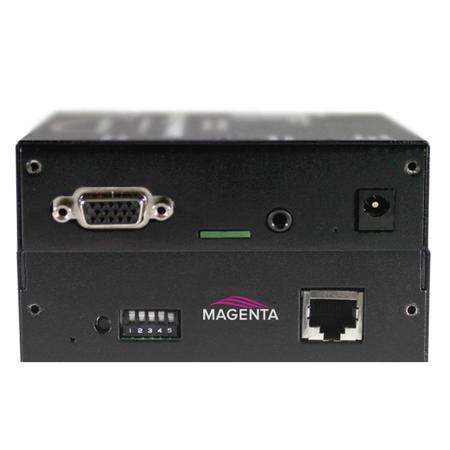

Magenta Research MultiView II STx-A Video & Audio Transmitter
See all Magenta Research items

Magenta Research MultiView II STx-A Video & Audio Transmitter, 1920x1200 Resolution, 75 Ohms Video In/Out Impedance, Magenta Magic & Copy Options

SKU: MR262000102
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Magenta Research : Picture 1 regular
Magenta Research Infinea DVI Video Transmitter
$1,250.00
Magenta Research : Picture 1 regular
Magenta Research Infinea DVI Video Receiver
$1,250.00
Magenta Research Infinea DVI-SAP: Picture 1 regular
Magenta Research Infinea DVI-SAP Video Transmitter
$1,325.00
Magenta Research Infinea DVI-SAP: Picture 1 regular
Magenta Research Infinea DVI-SAP Daisy Chain Receiver
$1,325.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Magenta Research MultiView II STx-A Specifications

  • Video In

    HD15-F

  • Audio In

    3.5mm (1/8")

  • UTP Out

    RJ-45

  • Video Support

    All VESA modes to WUXGA (1920x1200), RGBHV, RGB Composite (NTSC, PAL, SECAM), S-Video, Component Video Widescreen Modes, HDTV Modes including 1080p, 1080i & 720p

  • Resolution / Refresh Rate

    To 1920x1200 at 60 Hz (MultiView Receiver Dependent)

  • Required Source Impedance

    Video Out: 75 Ohms; Audio Out (if applicable) 600 Ohms maximum

  • Required Destination Impedance

    Video In: 75 Ohms; Audio In (If applicable) 600 Ohms maximum

  • Audio Support

    Left/Right Summed Audio

  • Cable Supported

    Category 5, 5e and 6 Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP) low-skew

  • Cascading Capability

    No

  • Compliance

    CE; FCC Class A, IC Class A, UL listed I.T.E. Device, RoHS

  • Power

    +5 VDC at 260mA Maximum. Consumption 5 Watts Maximum

  • Temperature Tolerance

    Operating: 32 to 104deg.F (0 to-40deg.C)
    Storage: -4 to 140deg.F (-20 to 60deg.C)

  • Humidity Tolerance

    Up to 80% Non-Condensing

  • Mounting

    Rack Mount Standard/Wall Mount Optional

  • Enclosure

    Steel
    Black Powder-Coat Finish

  • Dimensions (H x W x D)

    1.23 x 3.34 x 4.19" (3.12 x 8.48 x 10.64cm)

  • Weight

    0.62lbs (0.28kg)

About Magenta Research MultiView II STx-A

The Magenta Research MultiView II STX-A Video & Audio Transmitter handles high-resolution video and audio on a single UTP cable, but now boasts a variety of new modes of operation for handling DDC and sync all of which make replicating 1080p resolution video easier than ever before.

Fully compatible with all products in the MultiView -A (video and audio) range, the MultiView II STX-A is capable of delivering 1920x1200 resolution video to distances of 2,000 feet/609meters when paired with an appropriate MultiView receiver.

DDC choices include a Magenta Magic profile (which supports the most popular VESA resolution standards in both widescreen and standard formats) and the ability to copy and store DDC information from a specific device. Sync modes include Magenta's innovative new RepliSync-II technology, which is capable of encoding and decoding very narrow sync pulses that some of today's high resolution devices require.

Magenta Research MultiView II STx-A Features

  • RGBHV and non-RGBHV1 video support
  • "Magenta Magic" and "copy" DDC options
  • New video sync operating modes (featuring ReplicSync-II)
  • Compatible with all MultiView-A transmitters, receivers, distribution amplifiers and matrix switchers
  • Supports 1920x1200 resolution from 1 to 2000ft/609m3
  • Optional mount kits and mini-dense power supplies for rack-mount / rigid installations
