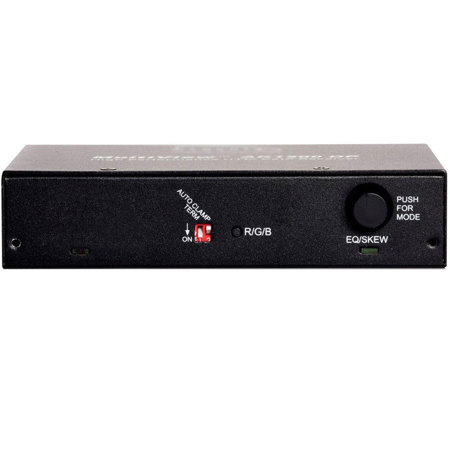

Magenta Research MultiView II XRTx -A/-S Video and Audio UTP Transmitter

SKU: MR262000203 MFR: 2620002-03
Earn VIP Reward Points

Key Features

  • Extend your video and audio signals with this reliable UTP transmitter for KVM applications.
  • Enjoy high-resolution video up to WUXGA (1920x1200) with this versatile video and audio transmitter.
  • This durable steel transmitter supports a wide range of VESA & HDTV modes for seamless connectivity.
  • Easily integrate audio with 4-pin Phoenix connectors, or utilize serial support up to 115.2K baud.
  • Use standard Cat5/5e/6 cables for a cost-effective KVM extension solution with this transmitter.
  • This compact transmitter is rack mountable, saving space and simplifying your KVM setup.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magenta Research Multiview II XRTx -A/-S Specifications

  • Video In

    -A: HD15-F
    -S: HD15-F

  • Video Out

    -A: HD15-F
    -S: HD15-F

  • Audio In

    -A: 4-pin Phoenix

  • Serial In

    -A: 4-pin Phoenix (replace audio-in)
    -S: 4-pin Phoenix

  • UTP Out

    -A: RJ-45
    -S: RJ-45

  • Video Support

    All VESA modes to WUXGA (1920x1200), RGBHV, RGB Composite (NTSC, PAL, SECAM), S-Video, Component Video Widescreen Modes, HDTV Modes including 1080p, 1080i & 720p

  • Resolution / Refresh Rate

    MultiView Receiver Dependent

  • Required Source Impedance

    Video Out: 75 Ohms
    Audio Out (if applicable) 600 Ohms maximum
    SPDIF Audio models: 75 Ohms

  • Required Destination Impedance

    Video In: 75 Ohms
    Audio In (If applicable) 600 Ohms maximum
    SPDIF Audio models: 75 Ohms

  • Audio Support

    -A: Left/Right Summed Audio
    47K ohms input impedance.
    A source device with 600 ohms maximum output impedance is recommended (analog audio input mode)

  • Serial Support

    -S: Simplex-serial, any speed up to 115.2K baud. Transparent to format and protocol.

  • Cable Supported

    Category 5, 5e and 6 Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP), low-skew preferred or skew-free cable.

  • Cascading Capability

    Yes, Video Only

  • Compliance

    CE; FCC Class A, IC Class A, I.T.E. Device, RoHS

  • Power

    +5 VDC @ 1.2 Amps max.,
    Consumption: 6 Watts Maximum

  • Temperature Tolerance

    Operating: 32 to 104 deg. F / 0 to 40 deg. C
    Storage: -4 to 140 deg. F / -20 to 60 deg. C

  • Humidity Tolerance

    Up to 80% Non-Condensing

  • Mounting

    Rack Mount Standard/Wall Mount Optional

  • Enclosure

    Steel, Black Powder-Coat Finish

  • Size (H x W x D)

    3.1 x 10.4 x 10.9cm / 1.22 x 4.09 x 4.29"

  • Weight

    0.27kg / 0.60lbs

  • Skew Compensation

    0.45kg / 0.99lbs

About Magenta Research Multiview II XRTx -A/-S

What sets the MultiView II XRTX -A/-S Video and Audio UTP Transmitter apart is its role as a crucial component in the advanced MultiView video over UTP series. This enhanced transmitter is available in a wide array of configurations (-A, -S, -232, -SA, and -SAP), offering versatility and compatibility with any component within the MultiView system. This includes all receivers, distribution amplifiers, and matrix switchers, making it a flexible solution for various audio and video needs.

The MultiView II XRTX transmitter stands out for its unparalleled UTP extension capability. When paired with the right receivers, it delivers the longest UTP extension in the world at the highest resolution, achieving 1920x1200 at a distance of up to 2000ft/609m. This makes it a leader in its field for delivering high-quality video and audio over long distances.

In addition to its impressive performance, the MultiView II XRTX transmitter also boasts new and improved features. It comes with enhanced sync technology, making the replication of 1080p (and higher) video easier than ever before. This ensures that your video content is always clear and sharp, regardless of the distance it's being transmitted over.

Moreover, the transmitter features a more user-friendly configuration interface. Virtually any necessary adjustments to the XRTX can now be made externally, making it easier for users to customize their settings and achieve the best possible performance. This improved interface, combined with its high-quality transmission and versatile compatibility, makes the MultiView II XRTX -A/-S Video and Audio UTP Transmitter an essential tool for any professional audio and video setup.

Magenta Research Multiview II XRTx -A/-S Features

  • RGBHV and non-RGBHV video support
  • Available in all MultiView-'X' functionality versions
  • Compatible with all MultiView transmitters, receivers, distribution amplifiers and matrix switchers
  • All external configuration scheme
  • Improved sync technology
  • Supports 1920x1200 resolution from 1 to 2000ft/609m
  • Local out / Cascade support
  • DDC / EDID support
  • Optional mount kits and mini-dense power supplies for rack-mount / rigid installations

Key Features

  • Extend your video and audio signals with this reliable UTP transmitter for KVM applications.
  • Enjoy high-resolution video up to WUXGA (1920x1200) with this versatile video and audio transmitter.
  • This durable steel transmitter supports a wide range of VESA & HDTV modes for seamless connectivity.
  • Easily integrate audio with 4-pin Phoenix connectors, or utilize serial support up to 115.2K baud.
  • Use standard Cat5/5e/6 cables for a cost-effective KVM extension solution with this transmitter.
  • This compact transmitter is rack mountable, saving space and simplifying your KVM setup.

What's in the box:

  • Magenta Research MultiView II XRTx -A/-S Video and Audio UTP Transmitter
  • Magenta Research 3 Year Warranty
