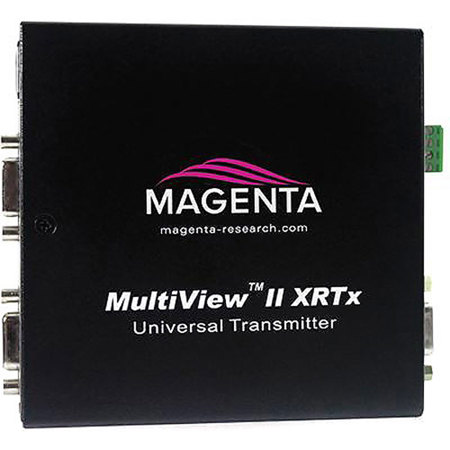

Magenta Research MultiView II XRTX-SAP Video and Audio UTP Twisted Pair Extension Transmitter, Up to 1920x1200 Resolution Support, Up to 2000' Extension

SKU: MR262001604 MFR: 2620016-04
Earn VIP Reward Points

Key Features

  • Extend your video and audio signals up to 2000 feet with this UTP extension transmitter.
  • Achieve crystal-clear visuals with up to 1920x1200 resolution support for your displays.
  • Enjoy true stereo audio alongside your video, enhancing your multimedia experience seamlessly.
  • This VGA extender supports both RGBHV and non-RGBHV video formats for versatile connectivity.
  • Use standard Category 5/5e/6 cable with this video transmitter for easy and reliable setup.
  • Compact design (1.2 x 4.2 x 4.3") of this audio/video extender fits seamlessly into any setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magenta Research MultiView II XRTX-SAP Specifications

  • Video support

    RGBHV and non-RGBHV

  • Resolution

    1920x1200 at 2000' / 609.6m

  • Cable Required

    Category 5, 5e, 6 cable. Shielded or unshielded twisted pair. Low-skew preferred.

  • Compliance

    CE, FCC Class A, IC Class / Class A, I.T.E Device, RoHS.

  • Video Support

    VGA (RGB+HV). Also, component (YPbPr) and composite video formats are supported by using an optional media break-out cable.

  • Audio Characteristics

    Left/Right true stereo audio

  • Serial Characteristics

    Speed is adjustable in 9 steps from 1200 to 115.2K baud
    Format is fixed to 8 data no parity
    Transparent to protocol.

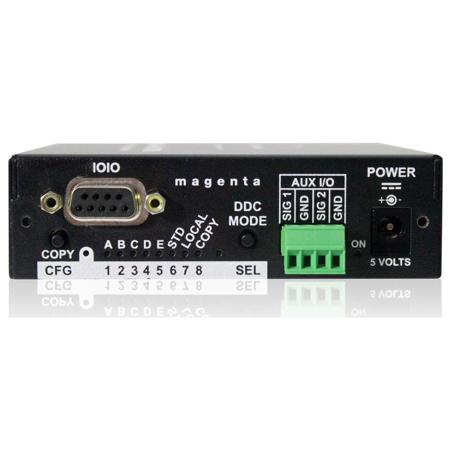

  • Connectors

    2x VGA-female: Video in/out.
    RJ-45: MultiView II CAT5 link output.
    4 position phoenix: Auxiliary signal input.
    Coaxial (5.5mm OD, 2.5mm ID, 11mm L) jack: DC power input.
    DB9-F: Serial I/O.

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Humidity

    Tolerance Up to 80% non-condensing

  • Enclosure

    Steel, black powder-coat finish

  • Power Input voltage

    +5 VDC at 1.2 Amps max

  • Consumption

    6 watts maximum

  • MTBF

    100,000 hours

  • Video input formats (video input port)

    Maximum resolution supported = 1080p or 1920x1200.
    Maximum refresh rate = 60Hz at 1920x1200copy of the video input port

  • Video output formats (local output port)

    The local port is essentially a direct

  • Video Connectors

    VGA input connector, VGA output connector

  • DDC

    Supports the DDC connections on the VGA connectors

  • Dimensions (H x W x D)

    1.2 x 4.2 x 4.3" / 3.05 x 10.67 x 10.92cm

  • Weight

    1.0lbs / 0.45kg

About Magenta Research MultiView II XRTX-SAP

Just imagine the possibilities with the high-quality MultiView II XRTX-SAP Video and Audio UTP Twisted Pair Extension Transmitter. This innovative device is a crucial component in the MultiView video over UTP range, offering unmatched versatility with its compatibility with all components in the MultiView system, including all receivers, distribution amplifiers, and matrix switchers.

Designed to deliver superior performance, the XRTX transmitter supports an impressive resolution of up to 1920x1200, providing crystal-clear video quality. What sets this device apart is its unparalleled UTP extension capability, reaching up to 2000 feet or 609 meters. This makes it an ideal solution for large spaces like conference rooms or auditoriums where direct cable connection from the source to the display is not feasible.

The MultiView II XRTX transmitter has been enhanced with advanced sync technology, making the replication of 1080p and higher video easier than ever before. This reliable and user-friendly device also features an external configuration interface, allowing for effortless adjustments as needed.

The device adheres to standard VGA interface specifications for its video-input and supports DDC. It also includes a stereo L/R audio input with a 10K ohms input impedance, and it is recommended to be used with a source device with a maximum output impedance of 600 ohms. The local-output port drive impedance ensures that the video output will be a direct copy of any video input, even if the video input is in component (YPbPr) or composite format. If the video input is VGA, then standard VGA interface specifications apply at the local video-output port, and DDC is supported.

In essence, the durable MultiView II XRTX-SAP Video and Audio UTP Twisted Pair Extension Transmitter is a game-changer in the realm of video and audio transmission, offering superior resolution support and extension distance.

Magenta Research MultiView II XRTX-SAP Features

  • High-quality video and audio UTP twisted pair extension transmitter with up to 1920x1200 resolution support
  • Unparalleled UTP extension capability reaching up to 2000 feet or 609 meters
  • Compatible with all components in the MultiView system, including receivers, distribution amplifiers, and matrix switchers
  • Enhanced with advanced sync technology for easier replication of 1080p and higher video
  • User-friendly external configuration interface for effortless adjustments
  • Adheres to standard VGA interface specifications for video-input and supports DDC

Key Features

  • Extend your video and audio signals up to 2000 feet with this UTP extension transmitter.
  • Achieve crystal-clear visuals with up to 1920x1200 resolution support for your displays.
  • Enjoy true stereo audio alongside your video, enhancing your multimedia experience seamlessly.
  • This VGA extender supports both RGBHV and non-RGBHV video formats for versatile connectivity.
  • Use standard Category 5/5e/6 cable with this video transmitter for easy and reliable setup.
  • Compact design (1.2 x 4.2 x 4.3") of this audio/video extender fits seamlessly into any setup.

What's in the box:

  • Magenta Research MultiView II XRTX-SAP Video and Audio UTP Extension Transmitter
  • Magenta Research 3 Year Warranty
