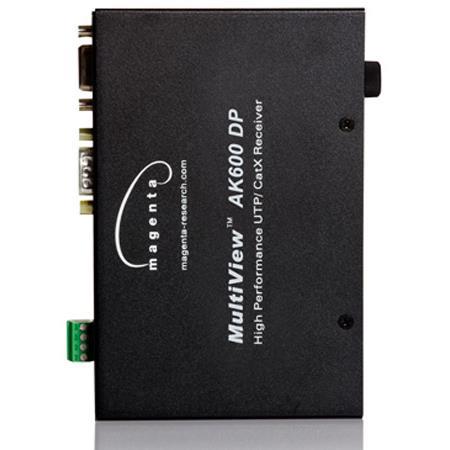

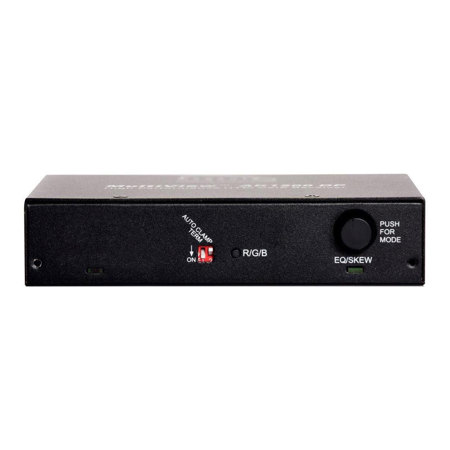

Magenta Research MultiView II AK600DP-SAP Receiver with Video, Addressable Duplex Serial, Stereo Audio and Akucomp II, 600'

A high-performance addition to the MultiView building block components, the MultiView II AK600DP-SAP Receiver is designed to support the extension of 1920x1200 resolution video over distances ranging from 1 to 600ft/183m. This latest iteration of the AK600 receiver showcases enhanced sync management and handling, offering streamlined fourth pair options for audio and/or serial.

The MultiView II AK600DP-SAP Receiver features an external configuration scheme, providing users with complete control over the unit. This design improvement makes the product simpler to set up and adjust, and even more proficient at replicating 1080p (and higher) high-resolution video.

One of the standout features of the AK600DP-SAP Receiver is its built-in daisy chaining capability. This allows the AK600DP to be integrated into a chain of up to 12 compatible MultiView receivers, expanding its versatility and application range.

The AK600DP-SAP Receiver utilizes distance equalization based on Digitally Controlled, Complex State Variable Filter technology. This advanced feature ensures the delivery of pristine image and sound quality across the entire supported distance range.

For applications where high distance and resolution requirements are present, and skew free UTP cabling is not utilized, the AK600DP-SAP Receiver is also equipped with Magenta's AkuComp II technology. This innovative technology can compensate for up to 62ns of cable skew, ensuring optimal performance in a variety of settings.

In summary, the MultiView II AK600DP-SAP Receiver with Video, Addressable Duplex Serial, Stereo Audio and Akucomp II, 600' is a robust and versatile solution for high-resolution video extension needs.
