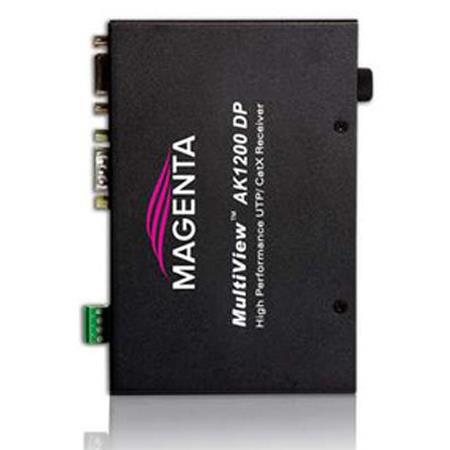

Magenta Research MultiView II AK1200DP-SAP Receiver with Video, Stereo Audio, Addressable Duplex Serial and Akucomp II, 1200'

SKU: MR262003003 MFR: 2620030-03
Earn VIP Reward Points

Key Features

  • Extend your video and audio signals up to 1200' with this reliable KVM receiver.
  • Enjoy compatibility with all VESA modes to WUXGA (1920x1200) using this receiver.
  • This receiver supports stereo audio and addressable duplex serial for seamless connectivity.
  • Use standard Category 5/5e/6 UTP cables for a simple and effective KVM setup.
  • Daisy chain multiple units for expanded KVM functionality and enhanced performance.
  • Compact design allows for rack or wall mounting, saving space with this KVM solution.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magenta Research AK1200DP-SAP Specifications

  • Video Out

    HD15-F

  • Audio Out

    4 Pin Phoenix

  • Serial Out

    DB9M

  • UTP In

    RJ-45

  • UTP Out

    RJ-45

  • Video Supported

    All VESA modes to WUXGA (1920x1200), RGBHV, RGB, RGsB, RGBs, Composite (NTSC, PAL, SECAM), S-Video, Component Video Widescreen Modes, HDTV Modes including 1080p, 1080i & 720p

  • Resolution

    1920 x 1200 (incl. 1080p) at 1200' (366m) or less

  • Required Source Impedance

    Video Out: 75 Ohms; Audio Out (if applicable) 600 Ohms maximum; SPDIF Audio models: 75 Ohms

  • Required Destination Impedance

    Video In: 75 Ohms; Audio In (If applicable) 600 Ohms maximum; SPDIF Audio models: 75 Ohms

  • Audio Support

    Stereo Audio

  • Serial Support

    Addressable Duplex (3 wire, fixed baud rate 9600)

  • Cable Supported

    Category 5, 5e and 6 Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP) or skew-free cable. Please see the "Recommended UTP" page for more detailed information

  • Daisy Chain Capability

    Yes, Standard

  • Compliance

    CE; FCC Class A, IC Class A, UL listed I.T.E Device

  • Power

    Input voltage: +5 VDC at 1.2 Amps max. Consumption: 6 watts maximum

  • Temperature Tolerance

    Operating: 32 to 104 deg. F (0 to-40 deg. C) Storage: -4 to 140 deg. F (-20 to 60 deg. C)

  • Humidity Tolerance

    Up to 80% Non-Condensing

  • Mounting

    Rack Mount Standard/Wall Mount Optional

  • Dimensions (H x W x D)

    1.2 x 5.5 x 3.6" / 3.05 x 13.97 x 9.14cm

  • Weight

    1lbs / 0.45kg

About Magenta Research AK1200DP-SAP

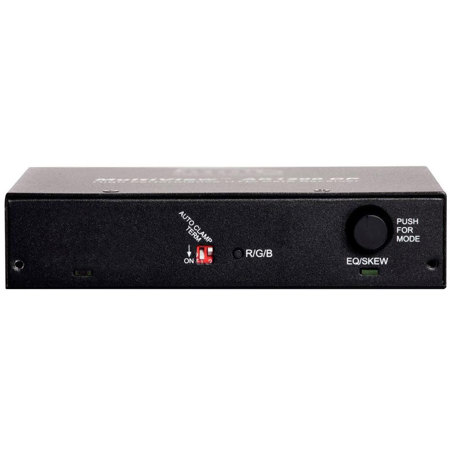

An innovative and high-quality addition to the MultiView building block components, the MultiView II AK1200DP-SAP Receiver is designed to support the extension of 1920x1200 resolution video from 1 to 1200ft/366m. This latest iteration of the AK1200 receiver showcases enhanced sync management and handling, along with streamlined fourth pair options for audio and/or serial.

The receiver's external configuration scheme empowers users with complete control over the unit, making it more user-friendly and easier to set up and adjust. It excels at replicating 1080p (and higher) high-resolution video, making it a reliable choice for professionals seeking superior video quality.

The AK1200DP-SAP Receiver's built-in daisy chaining capability allows it to be integrated into a chain of up to 12 compatible MultiView receivers, enhancing its versatility. It employs distance equalization based on patent-pending Digitally Controlled, Complex State Variable Filter technology, ensuring pristine image and sound quality across the entire supported distance range.

For applications where the distance and resolution requirements are high and skew-free UTP cabling is not utilized, the AK1200DP-SAP Receiver is equipped with Magenta's AkuComp II technology. This advanced feature can compensate for up to 62ns of cable skew, further enhancing the receiver's performance and compatibility with a wide range of devices.

In summary, the MultiView II AK1200DP-SAP Receiver is a durable, innovative, and user-friendly solution for professionals requiring high-quality audio and video output.

Magenta Research AK1200DP-SAP Features

  • RGBHV and non-RGBHV video support
  • Available in all MultiView-'X' functionality versions
  • Compatible with all MultiView transmitters, receivers, distribution amplifiers and matrix switchers• Local UTP output for daisy chain support
  • Akucomp II technology for skew compensation
  • Optional mount kits and mini-dense power supplies for rack-mount / rigid installations
  • Line Level 600 Ohm Unbalanced

Key Features

  • Extend your video and audio signals up to 1200' with this reliable KVM receiver.
  • Enjoy compatibility with all VESA modes to WUXGA (1920x1200) using this receiver.
  • This receiver supports stereo audio and addressable duplex serial for seamless connectivity.
  • Use standard Category 5/5e/6 UTP cables for a simple and effective KVM setup.
  • Daisy chain multiple units for expanded KVM functionality and enhanced performance.
  • Compact design allows for rack or wall mounting, saving space with this KVM solution.

What's in the box:

  • Magenta Research MultiView II AK1200DP-SAP Receiver
  • Magenta Research 3 Year Warranty
