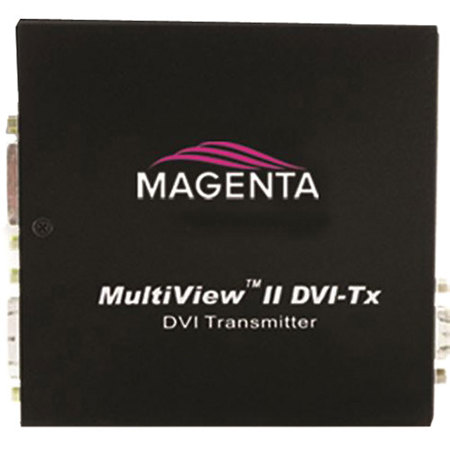

Magenta Research MultiView II DVI-Tx-SAP Twisted Pair Digital Video Extension Transmitter, Up to 1920x1080 Resolution Support, Up to 2000' Extension

SKU: MR262006602 MFR: 2620066-02
Earn VIP Reward Points

Key Features

  • Extend your digital video signal up to 2000' with this reliable DVI extension transmitter.
  • Enjoy crystal-clear resolutions up to 1920x1080, ensuring top-notch video quality with this device.
  • This DVI transmitter supports both VESA and CEA video formats for versatile compatibility.
  • Connect to HDMI devices using a simple adapter for expanded connectivity options with this device.
  • Ensure seamless integration with existing systems using standard DVI interface specifications.
  • Built with a durable steel enclosure, this DVI transmitter is designed for long-lasting performance.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magenta Research MultiView II DVI-Tx-SAP Specifications

  • Compatible receivers

    All analog MultiView receivers and the new DVI RX

  • Cable Required

    Category 5, 5e, 6 cable. Shielded or unshielded twisted pair. Low-skew.

  • Compliance

    CE, FCC Class A, IC Class / Class A, UL listed I.T.E Device, RoHS.

  • Resolution & Refresh Rate

    Established timings: 640x480 at 60Hz 800x600 at 60Hz 1024x768 at 60Hz
    1280x1024 at 60Hz 1360x768 at 60Hz 1600x1200 at 60Hz
    1680x1050 at 60Hz 1920x1080 at 60Hz 1920x120 at 60Hz
    Detailed timings: 1920x1080 at 60Hz

  • CEA video formats

    720x480p at (59.94,60Hz) at 4:3 720x576p at 50Hz at 4:3
    1280x720p at 50Hz at 16:9 1280x720p at (59.94,60Hz) at 16:9
    1920x1080p at 50Hz at 16:9 1920x1080p at (59.94,60Hz) at 16:9
    Specific timings 1280x720 at 60Hz 720x480 at 59.94Hz 1920x1200 at 59.94Hz

  • Simplex RS-232 input

    4.75K Ohms input impedance (RS-232 mode)

  • SPDIF input

    75 Ohms input impedance (S/PDIF input mode)

  • Duplex input

    4.75K Ohms input impedance

  • Duplex (SAP) option modules

    Stereo L/R audio input: 10K Ohms input impedance. A source device with 600 Ohms maximum output impedance is recommended.

  • Supported Video Formats

    VESA and CEA video formats, input on a digital DVI-D connector
    Supported video formats include 1080p/60/24

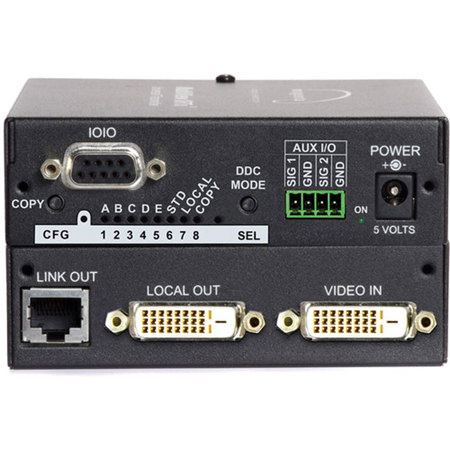

  • Connectors

    2x DVI-D (F) (Video in/out)
    1x 4 pin phoenix (Auxiliary signal input)
    1x RJ-45 (F/UTP link output)
    1x DB9F
    1x DC power jack

  • Local-output Port Drive Impedance

    Standard DVI interface specifications apply (at local video-output port)

  • Enclosure

    Steel (0.040"/1mm thick).
    Powder-coat black paint, white epoxy graphics

  • EDID/DDC

    Supports the EDID/DDC connections on the DVI-I connectors

  • HDMI

    It is possible to connect to HDMI devices (via a plug-adapter or cable-adapter). Embedded HDMI audio is supported

  • Power

    Input voltage: +5 VDC at 1.2 Amps max.
    Consumption: 6 watts maximum

  • Operating temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Humidity

    80% RH, non-condensing.

  • MTBF

    100,000 hours.

  • Dimensions (H x W x D)

    1.2 x 4.2 x 4.3" / 3.05 x 10.67 x 10.92cm

  • Weight

    1.0lbs / 0.45kg

About Magenta Research MultiView II DVI-Tx-SAP

From the pioneers of digital video extension technology, the MultiView II DVI-Tx-SAP Twisted Pair Digital Video Extension Transmitter is a game-changer in the realm of high-quality video and audio distribution. This innovative device, an evolution from Magenta's globally acclaimed MultiView Series, now operates in the digital domain, offering enhanced possibilities for the switching, distribution, and extension of video, audio, and serial signals over UTP cable.

The MultiView II DVI Transmitter supports a digital 1080p DVI-D video input, ensuring the transmission of high-resolution images and videos. It's designed to be fully compatible with Magenta's Mondo Matrix UTP-based switching platform, allowing digital signals to seamlessly integrate into both new and existing Mondo-based projects. This compatibility enhances the adaptability of a switching system that can be configured in increments of 16 inputs/outputs, ranging from 16x16 to a massive 256x512.

One of the standout features of the MultiView II DVI-TX is its local DVI monitor-output and a series of user-friendly external buttons. These allow users to easily configure various DDC, sync, and fourth-pair modes of operation. For optimal performance, the device recommends widescreen resolutions of 1280x720/720p and 1920x1080/1080p.

The MultiView II DVI-TX is not only compatible with MultiView receivers but is also backwards compatible with Magenta's Mondo Matrix switching platform. It has the ability to convert a 1080p DVI-D input to a 1080p analog output, and supports HDMI embedded audio. The device also features a local DVI-D Output2 and is rack-mountable for convenience.

In terms of serial characteristics, the device supports duplex serial with 9 configurable baud rates. It's protocol-transparent but also supports serial-configuration mode. With its durable build and reliable performance, the MultiView II DVI-Tx-SAP Twisted Pair Digital Video Extension Transmitter is a valuable addition to any audio-visual setup.

Magenta Research MultiView II DVI-Tx-SAP Features

  • High-resolution digital video extension transmitter, supporting up to 1920x1080p resolution
  • Extended range of up to 2000', providing flexibility in device placement and setup
  • Compatible with Magenta's Mondo Matrix UTP-based switching platform for seamless integration
  • User-friendly external buttons for easy configuration of DDC, sync, and fourth-pair modes
  • Converts 1080p DVI-D input to 1080p analog output, supporting HDMI embedded audio
  • Rack-mountable design with duplex serial support and 9 configurable baud rates

Key Features

  • Extend your digital video signal up to 2000' with this reliable DVI extension transmitter.
  • Enjoy crystal-clear resolutions up to 1920x1080, ensuring top-notch video quality with this device.
  • This DVI transmitter supports both VESA and CEA video formats for versatile compatibility.
  • Connect to HDMI devices using a simple adapter for expanded connectivity options with this device.
  • Ensure seamless integration with existing systems using standard DVI interface specifications.
  • Built with a durable steel enclosure, this DVI transmitter is designed for long-lasting performance.

What's in the box:

  • Magenta Research MultiView II DVI-Tx-SAP Twisted Pair Digital Video Extension Transmitter
  • Magenta Research 3 Year Warranty
