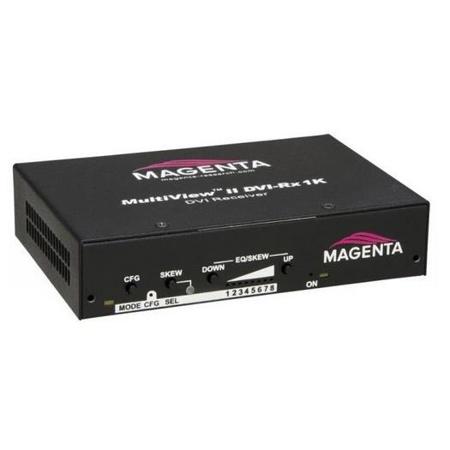

Magenta Research MultiView II DVI-Rx-1K-A/S Twisted Pair Digital Video Extension Receiver, Up to 1920x1080 Resolution Support, Up to 1000' Extension

SKU: MR262006801 MFR: MVII-DVI-RX-1K-S/A
Earn VIP Reward Points

Key Features

  • Extend your digital video signal up to 1000' with this DVI extension receiver.
  • Enjoy crystal-clear resolutions up to 1920x1080 with reliable DVI connectivity.
  • This twisted pair receiver supports both VESA and CEA video formats effortlessly.
  • Use standard CAT 5/5e/6 cable for a seamless, high-performance DVI extension setup.
  • Get peace of mind with a 3-year warranty, ensuring lasting durability for your setup.
  • This DVI receiver supports summed L+R analog audio for enhanced audio integration.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magenta Research MultiView II DVI-Rx-1K Specifications

  • Compatible transmitter

    MVII-DVI-Tx transmitter

  • Compliance

    CE, FCC Class A, IC Class / Class A, UL listed I.T.E Device, RoHS

  • Link Cable Required

    CAT 5, 5e, 6 or 6a. F/UTP type cable is recommended
    Regular or low-skew type is acceptable

  • Resolution & Refresh Rate

    Refresh Rate Established timings: 640x480 at 60Hz 800x600 at 60Hz 1024x768 at 60Hz
    1280x1024 at 60Hz 1360x768 at 60Hz 1600x1200 at 60Hz
    1680x1050 at 60Hz 1920x1080 at 60Hz 1920x1200 at 60Hz
    Detailed timings: 1920x1080 at 60Hz

  • CEA video formats

    720x480p at (59.94,60Hz) at 4:3 720x576p at 50Hz at 4:3
    1280x720p at 50Hz at 16:9 1280x720p at (59.94,60Hz) at 16:9
    1920x1080p at 50Hz at 16:9 1920x1080p at (59.94,60Hz) at 16:9
    Specific timings 1280x720 at 60Hz 720x480 at 59.94Hz 1920x1200 at 59.94Hz

  • Video-Output

    Standard DVI-D interface specifications apply. DDC/EDID is supported

  • Standard auxiliary Signals

    L+R summed audio input: 47K Ohms input impedance. A source device with 600 Ohms maximum output impedance is recommended.(analog audio input mode).

  • SPDIF input

    75 Ohms input impedance (S/PDIF input mode)

  • Duplex SAP option module

    Stereo L/R audio input: 10K Ohms input impedance. A source device with 600 Ohms maximum output impedance is recommended

  • RS-232 input

    4.75K Ohms input impedance

  • Local-output Port Drive Impedance

    Standard DVI interface specifications apply (at local video-output port). DDC/EDID is supported

  • Audio Characteristics

    Standard (A) version: Left+Right summed audio

  • Supported Video Formats

    VESA and CEA video formats, output on a digital DVI-D connector
    Supported video formats include 1080p/60/24

  • Audio Signals

    (-A) mode: Line-level, summed L+R, analog audio.
    (S/PDIF) mode: Supports copper S/PDIF digital-audio.
    The DVI-Tx (transmitter) can also de-embed 2CH-PCM digital audio, which is presented as a S/PDIF digital audio stream at the DVI-Rx receiver

  • Serial Characteristics

    (S) mode
    Protocol: Asynchronous, transparent to data format, transparent to data rates up to 115kbps, simplex

  • Connectors

    1x 4 pin phoenix
    2x RJ-45 (1 input, 1 active loopthrough)
    1x DVI-D (F)
    1x DC Power jack

  • EDID/DDC

    Supports the EDID/DDC connections on the DVI-I connectors

  • HDMI

    It is usually possible to connect to HDMI devices (via a plug-adapter or cable-adapter)
    Embedded HDMI audio is not supported

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Humidity

    10 to 80% RH non-condensing

  • Power

    Input voltage: +5VDC at 1.2A max.
    Consumption: 6W maximum

  • Dimensions (H x W x D)

    1.2 x 5.5 x 3.6" / 3.05 x 13.97 x 9.14cm

  • Weight

    1lbs / 0.45kg

About Magenta Research MultiView II DVI-Rx-1K

The MVII-DVI-RX is a video receiver that is compatible with the MVII-DVI-TX transmitter and Mondo Matrix. It extends a high resolution video signal over standard CAT5 cable (or CAT5e, CAT6 or CAT6a). There are user-configurable settings for video, audio and serial options which can be controlled from the front panel.

The MVII-DVI-RX features automatically adjusted EQ and Skew compensation, greatly simplifying the initial installation and setup. These adjustments can also be fine-tuned manually. The skew compensation can be varied in 2 ns increments to 65 ns total per color-channel to cancel the effects of skew in Category cables. This feature allows you to use a variety of UTP cables (both "normal" and "minimized-skew" types) to lengths up to 1000ft (305m).

Magenta Research MultiView II DVI-Rx-1K Features

  • Compatible with MultiView II DVI-TX
  • Compatible with Magenta's Mondo Matrix switching platform
  • Compatible with most Multiview signal distribution accessories
  • Works with most HDMI sources and displays with resolutions up to 1080p
  • Configuration is automatic
  • Can be daisy-chained with up to 12 MV II DVI-RX-1K Receivers on each 1000ft run

Key Features

  • Extend your digital video signal up to 1000' with this DVI extension receiver.
  • Enjoy crystal-clear resolutions up to 1920x1080 with reliable DVI connectivity.
  • This twisted pair receiver supports both VESA and CEA video formats effortlessly.
  • Use standard CAT 5/5e/6 cable for a seamless, high-performance DVI extension setup.
  • Get peace of mind with a 3-year warranty, ensuring lasting durability for your setup.
  • This DVI receiver supports summed L+R analog audio for enhanced audio integration.

What's in the box:

  • Magenta Research MultiView II DVI-Rx-1K-A/S Twisted Pair Digital Video Extension Receivers
  • Magenta Research 3 Year Warranty
