Magenta Research MultiView II DVI-Rx-1K-SAP Digital Video Extension Receiver

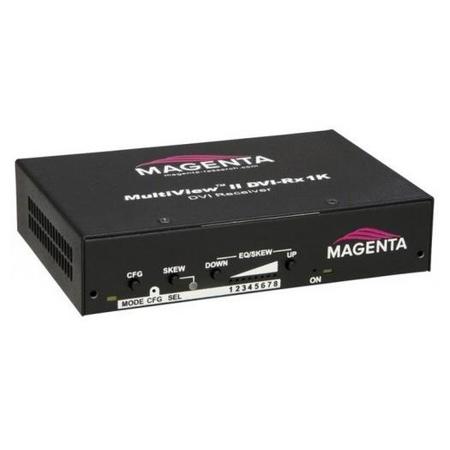

Magenta Research MultiView II DVI-Rx-1K: Picture 1 thumbnail
Magenta Research MultiView II DVI-Rx-1K: Picture 2 thumbnail
See all Magenta Research items

Magenta Research MultiView II DVI-Rx-1K-SAP Twisted Pair Digital Video Extension Receiver, Up to 1920x1080 Resolution Support, Up to 1000' Extension

SKU: MR262007101 MFR: 2620071-01
Be the first to review this itemAsk a Question
$899.00
OR
$75/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your digital video signal with this DVI extender receiver up to 1000 feet!
  • Experience crystal-clear video with resolutions up to 1920x1080 using this DVI receiver.
  • This twisted pair receiver supports CAT 5/5e/6 cables for reliable connectivity.
  • Enjoy wide compatibility with VESA and CEA video formats via a DVI-D connector.
  • The MultiView II DVI receiver supports EDID/DDC for seamless display communication.
  • Get true stereo audio with the duplex SAP option module on this Magenta Research receiver.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Magenta Research MultiView II DVI-Rx-1K Specifications

  • Compatible transmitter

    MVII-DVI-Tx transmitter

  • Compliance

    CE, FCC Class A, IC Class / Class A, UL listed I.T.E Device, RoHS

  • Link Cable Required

    CAT 5, 5e, 6 or 6a. F/UTP type cable is recommended
    Regular or low-skew type is acceptable

  • Resolution & Refresh Rate

    Refresh Rate Established timings: 640x480 at 60Hz 800x600 at 60Hz 1024x768 at 60Hz
    1280x1024 at 60Hz 1360x768 at 60Hz 1600x1200 at 60Hz
    1680x1050 at 60Hz 1920x1080 at 60Hz 1920x1200 at 60Hz
    Detailed timings: 1920x1080 at 60Hz

  • CEA video formats

    720x480p at (59.94,60Hz) at 4:3 720x576p at 50Hz at 4:3
    1280x720p at 50Hz at 16:9 1280x720p at (59.94,60Hz) at 16:9
    1920x1080p at 50Hz at 16:9 1920x1080p at (59.94,60Hz) at 16:9
    Specific timings 1280x720 at 60Hz 720x480 at 59.94Hz 1920x1200 at 59.94Hz

  • Video-Output

    Standard DVI-D interface specifications apply. DDC/EDID is supported

  • Standard auxiliary Signals

    L+R summed audio input: 47K Ohms input impedance. A source device with 600 ohms maximum output impedance is recommended.(analog audio input mode).

  • SPDIF input

    75 Ohms input impedance (S/PDIF input mode)

  • Duplex SAP option module

    Stereo L/R audio input: 10K Ohms input impedance. A source device with 600 Ohms maximum output impedance is recommended

  • RS-232 input

    4.75K Ohms input impedance

  • Local-output Port Drive Impedance

    Standard DVI interface specifications apply (at local video-output port). DDC/EDID is supported

  • Audio Characteristics

    SAP version: Left/Right true stereo audio.
    Embedded digital audio is not supported

  • Supported Video Formats

    VESA and CEA video formats, output on a digital DVI-D connector
    Supported video formats include 1080p/60/24

  • Audio Signals

    The DVI-Tx (transmitter) can also de-embed 2CH-PCM digital audio, which is presented as a S/PDIF digital audio stream at the DVI-Rx receiver

  • Serial Characteristics

    (-SAP) model only: Duplex serial, 9 configurable baud rates are supported. Protocol-transparent, but also supports serial-configuration mode.

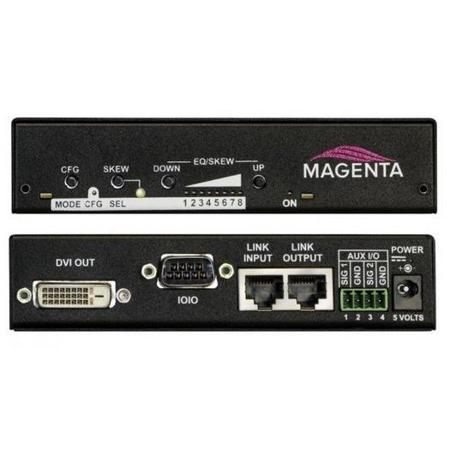

  • Connectors

    1x 4 pin phoenix
    2x RJ-45 (1 input, 1 active loopthrough)
    1x DVI-D (F)
    1x DB9M
    1x DC Power jack

  • EDID/DDC

    Supports the EDID/DDC connections on the DVI-I connectors

  • HDMI

    It is usually possible to connect to HDMI devices (via a plug-adapter or cable-adapter)
    Embedded HDMI audio is not supported

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Humidity

    10 to 80% RH non-condensing

  • Power

    Input voltage: +5VDC at 1.2A max.
    Consumption: 6W maximum

  • Dimensions (H x W x D)

    1.2 x 5.5 x 3.6" / 3.05 x 13.97 x 9.14cm

  • Weight

    1lbs / 0.45kg

About Magenta Research MultiView II DVI-Rx-1K

Discover the power and versatility of the MultiView II DVI-Rx-1K-SAP Twisted Pair Digital Video Extension Receiver. This advanced video receiver is fully compatible with the MVII-DVI-TX transmitter and the Mondo Matrix, offering seamless integration for your digital video needs.

Designed to extend high-resolution video signals up to 1920x1080 resolution, this device utilizes standard CAT5, CAT5e, CAT6, or CAT6a cables, providing flexibility and convenience in setup. With a remarkable extension capability of up to 1000 feet (305m), it ensures reliable video transmission even over long distances.

The MultiView II DVI-Rx-1K-SAP offers user-configurable settings for video, audio, and serial options, all easily controlled from the front panel. This allows for a tailored viewing and listening experience, catering to individual preferences and requirements.

One of its standout features is the automatically adjusted EQ and Skew compensation. This feature greatly simplifies the initial installation and setup, saving you time and effort. For those who prefer a more hands-on approach, these adjustments can also be manually fine-tuned to achieve the perfect balance.

The skew compensation can be varied in 2 ns increments up to a total of 65 ns per color-channel. This effectively cancels the effects of skew in Category cables, ensuring a clear and stable video output. This feature makes the MultiView II DVI-Rx-1K-SAP compatible with a wide range of UTP cables, including both "normal" and "minimized-skew" types.

Experience the difference with the MultiView II DVI-Rx-1K-SAP Twisted Pair Digital Video Extension Receiver, your solution for high-quality, extended-range digital video transmission.

Magenta Research MultiView II DVI-Rx-1K Features

  • Compatible with MultiView II DVI-TX
  • Compatible with Magenta's Mondo Matrix switching platform
  • Compatible with most Multiview signal distribution accessories
  • Works with most HDMI sources and displays with resolutions up to 1080p
  • Configuration is automatic
  • Can be daisy-chained with up to 12 MV II DVI-RX-1K Receivers on each 1000ft run

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your digital video signal with this DVI extender receiver up to 1000 feet!
  • Experience crystal-clear video with resolutions up to 1920x1080 using this DVI receiver.
  • This twisted pair receiver supports CAT 5/5e/6 cables for reliable connectivity.
  • Enjoy wide compatibility with VESA and CEA video formats via a DVI-D connector.
  • The MultiView II DVI receiver supports EDID/DDC for seamless display communication.
  • Get true stereo audio with the duplex SAP option module on this Magenta Research receiver.

What's in the box:

  • Magenta Research MultiView II DVI-Rx-1K-SAP Twisted Pair Digital Video Extension Receiver
  • Magenta Research 3 Year Warranty
