Magenta Research MultiView Morph-It Dual-Tx-SAP Transmitter Card with Local Monitor Out

SKU: MR400R387102 MFR: 400R3871-02
Earn VIP Reward Points

Key Features

  • Experience high-resolution video switching up to WUXGA (1920x1200) for crystal-clear visuals.
  • Enjoy wide compatibility with all VESA modes & HDTV formats, including 1080p, 1080i, and 720p.
  • Easily distribute video using Category 5/5e/6 cables for reliable connections in any setup.
  • Utilize the dual transmitter card for seamless video distribution and local monitor output.
  • Simplify setup with the Morph-It chassis, supporting up to 8 cards for scalable video solutions.
  • Ensure reliable connection with shielded/unshielded twisted-pair cables for optimal performance.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magenta Research Morph-It Dual-Tx-SAP Specifications

  • Video In

    2x HD15-F

  • Video Out

    2x HD15-F

  • Audio In

    4-pin Phoenix (-A model)

  • Serial In

    2x DB9F

  • UTP Out

    2x RJ-45

  • Video Support

    All VESA modes to WUXGA (1920x1200), RGBHV, RGB Composite (NTSC, PAL, SECAM), S-Video, Component Video Widescreen Modes, HDTV Modes including 1080p, 1080i & 720p

  • Resolution/Refresh Rate

    MultiView Receiver Dependent

  • Size

    Morph-It double-slot form factor (max 8 per frame)

  • Audio Support

    Stereo Audio

  • Serial Support

    Addressable Duplex-3 wire, fixed baud rate 9600

  • Cable Supported

    Category 5, 5e and 6 Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP) or skew-free cable

  • Cascading Capability

    Yes, Video Only

  • Compliance

    CE; FCC Class A, IC Class A, RoHS

  • Power

    170mA max (driving white screens)

  • Mounting

    Housed in Morph-It Chassis

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • AC Voltage

    90-264V

About Magenta Research Morph-It Dual-Tx-SAP

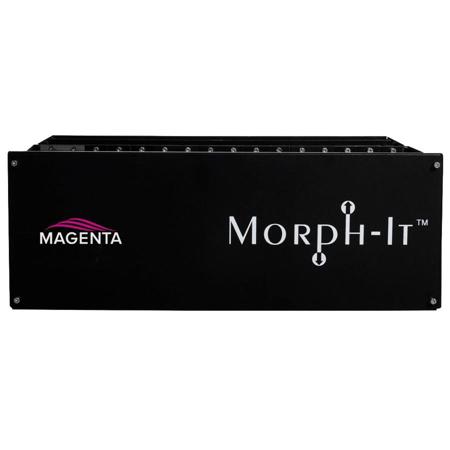

Ideal for installations containing a large number of local sources, Morph-It Dual MultiView Transmitter Cards are utilized in conjunction with the 4U Morph-It chassis to provide a modular, densely packed transmitter solution without the clutter of multiple boxes, power supplies and redundant cabling. Each transmitter card packs the equivalent of two transmitters and can deliver 16 or 32 transmitters per 16-slot, 4U Morph-It Chassis, all powered by a single backplane and power cord.

Morph-It Dual Transmitter Cards are available in all functionality types and can be paired with every component in the MultiView building block system, including receivers, distribution amplifiers and matrix switchers. When used with the appropriate receivers, Morph-It Dual-TX Transmitter Cards deliver the world's longest UTP extension capability at the highest resolution i.e. 1920x1200 at 2000ft/609m. Morph-It Dual EQ cards, especially useful in a matrix switch environment, can effectively zero out (null) UTP cable input lengths to a switch, ensuring that MultiView receiver adjustments remain accurate, while also allowing (in some instances) for the use of shorter-range MultiView receivers.

Magenta Research Morph-It Dual-Tx-SAP Features

  • 2 transmitters per card
  • 16 transmitters per 4U Morph-It chassis (32 for -A/-S versions without local monitor out)
  • Powered by Morph-It backplane - no external power supplies needed
  • RGBHV and non-RGBHV video support
  • Available in all MultiView-'X' functionality versions
  • Compatible with all MultiView transmitters, receivers, distribution amplifiers and matrix switchers
  • Supports 1920x1200 resolution from 1 to 2000ft/609m
  • Local out / Cascade support

Key Features

  • Experience high-resolution video switching up to WUXGA (1920x1200) for crystal-clear visuals.
  • Enjoy wide compatibility with all VESA modes & HDTV formats, including 1080p, 1080i, and 720p.
  • Easily distribute video using Category 5/5e/6 cables for reliable connections in any setup.
  • Utilize the dual transmitter card for seamless video distribution and local monitor output.
  • Simplify setup with the Morph-It chassis, supporting up to 8 cards for scalable video solutions.
  • Ensure reliable connection with shielded/unshielded twisted-pair cables for optimal performance.

What's in the box:

  • Magenta Research MultiView Morph-It Dual-Tx-SAP Transmitter Card with Local Monitor Out
  • Magenta Research 3 Year Warranty
