Mole-Richardson Molepar 1200 Watt HMI One Light Kit Specifications

  • Light Fixture: Rating

    575 - 1200 watts

  • Light Fixture: Socket (Lampholder)

    Type 63295, bi-post ceramic base with brass inserts

  • Light Fixture: Lens (Condenser)

    4 accessory lenses included

  • Light Fixture: Mounting

    5/8" standard stud

  • HMI Ballast: Rating

    575 - 1200 watts, 90 - 260VAC

  • HMI Ballast: Cable

    50' Detachable 7 conductor head to ballast

  • Dimensions

    Light Fixture: 20.25x7.1x11" / 51.4x18x28 cm
    Ballast: 11.5x9x7" / 29.2x23x17.8cm
    Kit in case: 32.5x19x13.25" / 82.5x48.3x34cm

  • Weight

    Light Fixture: 26 lbs / 11.8 kg with cable
    Ballast: 17 lbs / 7.7 kg with cable
    Kit: 67 lbs / 30.4 kg

About Mole-Richardson Molepar 1200 Watt HMI One Light Kit

The Mole-Richardson Molepar 1200 Watt HMI One Light Kit is a highly efficient, compact source of daylight using a 1200 watt HMI single-ended globe (available separately). Without a lens, the Molepar 1200 will throw a beam of light of 640 footcandles 5.3 feet in diameter from 50 feet away. Add an HMI bulb and a light stand of your choice to complete this kit.

Mole-Richardson Molepar 1200 Watt HMI One Light Kit Features

  • Intuitive and Versatile: Visual and tactile focal indicators to determine lamp position and, when used with the interchangeable lenses, the field of light can be fine-tuned for optimum beam control
  • Hot Restrike: Allows restarting immediately after shutting down the light
  • Easy Access: The electronics have been isolated from the main aluminum housing and feature a swing-out trap door for easy access to the igniter and safety switch
  • Safe: Safety switch prevents fixture from turning on if the door to the fixture is open
  • Four Lens Set: Four lense assemblies from narrow spot to extra wide flood are included to alter the beam spread of the fixture
  • Light Shaping: The oval beam pattern created by the lenses may be rotated within the diffuser clips for vertical or horizontal beam orientation

Key Features

  • Intuitive & Versatile
  • Hot Restrike: Allows restarting immediately after shutting down the light
  • Easy Access
  • Safety switch prevents fixture from turning on if the door to the fixture is open
  • Four Lens Set
  • Oval beam pattern created by lenses may be rotated with diffuser clips

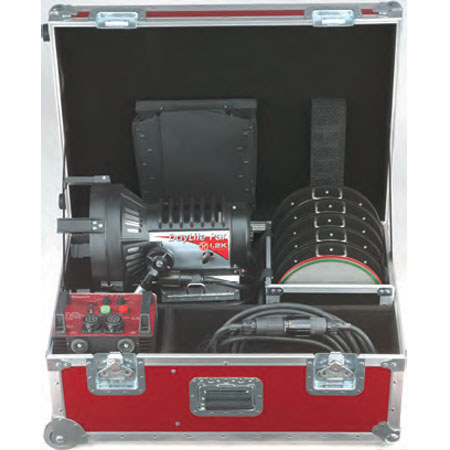

What's in the box:

  • Mole-Richardson 1200 Watt Molepar
  • Ballast Cable for 1.2K HMI Fresnel
  • Electronic Ballast for HMI Par 575/1200W
  • Very Narrow Lens Assembly for HMI 1.2K Par
  • Narrow Lens Assembly for HMI 1.2K Par
  • Medium Lens Assembly for HMI 1.2K Par
  • Wide Lens Assembly for HMI 1.2K Par
  • Diffuser Frame for Mole Junior
  • Scrim-Full Single
  • 10-1/8 " Scrim-Full Double
  • Scrim-Half Single Stainless Steel
  • 10-1/8 " Scrim-Half Double Stainless Steel
  • Scrim Bag for 8 " Junior
