Mole-Richardson 1.2Kw HMI PAR Pro Electronic Ballast Kit

SKU: MR663101P

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main construction material of the Mole Richardson 1.2Kw HMI Pro Kit?

The main construction material of the Mole Richardson 1.2Kw HMI Pro Kit is solid cast aluminum, which aids in improved ventilation and cooling.

What is the purpose of the Brytal Aluminum parabolic reflector in the Mole Richardson 1.2Kw HMI Pro Kit?

The Brytal Aluminum parabolic reflector in the Mole Richardson 1.2Kw HMI Pro Kit provides 96 square inches of reflective surface, ensuring optimal light distribution during shoots.

Is the Mole Richardson 1.2Kw HMI Pro Kit user-friendly?

Yes, the Mole Richardson 1.2Kw HMI Pro Kit is designed with user-friendly features. The electronics are isolated in a low-profile trough separate from the main housing, and there's a swing-out trap door for easy access to the igniter and safety switch.

Can I control the beam of light with the Mole Richardson 1.2Kw HMI Pro Kit?

Yes, the Mole Richardson 1.2Kw HMI Pro Kit allows for versatile light control. You can fine-tune the field of light for optimum beam control using the optional, interchangeable lenses.

What additional features does the Mole Richardson 1.2Kw HMI Pro Kit offer?

The Mole Richardson 1.2Kw HMI Pro Kit includes additional features such as a trough skid, a pass-through yoke, a locking, hinged front door, and a pig-tail style electrical input.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Mole-Richardson 1.2Kw HMI PAR Pro Electronic Ballast Kit Specifications

General

General

Jump to...
  • Lighting Type

    PAR, HMI Kit

  • Fixture Type

    PAR Lights

  • Mount

    5/8" Receiver

  • Cable

    50'

  • Material

    Aluminum

  • Protection

    Dust-Resistant (IP20)

  • Dimming

    Yes

  • Power Source

    AC

  • Watts

    12000

  • Voltage

    110 to 220 VAC

Physical Details

Jump to...
  • Dimensions

    20.25 x 11 x 7.1" / 51.4 x 28 x 18 cm (Fixture)11.1 x 8.7 x 6.8" / 28.3 x 22 x 17.2 cm (Power Supply/Controller)

  • Weight

    116 lb / 53 kg (Overall Kit)15.4 lb / 7 kg (Power Supply/Controller)26 lb / 11.8 kg (Fixture)

About Mole-Richardson 1.2Kw HMI PAR Pro Electronic Ballast Kit

When it comes to professional lighting solutions, the Mole Richardson 1.2Kw HMI Pro Kit stands out with its dimmable electronic ballast, 50-foot cable, barndoors, 24 x 32" Chimera Softbox, Five Lens Set, Scrims, and Gaffer Pack. This 1200 Watt DayLite PAR is meticulously designed to meet the demanding needs of motion picture, television, event, and ENG/EFP professionals across the globe.

Constructed from solid cast aluminum, this lighting kit boasts improved ventilation and cooling mechanisms, effectively eliminating unwanted spill light for a more controlled lighting environment. The Brytal Aluminum parabolic reflector incorporated into the design provides a generous 96 square inches of reflective surface, ensuring optimal light distribution.

The electronics of this lighting kit are cleverly isolated in a low-profile trough, separate from the main housing. This design feature includes a swing-out trap door, providing easy access to the igniter and safety switch, enhancing the user-friendly nature of the kit.

Drawing parallels with the Type 6641 2.5/4K DayLite Par, this fixture is equipped with visual and tactile focal indicators, allowing professionals to easily determine lamp position. The optional, interchangeable lenses can be used to fine-tune the field of light for optimum beam control, catering to a wide range of lighting requirements.

Additional features of this professional lighting kit include a trough skid, a pass-through yoke, a locking, hinged front door, and a pig-tail style electrical input. When fitted with a 1.2K HMI bulb and without a lens, this fixture can project a beam of light of 4000 footcandles 2.1' in diameter from a distance of 20'. The five included lenses can be mounted to alter the beam spread and adjust the light output, offering versatility in various shooting conditions.

Mole-Richardson 1.2Kw HMI PAR Pro Electronic Ballast Kit Features

  • Equipped with a safety screen
  • Spring-loaded fourth accessory clip and variable accessory clip positions located at either 90 or 45degree
  • Rear mounted On and Off push-button switches allow hot-restrike
  • A safety switch blocks power to bulb until front housing door is closed
  • Compatible with all existing 10.25" accessories
  • Dimmable to 50% of full power
  • Multi-Voltage - 120-220VAC, auto-sensing
  • Microprocessor control, constant power output
  • Instant start, ZVS technology
  • Scrims alter the intensity of the light
  • 50' Head-to-Ballast Cable provides easy control far from the fixture

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve stunning visuals with this 1.2kW HMI PAR light, perfect for film and TV production.
  • Enjoy flicker-free operation with the electronic ballast, ensuring smooth, professional footage.
  • This durable HMI kit includes multiple lenses for versatile lighting control, from narrow to wide.
  • Get precise lighting with the included four-leaf barndoor set, shaping light for creative effects.
  • The Mole-Richardson HMI PAR system offers high light output, ideal for demanding studio environments.
  • Easy to use and adjust, this HMI light features dimming capabilities for ultimate control on set.

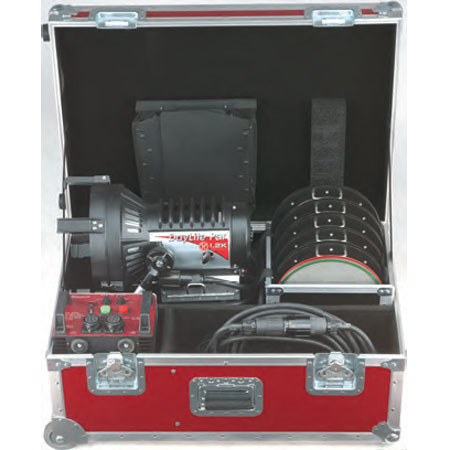

What's in the box:

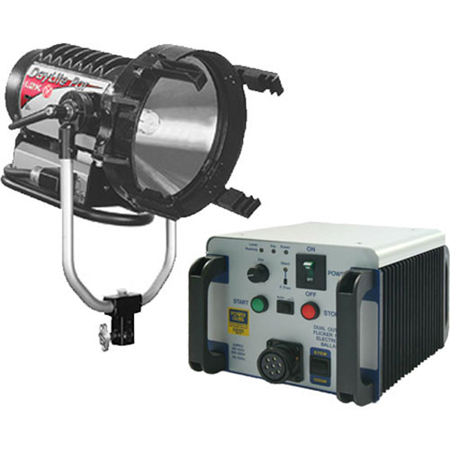

  • Mole-Richardson Molepar 1200 Watt HMI PAR
  • Ballast Cable for 1.2K HMI Fresnel (50')
  • Electronic Ballast for HMI Par 575/1200W
  • X-Wide Lens Assembly for HMI 1.2K Par
  • Narrow Lens Assembly for HMI 1.2K Par
  • Medium Lens Assembly for HMI 1.2K Par
  • Wide Lens Assembly for HMI 1.2K Par
  • Fresnel Lens Assembly for 1.2K HMI
  • Four Leaf Barndoor Set for HMI PAR 1.2K
  • Lens Box f(4)
  • Scrim-Full Single for Mole Par (See Specs for More Included Items)
