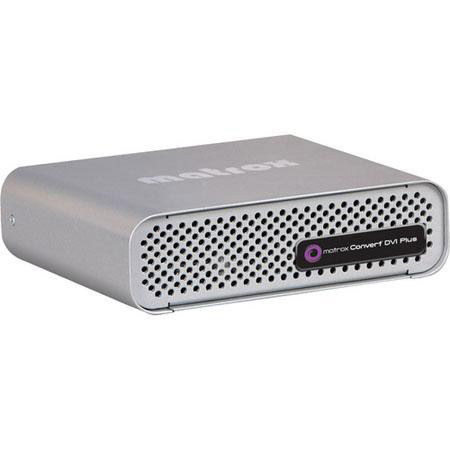

Matrox DVI Plus HD-SDI Scan Converter
See all Matrox items

Matrox DVI Plus HD-SDI Scan Converter, Cable, External Power Adapter and Cord, Y/C Video Adapter

SKU: MRCDVIP

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Matrox DVI Plus HD-SDI Scan Converter Specifications

  • Video standards

    NTSC, PAL, NTSC-EIAJ, 1080i, 720p

  • Regulatory compliance

    FCC Class A, CE Mark Class A, C-Tick Mark, VCCI; RoHS Directive 2002/95/EC

  • DVI input and output

    DVI-I (single-link) 29-pin female connector

  • Audio input

    1/8in stereo minijack

  • Genlock reference input

    SD analog black burst (bi-level) or HD tri-level sync
    BNC connector (75 Ohm), terminated
    Timing offset controls provided

  • SDTV S-Video and composite video output

    Frequency response: +/- 0.25 dB max to 5 MHz 2T pulse response: 0.5% max
    Diff. Gain and Diff. Phase: < 2%
    BNC connectors (75 Ohm)

  • SDTV analog component video output

    SMPTE/EBU N10 (PAL)
    Frequency response Y: +/- 0.25 dB max to 5 MHz
    Frequency response Pb, Pr: +/-0.2 dB max to 2 MHz
    Component channel delay: +/- 3 ns
    Component S/N (Y, Pb, Pr): > 54 dB, unified weighted
    BNC connectors (75 O)

  • SDTV SDI output

    24-bit, 48 kHz
    BNC connector (75 Ohm)
    Compliant with SMPTE 259M-C, SMPTE 272M

  • HDTV SDI output

    24-bit, 48 kHz
    Compliant with SMPTE 292M, SMPTE 299M
    BNC connector (75 Ohm)

  • HDTV analog component video output

    1080i 50, 1080i 59.94, 720p 59.94
    Compliant to EIA-770.3
    Frequency response Y: +/- 0.3 dB max to 28 MHz
    Frequency response Pb, Pr: +/- 0.4 dB max to 14 MHz
    Component channel delay: +/- 0.5 ns
    Component S/N (Y, Pb, Pr): > 57 dB, unified weighted
    BNC connectors (75 Ohm)

  • System Requirements

    Microsoft Windows 7 Home Premium, Professional or Ultimate (32 AND 64-bit), or Windows XP Professional (32-bit) with Service Pack 3

  • Ports

    USB 2.0

  • Dimensions (L x W x H)

    151mm x 161mm x 46mm (5.9 x 6.33 x 1.81 inches)

  • UPC Code

    630396240683

About Matrox DVI Plus HD-SDI Scan Converter

The Matrox DVI Plus HD-SDI Scan Converter allows broadcasters to embed the stereo audio input into the SDI output signal. It provides a progressive DVI-D input up to 1920x1200 and offers simultaneous analog/digital video output. Realtime upscaling and downscaling is possible with proper color space and aspect ratio conversion.

The SD analog black burst (bi-level) or HD trilevel genlock is available with timing offset controls. The DVI Plus HD-SDI Scan Converter offers region-of-interest support with flexible scaling, positioning and panning with realtime output update. Background color can be selected, such as super black and super white for downstream keying applications. It also has Proc Amp controls and consists of features such as anti-flicker filter, customizable presets, password protection and SD pixel aspect ratio compensation.

The DVI Plus HD-SDI Scan Converter has a hotkey-triggered output signal freeze/unfreeze. It can operate as a stand-alone device independent of a PC to deliver SDI and analog video.

Matrox DVI Plus HD-SDI Scan Converter Features

  • Progressive DVI-D input up to 1920 x 1200
  • Digital outputs: HD/SD SDI
  • Analog outputs: HD/SD analog component, S-Video and composite
  • SD analog black burst (bi-level) or HD tri-level genlock with timing offset controls
  • Simultaneous analog and digital video output
  • Stereo audio input can be embedded into the SDI output signal
  • Realtime hardware upscaling and downscaling with proper color space and aspect ratio conversion
  • Region-of-interest support including scaling, positioning and panning with realtime output update
  • Background color selection including super black and super white for downstream keying applications
  • Can operate as a stand-alone appliance
  • Advanced features such as an anti-flicker filter, customizable presets, password protection and SD pixel aspect ratio compensation
  • Proc amp controls
  • Hotkey-triggered output signal freeze/unfreeze

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Progressive DVI-D input up to 1920 x 1200
  • Digital outputs
  • HD/SD analog component, S-Video & composite
  • Simultaneous analog and digital video output
  • Can operate as a stand-alone appliance
  • Proc amp controls

What's in the box:

  • Matrox DVI Plus HD-SDI Scan Converter
  • MXO Cable DVI and System Audio Loop Through 1m
  • External AC-DC Adapter
  • Power Cord
  • Y/C Video Adapter
  • Matrox 3 Year Warranty
