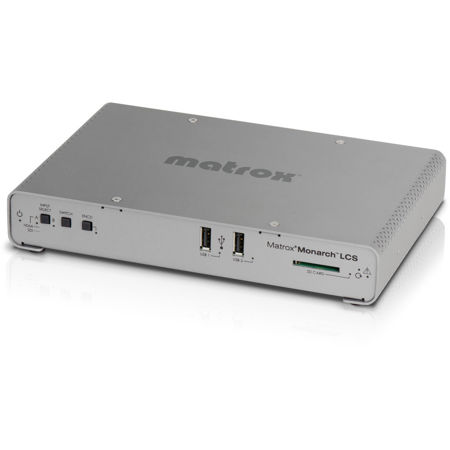

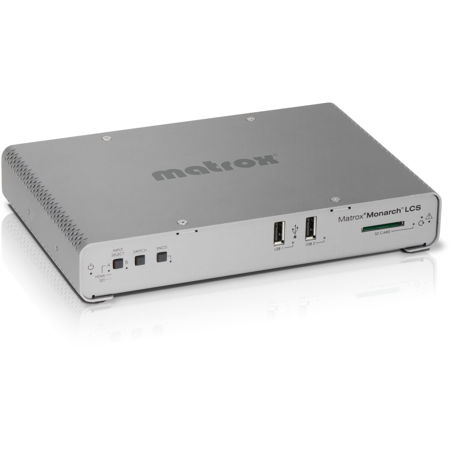

Matrox Monarch LCS Lecture Capture Appliance

SKU: MRMHLCSI MFR: MHLCS/I
Earn VIP Reward Points

Key Features

  • Capture lectures in high resolution with the Matrox Monarch LCS appliance.
  • Low latency streaming ensures real-time engagement for your live audience.
  • Easy setup for seamless integration with existing video equipment setup.
  • Broad compatibility with HDMI and SDI inputs for versatile capture options.
  • Stable streaming ensures uninterrupted content delivery using this device.
  • Portable design makes on-the-go lecture capture and streaming a breeze.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$109.99

3 Year

$179.99

4 Year

$233.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Matrox Monarch LCS Lecture Capture Appliance Specifications

  • Supported HDMI Video Input 1

    Progressive: 1920x1080 at 60/59.94/50/30/29.97/25 Frames per second; 1280x720 at 60/59.94/50 Frames per second
    Interlaced: 1920x1080i 29.97/25 Frames per second (Video Sources)

  • Supported HDMI Video Input 2

    Progressive: 1920x1080 at 60/50 Frames per second, 1280x720 at 60/50 Frames per second
    Interlaced: 1920x1080i 29.97/25 Frames per second (Computer Sources)

  • HDMI Video Output

    Preview output of video input signals. Preview output can be mapped from either SDI or HDMI input sources.
    Note that when input is an SD resolution, the HDMI preview output will show video window-boxed on an HD output.

  • Supported SDI Video Input

    Progressive: 1920x1080 at 60/59.94/50/30/29.97/25 Frames per second, 1280x720 at 60/59.94/50 Frames per second
    Interlaced: 1920x1080i at 29.97/25 Frames per second, 720x486i at 29.97 Frames per second, 720x576i at 25 Frames per second
    Compliant with SMPTE 259M/292M/424M (Level A) / 425M

  • SDI Video Output

    Preview output of video input signals. Preview output can be mapped from either SDI or HDMI input sources.

  • Audio Input

    Processes the first two channels of audio embedded in HDMI or SDI input signals
    Unbalanced analog stereo input via 1/8" (3.5mm) jack
    Line Level

  • Audio Output

    Pass-through of 8 channel of embedded audio channels in HDMI and SDI signals
    Unbalanced analog stereo output via 1/8" (3.5mm) jack-pass-through of input
    Line Level

  • Extra Function

    Video Input Format is Auto-Detected in SDI and HDMI
    All outputs are active regardless of audio and video input selection

  • Frame Synchronization

    The Monarch LCS contains frame synchronization circuitry designed to compensate for disruptions of the input signal. This circuitry is in place for both SDI and HDMI inputs. Streaming and recording operations will proceed cleanly with repeated or dropped frames

  • Resolutions

    Selectable encoding resolutions ranging from: 128x128 to 1920x1080

  • Bit Rates Ranges

    Single Encoder - Streaming mode: 16 Mbps
    Dual Encoder - Maximum of 8 Mbps for streaming channels
    Dual Encoder - Maximum of 10 Mbps for recording channels

  • Encode Frame Rates

    Encode frame rates selection includes: 60/50, 30/25 and 15/12.5
    Single Encoder - Maximum of 1080p60 fps
    Dual Encoder - Maximum of 720p60 fps or 1080p30 fps

  • Encoding Profiles

    Baseline, Main and High

  • Encoding Controls

    2.0, 3.0, 3.1, 4.0, 4.1 Level Support
    GOP Size
    Variable bit rate support
    Average max/min data rate controls
    Deblocking Filter

  • Standard

    AAC-LCS

  • Sample Frequency

    32, 44.1 and 48 kHz when digitized from an analog source

  • Channels

    2 channels Stereo (L/R)

  • Bit Rates

    Range from 32 kbps to 256 kbps
    Note that audio codec settings are applied to both encoders

  • Scaler

    High Quality multi-tap 10 bit Down Scaler and De-Interlacer
    Available to both streaming and recording operations

  • File Type

    Industry Standard MP4 and MOV files with two channels of embedded AAC audio

  • Recording Lengths

    Maximum file length of 300 minutes-irrespective of storage type used. File splitting feature allows a user to record continuously for long periods by defining file segment sizes. The Monarch LCS will create these sequential file segments over the course of the recording operation without losing a single frame of video. File segment can have a length of 1 to 300 minutes

  • Connector

    RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing

  • Protocols

    RTMP, RTSP/RTP
    IPv4 Support
    Unicast and Multi Unicast (number of clients may vary from 3 to 10)

  • Physical Interface

    On Device push buttons for independent streaming and recording with Start/Stop control

  • 2 x USB 2.0

    Support for NTFS (3.1) and FAT32 file system

  • SD card Slot

    Supports SD and SDHC cards. Only NTFS formatted SDXC cards are supported. (Class 10 highly recommended)

  • Network Mapped Drive

    Support for writing to shared folders in computers found on a network using Windows Share protocols (suitable for Windows system) as well as NFS protocols (suitable for Mac and Linux systems)

  • Power

    Input: 9-24 volts
    Connector: Din4
    Total Power Consumption: 20-30 watts (42 max)

  • Power Supply

    Line Voltage: 100-240 VAC
    Frequency: 50-60 Hz
    Input: External AC/DC adapter - IEC320-C14
    DIN4 Locking Power Connector

  • Operating temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Storage temperature

    -4 to 75 deg. C / 25 to 167 deg. F

  • Maximum altitude for operation

    3000m / 9842.40'

  • Maximum altitude for transport

    12000m / 39369.60'

  • Operating humidity

    20 to 80% relative humidity (non-condensing)

  • Storage humidity

    5 to 95% relative humidity (non-condensing)

  • Regulatory

    EMI: FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI
    Power-supply Safety: UL/CUL(UL60950-1), TUV-GS(EN60950-1), T-LICENSE(BS EN60950-1), CCC(GB4943.1-2011), PSE(J60950), SAA(AS/NZS60950-1), KC-MARK(K60950), S-MARK(IEC60950-1)
    RoHS Directive 2002/95/EC

  • Dimensions

    Length (shell): 5.6" / 14.22cm
    Length (shell + BNCs): 6"(15.3cm)
    Width: 8.5" / 21.59cm
    Height (shell): 1.4" / 3.56cm
    Height (Shell + pads): 1.5" / 3.81cm

  • Weight

    1.3lbs / 0.59kg

  • UPC Code

    790750248950

About Matrox Monarch LCS Lecture Capture Appliance

Are you seeking an advanced and user-friendly solution for capturing high-quality lectures and presentations Look no further than the Monarch LCS Lecture Capture Appliance. This innovative device is a standalone network appliance that IT administrators will appreciate for its simplicity in setup and seamless integration with any open Video Management System (VMS) or Lecture Management System (LMS).

The Monarch LCS empowers you to effortlessly create profiles for live streaming and recording lectures by combining camera and presentation material from both SDI and HDMI sources. Its versatile H.264 encoding capabilities mean that once it's configured, operation is as simple as the push of a button, making it accessible to users of all skill levels.

This durable appliance offers a variety of operating modes to suit any presentation style. Whether you prefer Picture-in-Picture, Side-by-Side, or wish to dynamically switch inputs with the Switcher mode, the Monarch LCS adapts to your needs with minimal setup time. It can be configured to capture and deliver content in multiple appealing layouts, enhancing the educational experience.

Viewer engagement is taken to the next level with the Isolated mode, which provides two independent video files or streams. When paired with a compatible third-party player, viewers can choose their preferred layout, enjoying synchronized streaming or recording that maintains perfect audio and video alignment.

Ease of operation is a hallmark of the Matrox Monarch LCS. It can be controlled and configured via the Monarch LCS Command Center from any networked device with a web browser. The intuitive interface includes one-click operation and preset streaming and recording parameters, which can be customized and saved as unique profiles for quick recall by different users.

Integration with existing network environments is straightforward, thanks to the Monarch LCS's design. It supports third-party asset management solutions and features a scheduler that works with open-source iCal software, enabling effortless schedule creation and importation.

Uncompromising in quality, the Monarch LCS shares up to 20 Mb/s of encoding capacity across two channels, each with individual bitrate/quality settings. Its powerful scaling, deinterlacing, and noise reduction engines ensure that only the highest quality images are encoded, with support for 1080p30 resolutions when needed.

The dual encoder offers multiple destination options for streaming or recording, with support for MOV or MP4 file formats and storage on various media, including local USB drives, SD cards, or network-mapped drives. For streaming, it utilizes RTMP or RTSP protocols to deliver live content to media servers or cloud-based CDNs.

Flexibility is key, and the Monarch LCS supports productions with two HDMI video sources or one SDI and one HDMI source, with the choice of embedded or analog audio. Its frame synchronization feature ensures that all inputs are perfectly timed before encoding, providing a seamless viewing experience.

Live production preview output is available through both SDI and HDMI outputs, allowing for in-house projections and content previews. Remote management is made easy with the Matrox Utils application, which facilitates device scanning, firmware updates, and reboots.

For those requiring a customized control experience, the Monarch LCS offers versatile API tools for integration into various environments, and it is compatible with Crestron control systems for easy incorporation into existing setups.

Designed with practicality in mind, the Monarch LCS features front-facing storage ports and one-touch buttons, with all connectors located at the back, including a locking power connector. Its robust design allows for desktop or rack placement, with a 1RU tray accommodating up to two units.

In summary, the Monarch LCS Lecture Capture Appliance is the perfect blend of advanced technology, user-friendly operation, and durable construction, making it the ideal choice for educational institutions and professionals seeking a high-quality, reliable lecture capture solution.

Matrox Monarch LCS Lecture Capture Appliance Features

  • Advanced lecture capture appliance with HDMI and SDI inputs for versatile connectivity
  • User-friendly operation with one-click streaming and recording via Monarch LCS Command Center
  • Innovative dual H.264 encoding for high-quality video at resolutions up to 1080p30
  • Flexible streaming and recording options with MOV/MP4 formats and multiple destination outputs
  • Durable design with robust front-facing storage ports and secure back connectors for desktop or rack placement
  • Seamless integration with open VMS/LMS systems and compatibility with Crestron control systems

Key Features

  • Capture lectures in high resolution with the Matrox Monarch LCS appliance.
  • Low latency streaming ensures real-time engagement for your live audience.
  • Easy setup for seamless integration with existing video equipment setup.
  • Broad compatibility with HDMI and SDI inputs for versatile capture options.
  • Stable streaming ensures uninterrupted content delivery using this device.
  • Portable design makes on-the-go lecture capture and streaming a breeze.

What's in the box:

  • Matrox Monarch LCS Lecture Capture Appliance
  • Monarch LCS External Power Supply
  • IEC320-C14 Power Cords
  • Matrox 2 Year Warranty
