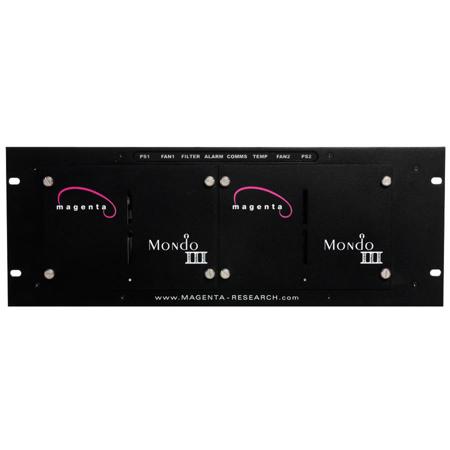

Magenta Research Mondo MatriX III 4U 32x16 Switch, 1 Frame

SKU: MRMM32X16 MFR: 222R3001-32X16
Earn VIP Reward Points

Key Features

  • Seamless video switching with the Mondo MatriX III, offering superior performance.
  • Achieve high-quality video distribution across multiple displays using this reliable switcher.
  • Enjoy easy setup and control with RS-232/RS-422, perfect for any AV setup.
  • This video switcher supports RGBHV, Component, Y/C, and Composite video signals.
  • Scale your system effortlessly with a maximum configuration of 256x512 for future growth.
  • Ensure reliable connection with built-in extension capabilities, simplifying your setup.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magenta Research Mondo Matrix III Specifications

  • Switching Capability

    Video, Audio and serial

  • Extension Capability

    Built-in (50% of extension system)

  • Connectors

    1x RJ-45 per I/O

  • Maximum Configuration

    256x512

  • Upgradability

    Field Upgradable

  • Configuration/Frame

    32x16

  • Video Input

    100Ohms balanced, I-V p-p

  • Dynamic Headroom

    >3dB

  • Coupling & Gain

    DC, unity gain

  • Video Signal Type

    RGBHV, Component, Y/C, Composite

  • Inputs/4U Frame

    16xN (max 64) RJ-45 Female

  • Loop Out

    16xN (max 64) RJ-45 Female

  • Outputs/4U Frame

    16 RJ-45 Female

  • Audio Signals

    MultiView Component Dependent

  • Control

    RS-232/RS-422

  • Switch Control Interface

    10-pin Phoenix

  • Aux Serial Ports

    8x DB9 (optional)

  • Network Interface

    RJ-45 Female (optional)

  • Rackmount

    Standard 4U, 19" EIA

  • Enclosure

    Front panel powder coat
    Chassis: Passive aluminum

  • Power Input

    90 to 264V/50 to 60Hz, 150W max

  • Switch Speed

    50ns from command recognition

  • Vibration

    ISTA/NSTA IA in Carton

  • Compliance

    CE, FCC, Class A, Safety EN60950, RoHS

  • Humidity

    10 to 90% non-condensing

  • Temperature

    Operating: 32 to 104 deg. F/ 0 to 40 deg. C
    Storage: -40 to 158 deg. F / -40 to 70 deg. C

  • Dimensions (H x W x D)

    6.7 x 19 x 10.5" / 170.18 x 482.6 x 266.7mm

  • Weight

    16lbs / 7.26kg (Fully Populated)

About Magenta Research Mondo Matrix III

Introducing Magenta's Mondo Matrix III
A full-matrix switching platform capable of switching and extending hi-definition video, stereo audio and addrresable duplex serial signals in one switching platform.

Building on the incredible success of the Mondo Matrix II, Magenta's Mondo Matrix III redefines the standard for UTP switching and extension by adding optional addressable duplex capability and a variety of redundancy and performance improvements. The new addressable duplex serial capability enables digital signage applications to collect individual display data and metrics in addition to independent control over each display. Like its predecessor, the field upgradable Mondo III also futu More

• Full matrix switching and UTP extension of HD-video, stereo audio and serial signals
• -SAP option supports addressable duplex serial through a switch
• Audio and serial signals can be switched independently of video
• Scalable and field upgradable from 16x16 to 256x512
• Compatible with all MultiView-SAP transmitters, receivers and distribution amplifiers
• Enables extension of 1920x1200 resolution video from 1 to 2000ft/609m1
• Option to add up to 8 serial input ports (-SAP version only)
• 64x16 support in a 4U Chassis uses significantly lower rack-space than RGB co-axial switchers

Save Equipment and Labor Cost with UTP Switching
The Mondo III UTP switching platform delivers significant advantages in functionally, cost, power consumption and installation complexity over BNC-based RGB switches.

Fully Compatible with Multiview -SAP Series
With built in support for UTP extension, the Mondo III, combined with Magenta's MultiView-SAP transmitters and receivers, reduce the extension equipment requirements by 50% and enables extension of HD-quality video, stereo audio and addressable duplex serial signals over an unsurpassed range of 2000ft/ 609m. Two-way serial functionality is retained even when daisy chaining receivers off a Mondo III -SAP output!

Protect Your Investment
Mondo III delivers a modulator platform which is scalable from 16x16 to an unmatched switching capacity of 256x512. It also future-proofs your investment by allowing for additional inputs and outputs to be added in the field in increments of 16. With the Mondo III, you can minimize your capital expenditure to today's needs while ensuring cost-effective upgradability for the future.

Key Features

  • Seamless video switching with the Mondo MatriX III, offering superior performance.
  • Achieve high-quality video distribution across multiple displays using this reliable switcher.
  • Enjoy easy setup and control with RS-232/RS-422, perfect for any AV setup.
  • This video switcher supports RGBHV, Component, Y/C, and Composite video signals.
  • Scale your system effortlessly with a maximum configuration of 256x512 for future growth.
  • Ensure reliable connection with built-in extension capabilities, simplifying your setup.

What's in the box:

  • Magenta Research Mondo MatriX III 4U 32x16 Switch
  • Magenta Research 3 Year Warranty
