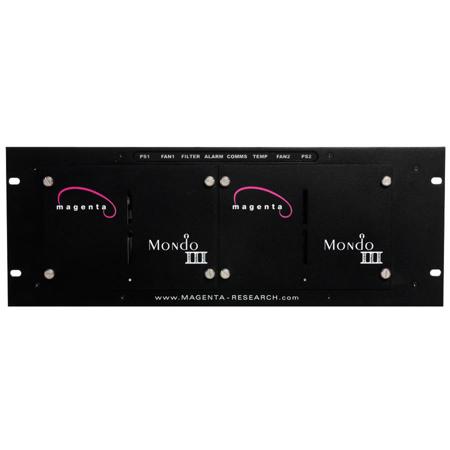

Magenta Research Mondo III 8U 32x32 Full-Matrix UTP Switch, 2 Frames

SKU: MRMM32X32 MFR: 222R3001-32X32
Earn VIP Reward Points

Key Features

  • Seamless video switching with this 32x32 full-matrix UTP switch for professional A/V setups.
  • Enjoy reliable connection with built-in extension capabilities, simplifying complex installations.
  • High resolution video signal support including RGBHV, Component, Y/C, and Composite formats.
  • Easily manage your video distribution system via RS-232/RS-422 control interfaces.
  • This affordable price video switch is field upgradable, ensuring long-term value and adaptability.
  • Low latency switching speed at 50ns guarantees smooth transitions for live video applications.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Magenta Research Mondo Matrix III Specifications

  • Switching Capability

    Video, Audio and serial

  • Extension Capability

    Built-in (50% of extension system)

  • Connectors

    1x RJ-45 per I/O

  • Maximum Configuration

    256x512

  • Upgradability

    Field Upgradable

  • Configuration/Frame

    32x32

  • Video Input

    100Ohms balanced, I-V p-p

  • Dynamic Headroom

    >3dB

  • Coupling & Gain

    DC, unity gain

  • Video Signal Type

    RGBHV, Component, Y/C, Composite

  • Inputs/4U Frame

    16xN (max 64) RJ-45 Female

  • Loop Out

    16xN (max 64) RJ-45 Female

  • Outputs/4U Frame

    16 RJ-45 Female

  • Audio Signals

    MultiView Component Dependent

  • Control

    RS-232/RS-422

  • Switch Control Interface

    10-pin Phoenix

  • Aux Serial Ports

    8x DB9 (optional)

  • Network Interface

    RJ-45 Female (optional)

  • Rackmount

    Standard 4U, 19" EIA

  • Enclosure

    Front panel powder coat
    Chassis: Passive aluminum

  • Power Input

    90 to 264V/50 to 60Hz, 150W max

  • Switch Speed

    50ns from command recognition

  • Vibration

    ISTA/NSTA IA in Carton

  • Compliance

    CE, FCC, Class A, Safety EN60950, RoHS

  • Humidity

    10 to 90% non-condensing

  • Temperature

    Operating: 32 to 104 deg. F/ 0 to 40 deg. C
    Storage: -40 to 158 deg. F / -40 to 70 deg. C

About Magenta Research Mondo Matrix III

Under the banner of Magenta Research's innovative technology, the Mondo III 8U 32x32 Full-Matrix UTP Switch emerges as a cutting-edge solution for professional audio and video applications. This advanced switching platform is engineered to seamlessly switch and extend high-definition video, stereo audio, and addressable duplex serial signals, all within a single, robust system.

Crafted with durability and high-quality performance in mind, the Mondo III builds upon the incredible success of its predecessor, the Mondo Matrix II, by introducing optional addressable duplex capabilities alongside a suite of redundancy and performance enhancements. The addition of addressable duplex serial functionality is particularly beneficial for digital signage applications, enabling the collection of individual display data and metrics while maintaining independent control over each display.

The Mondo III is not only reliable but also designed for ease of use and configuration. It supports a user-friendly interface and is compatible with a wide range of networking protocols. The switch can be programmed and controlled via the onboard touch-screen, Windows HyperTerminal, Magenta's Mondo Matrix Control Software, or through third-party control systems such as AMX or Crestron.

This innovative switch is future-proof, allowing for the addition of inputs and outputs in increments of 16, supporting a maximum configuration of 256x512. Its compatibility with all MultiView products enables the extension of 1920x1200 resolution video, stereo audio, and serial signals over an impressive distance of up to 2000ft/609m.

The Mondo III also introduces the Mondo Direct option, which allows for the integration of video inputs directly into the switch, eliminating the need for separate MultiView transmitters. This feature, along with the switch's full compatibility with the previous Mondo Matrix, offers a host of upgrades and additional features at no extra cost.

Operators will appreciate the new front-panel indicator lights for a quick status check on the unit's power supplies, fans, filter, and temperature. The addition of a replaceable air filter, two DB9 serial connections, true redundant power supplies, and a new backlit 2x16 character LCD further aid in configuration and diagnostics.

The Mondo III UTP switching platform stands out by delivering significant functional advantages, cost savings, reduced power consumption, and simplified installation compared to traditional BNC-based RGB switches. When combined with Magenta's MultiView-SAP transmitters and receivers, the Mondo III reduces extension equipment requirements by 50% and ensures the extension of HD-quality video, stereo audio, and addressable duplex serial signals over an unmatched range.

Investing in the Mondo III means investing in a scalable, modulator platform that not only meets today's needs but also ensures cost-effective upgradability for the future. With its ability to scale from 16x16 to an impressive 256x512 switching capacity, the Mondo III is the epitome of a smart, long-term investment for any large-scale networking setup requiring a durable, high-quality, and advanced full-matrix UTP switch.

Magenta Research Mondo Matrix III Features

  • Advanced full-matrix UTP switch designed for professional audio and video applications
  • High-definition video, stereo audio, and addressable duplex serial signal extension
  • User-friendly interface compatible with various networking protocols
  • Future-proof design allows for addition of inputs and outputs in increments of 16
  • Mondo Direct option for direct integration of video inputs into the switch
  • Front-panel indicator lights and backlit 2x16 character LCD for easy configuration and diagnostics

Key Features

  • Seamless video switching with this 32x32 full-matrix UTP switch for professional A/V setups.
  • Enjoy reliable connection with built-in extension capabilities, simplifying complex installations.
  • High resolution video signal support including RGBHV, Component, Y/C, and Composite formats.
  • Easily manage your video distribution system via RS-232/RS-422 control interfaces.
  • This affordable price video switch is field upgradable, ensuring long-term value and adaptability.
  • Low latency switching speed at 50ns guarantees smooth transitions for live video applications.

What's in the box:

  • Magenta Research Mondo III 8U 32x32 Full-Matrix UTP Switch
  • Magenta Research 3 Year Warranty
